Full Size Printed Peanut Scale Plans Andreason BA-4B all seem to look right and fly right also.

$7.95


This listing is for Full Size Printed Plans

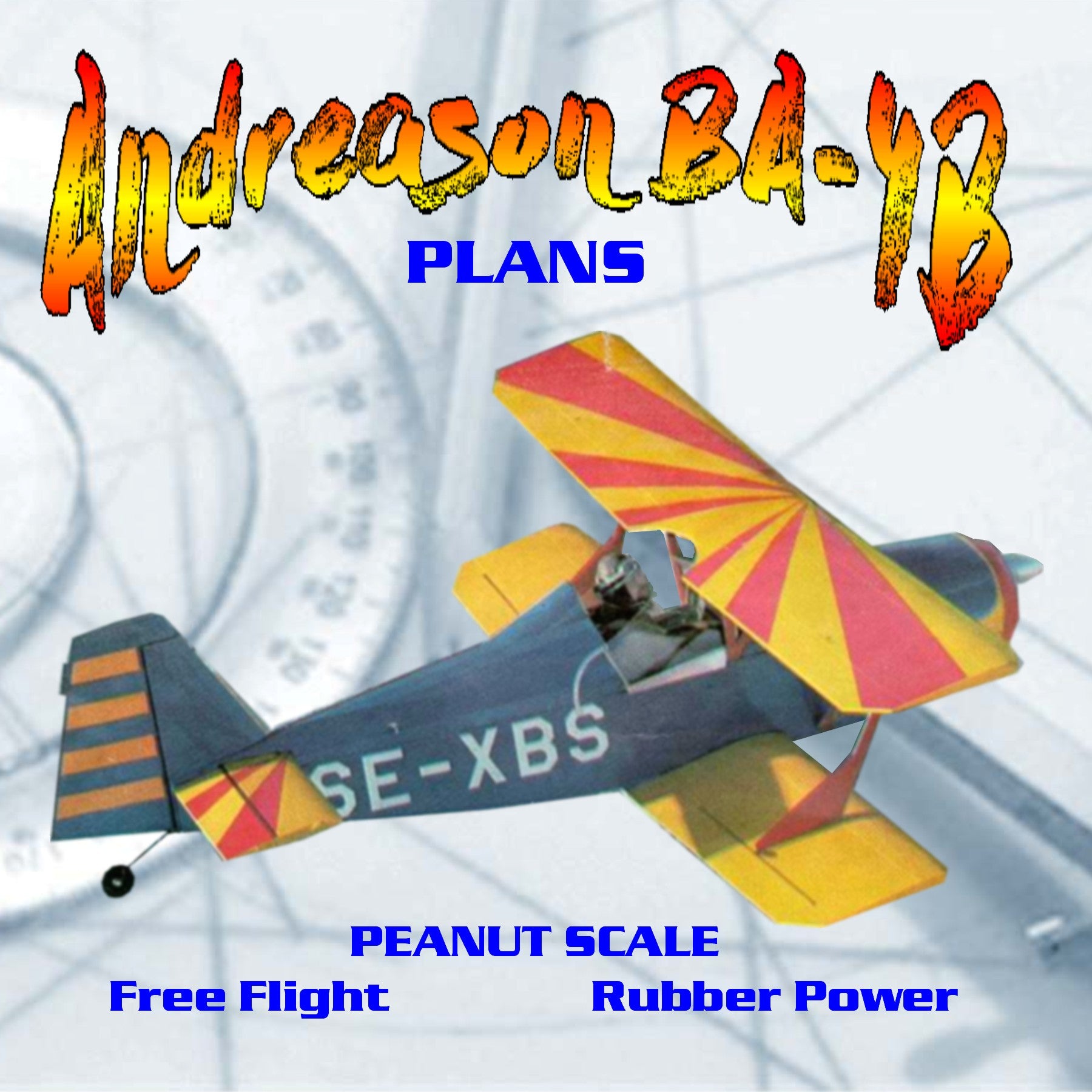

Andreason BA-4B

Bjorne Andreason's airplanes all seem to look right and fly right also.

One Full size Printed plan on sheet 11” x 17”

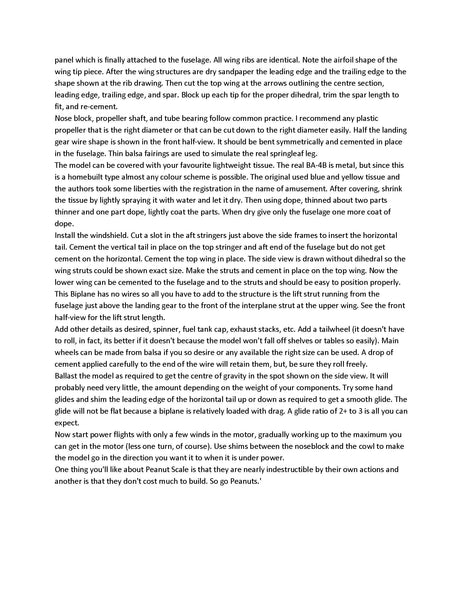

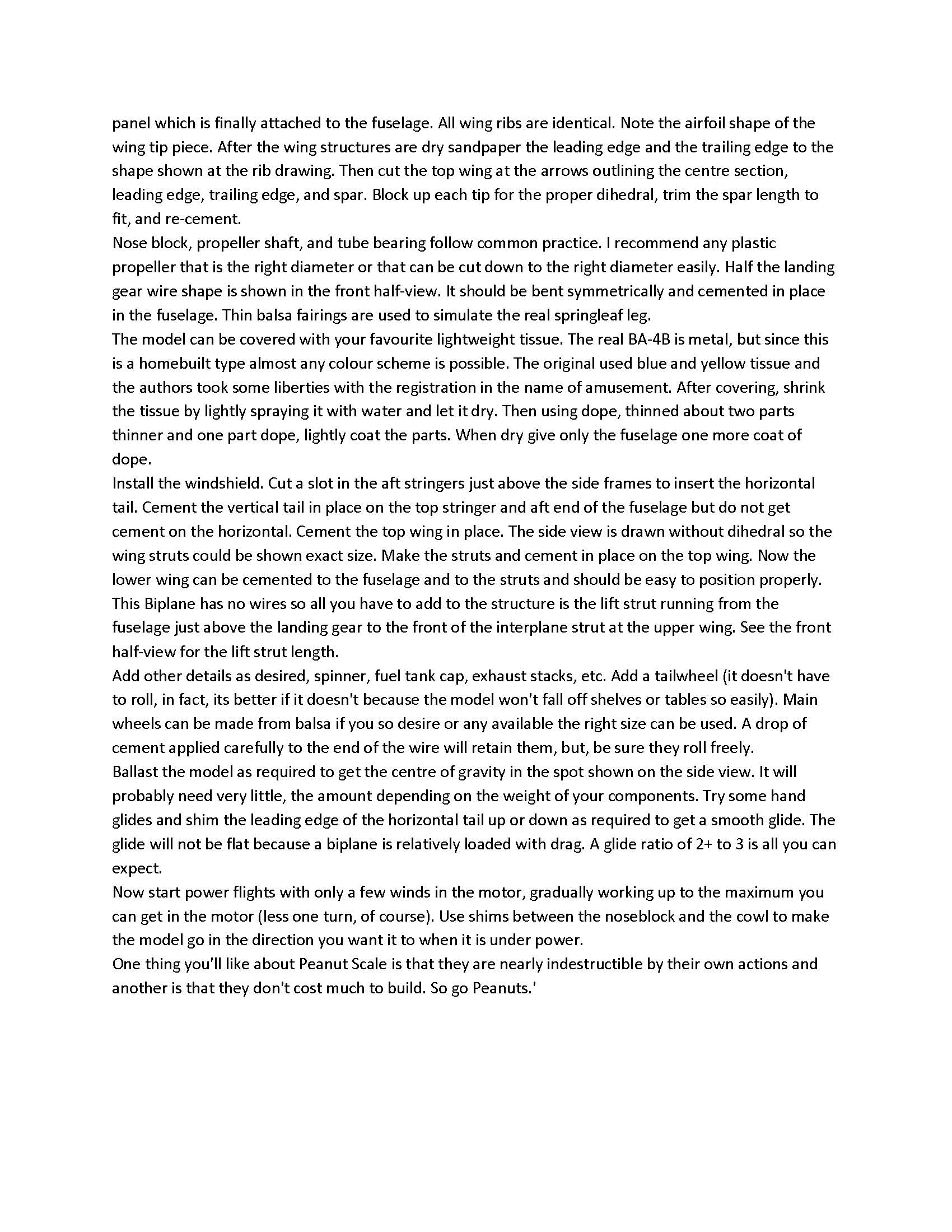

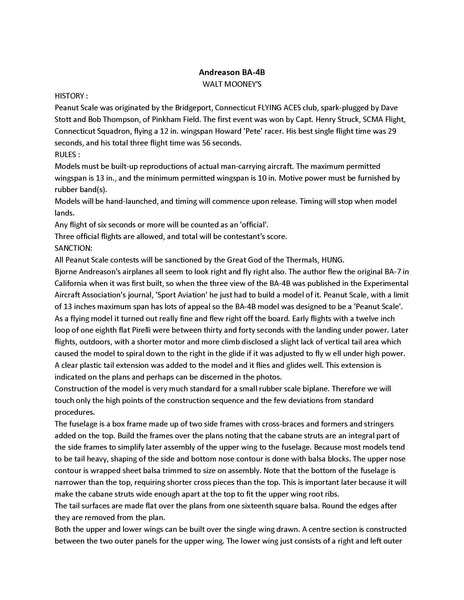

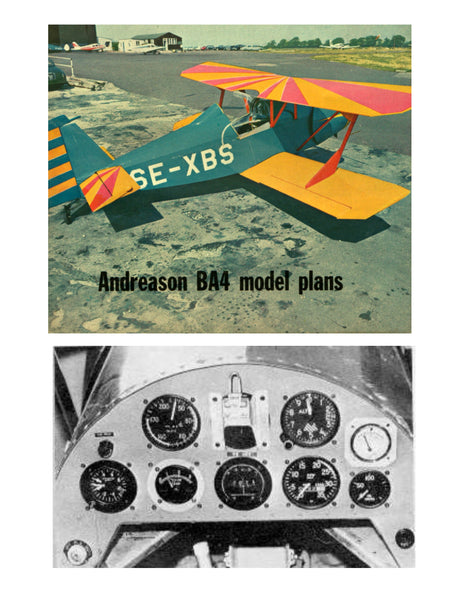

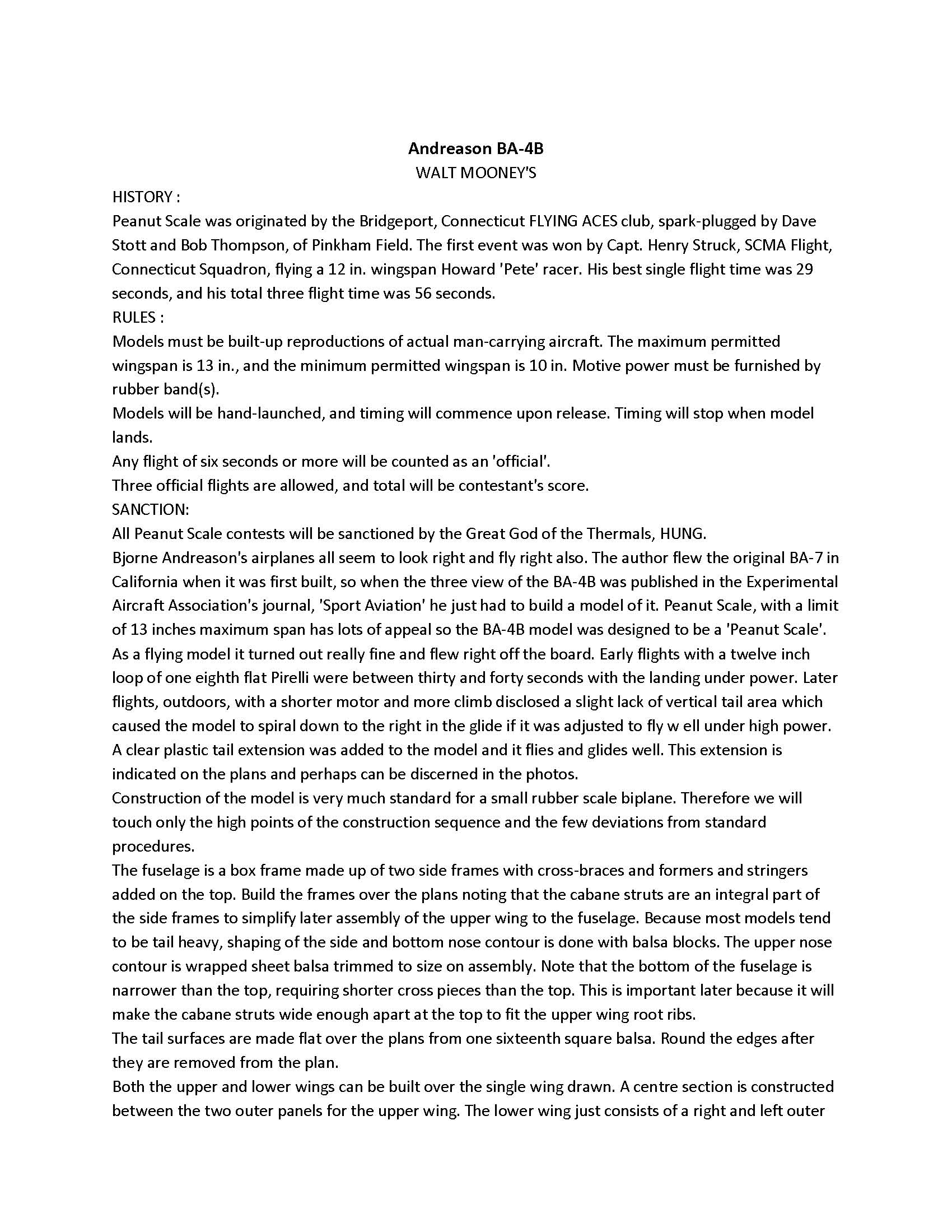

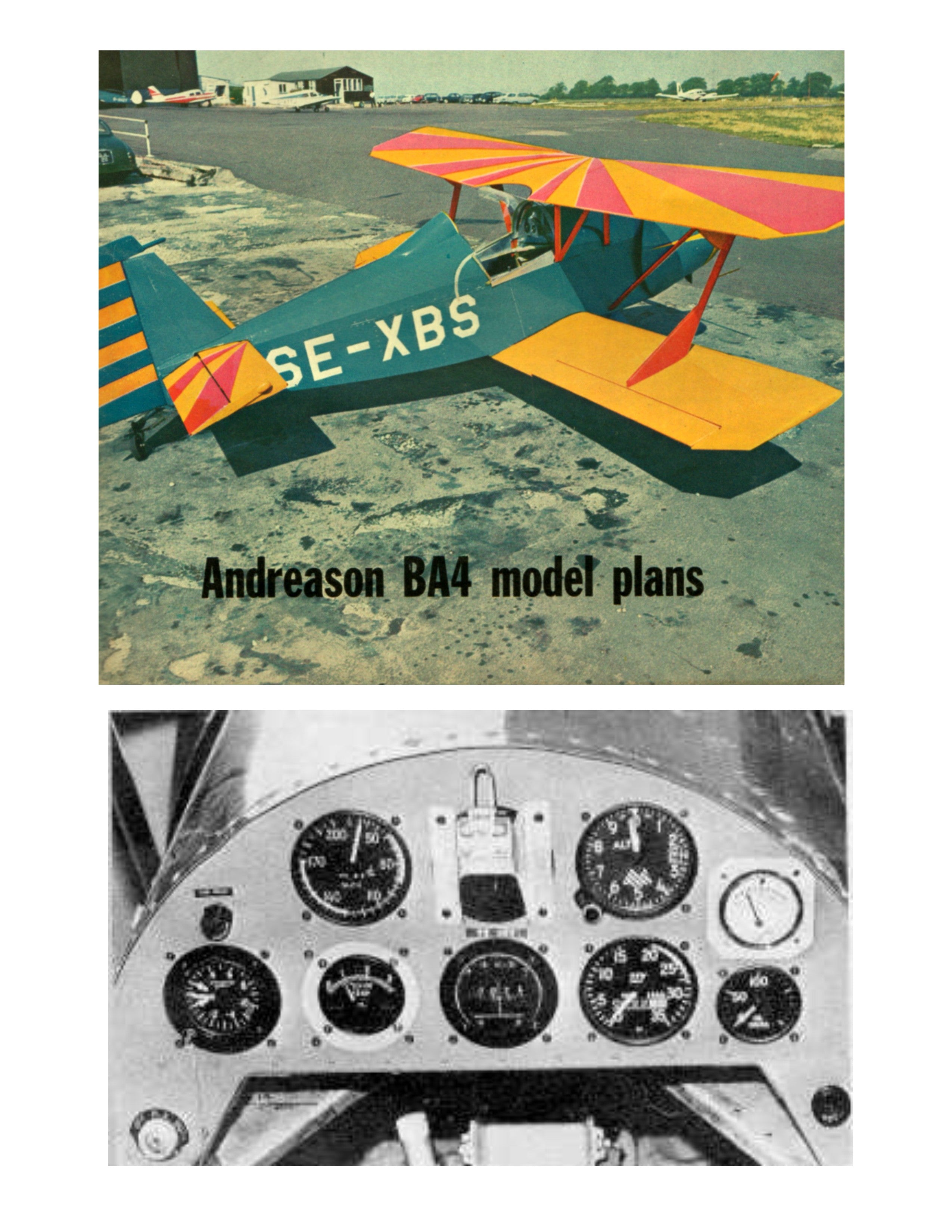

Four Pages of notes and photos

WALT MOONEY'S

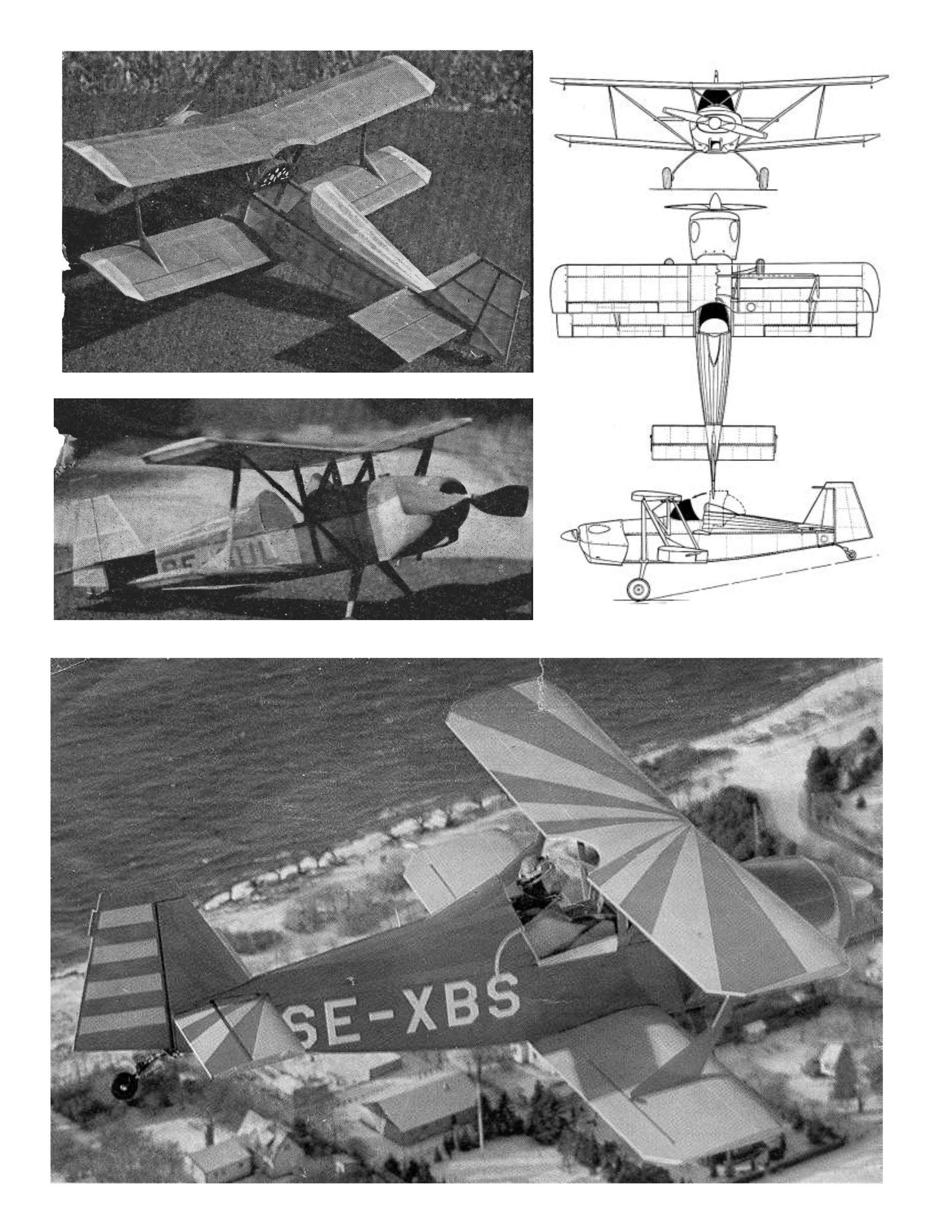

Bjorne Andreason's airplanes all seem to look right and fly right also. The author flew the original BA-7 in California when it was first built, so when the three view of the BA-4B was published in the Experimental Aircraft Association's journal, 'Sport Aviation' he just had to build a model of it. Peanut Scale, with a limit of 13 inches maximum span has lots of appeal so the BA-4B model was designed to be a 'Peanut Scale'. As a flying model it turned out really fine and flew right off the board. Early flights with a twelve inch loop of one eighth flat Pirelli were between thirty and forty seconds with the landing under power. Later flights, outdoors, with a shorter motor and more climb disclosed a slight lack of vertical tail area which caused the model to spiral down to the right in the glide if it was adjusted to fly w ell under high power. A clear plastic tail extension was added to the model and it flies and glides well. This extension is indicated on the plans and perhaps can be discerned in the photos.

Thank you for your interest
