Full Size Printed Plan 1957 Free flight Wingspan 37" 1/2A "SWAT" no difficulties should arise in the construction.
Regular priceSale price
Unit price/ per
Full Size Printed Plan & Building Notes
No materials. Plan only
Full size Printed Plan on a 44” x 32” SHEET

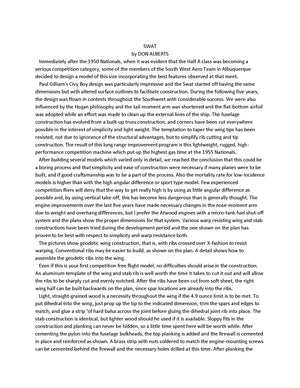

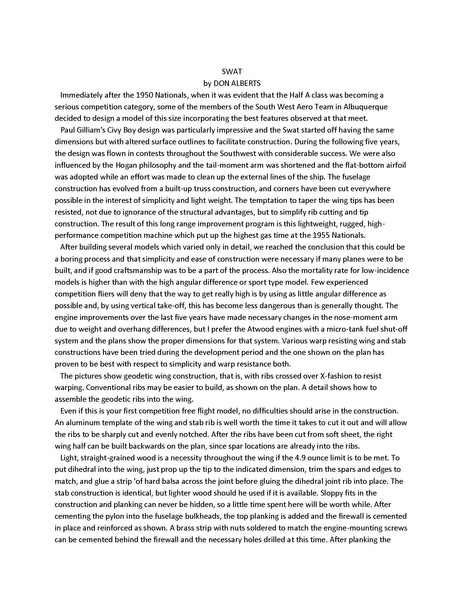

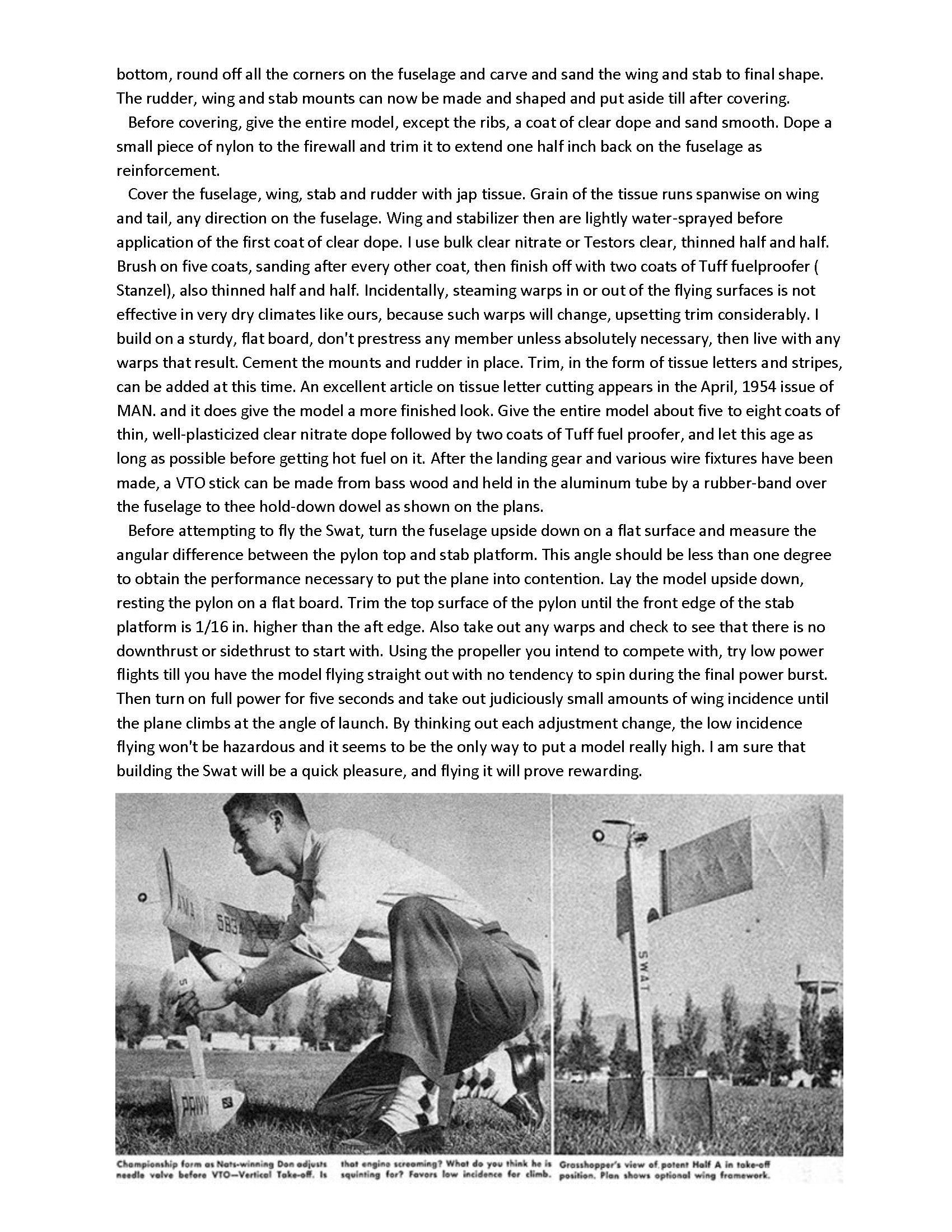

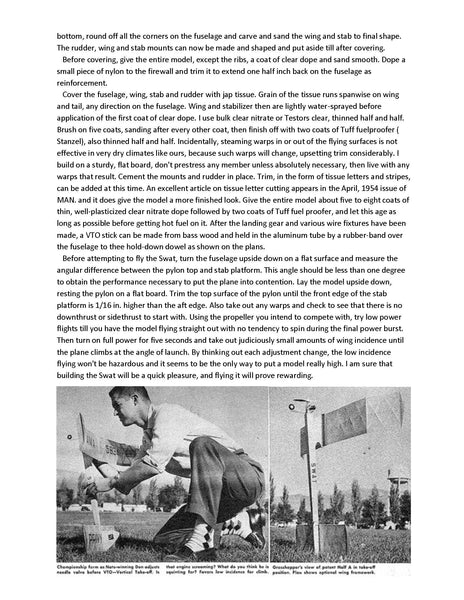

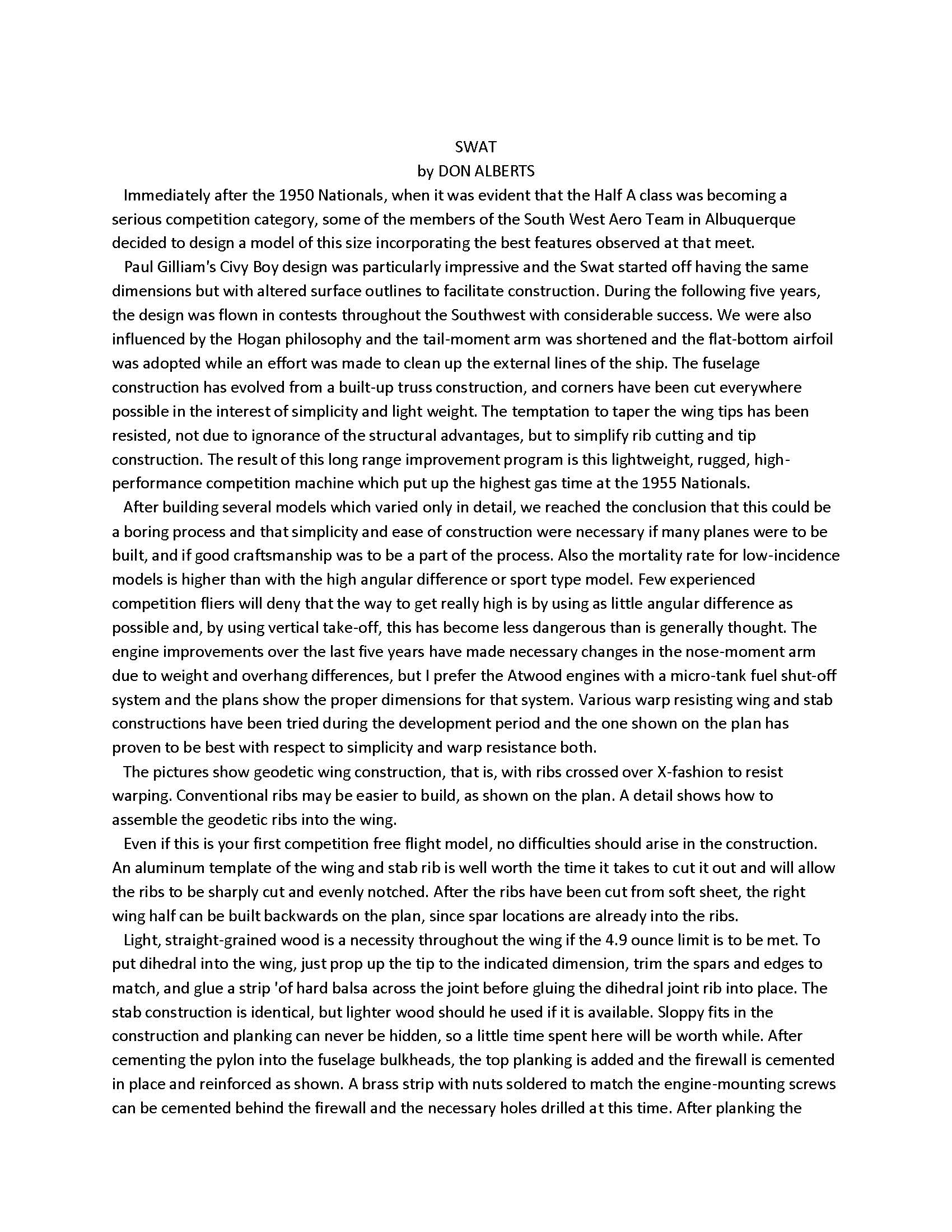

Three Pages of building notes and photos
Engine .049 to .051.
by DON ALBERTS
I am sure that building the Swat will be a quick pleasure, and flying it will prove rewarding.
Even if this is your first competition free flight model, no difficulties should arise in the construction. An aluminum template of the wing and stab rib is well worth the time it takes to cut it out and will allow the ribs to be sharply cut and evenly notched. After the ribs have been cut from soft sheet, the right wing half can be built backwards on the plan, since spar locations are already into the ribs.
