Full Size Printed Plan & Building Notes CL I/2A Combat *MONOBOOM* W/S 34" Engine 1/2 A
Full Size Printed Plan & Building Notes
No material plans only
For a CL I/2A Combat model, this one may not be the easiest to build, but it might just be the best. Follow the author's advice in prepping the TD power plant, and you'll have a honker.
FULL SIZE PLANS PRINTED ON a SHEET 37" x 24"

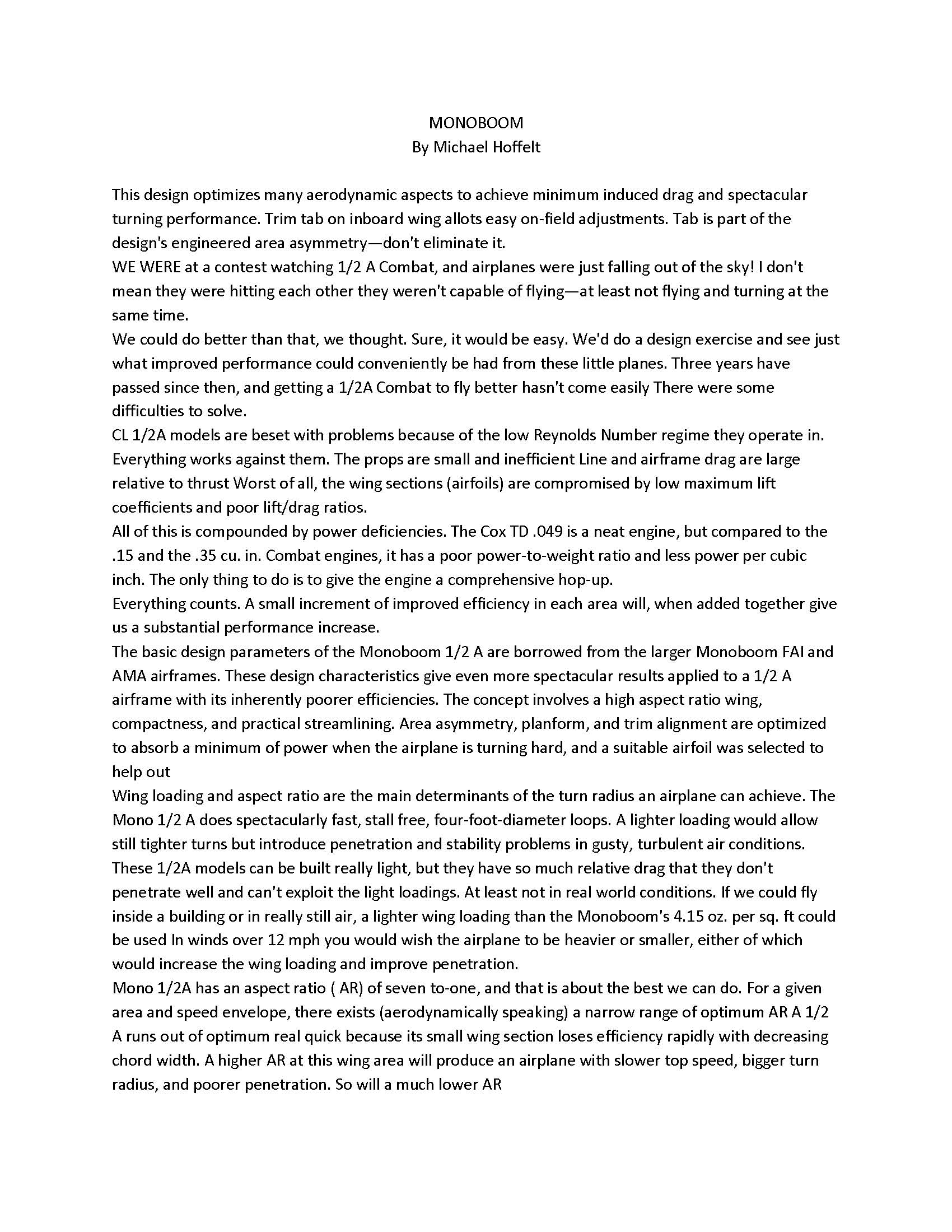

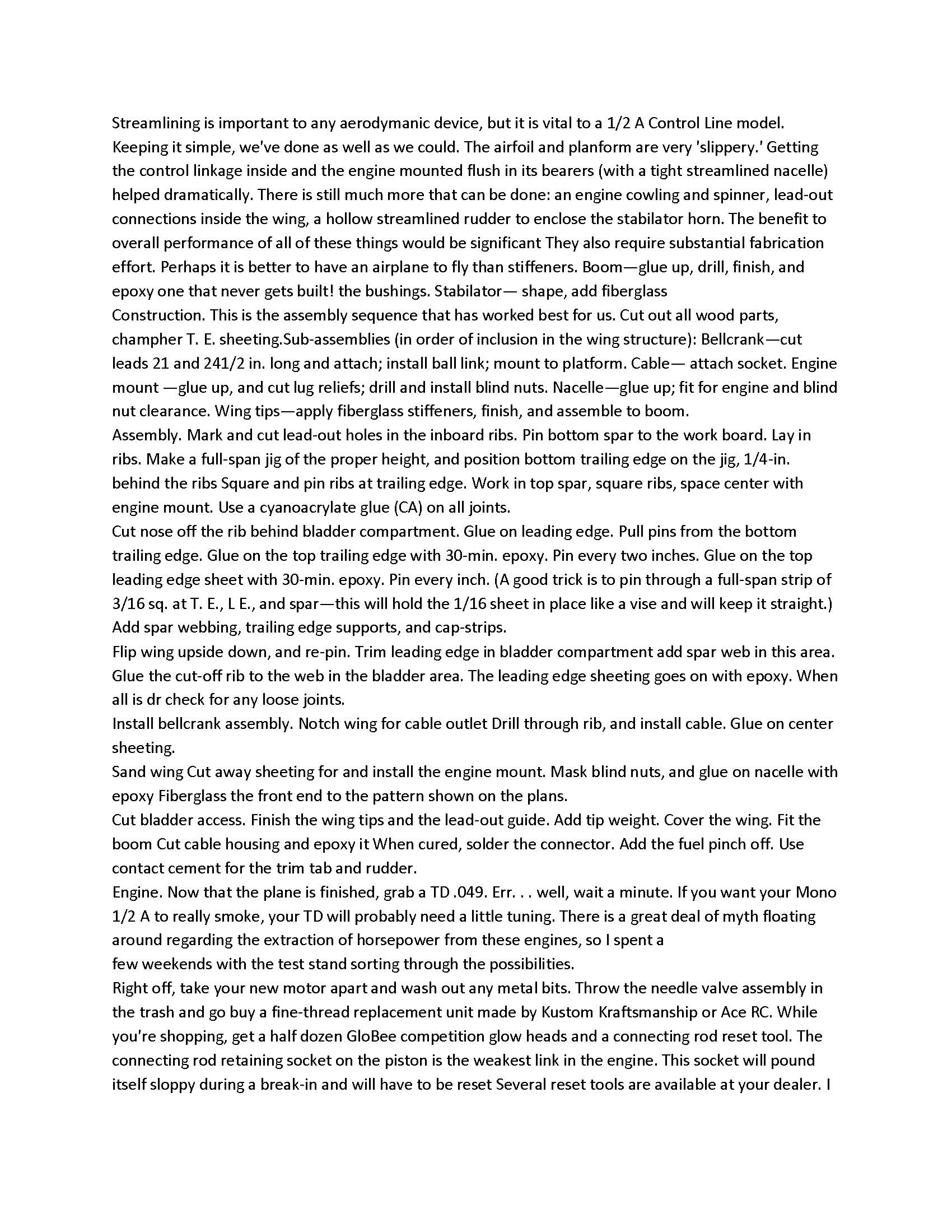

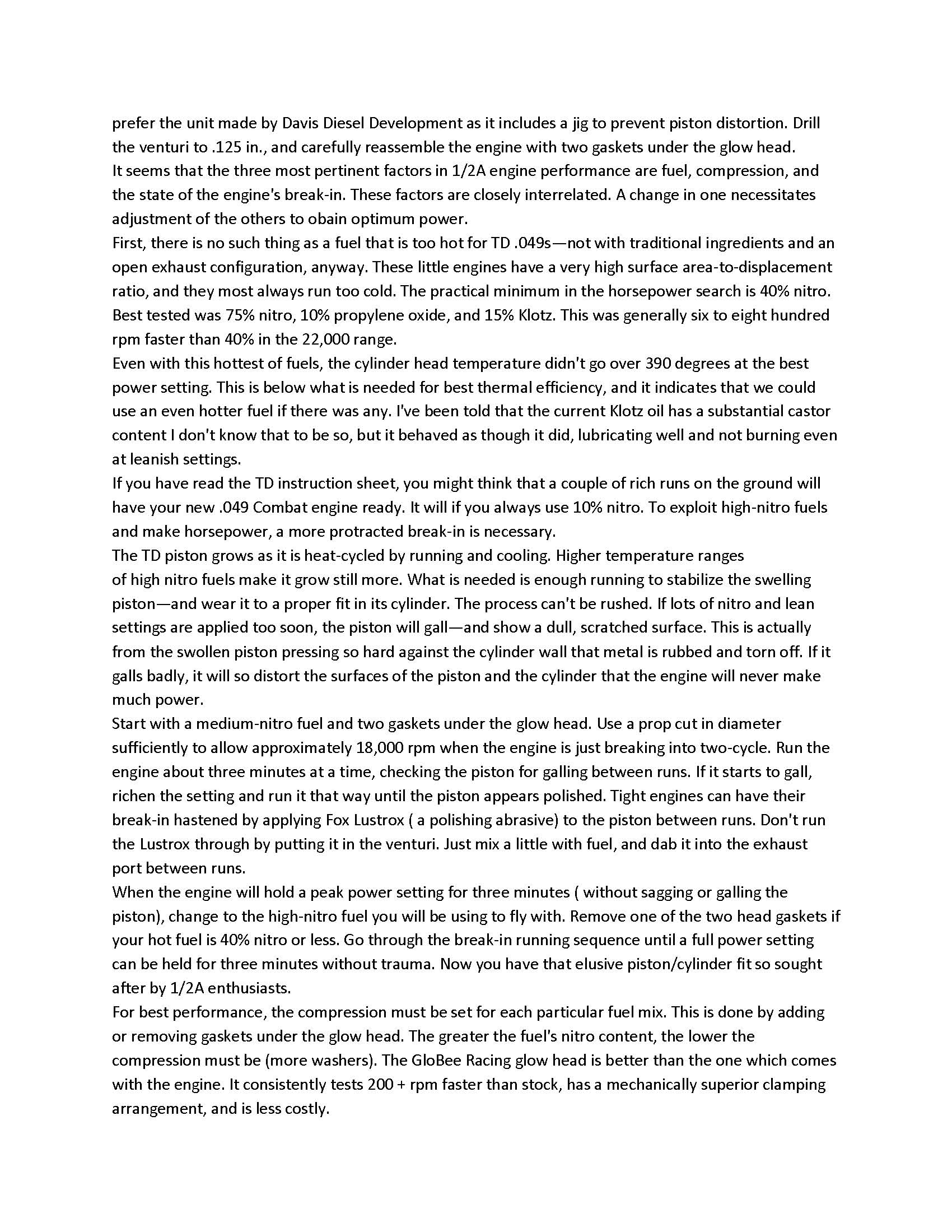

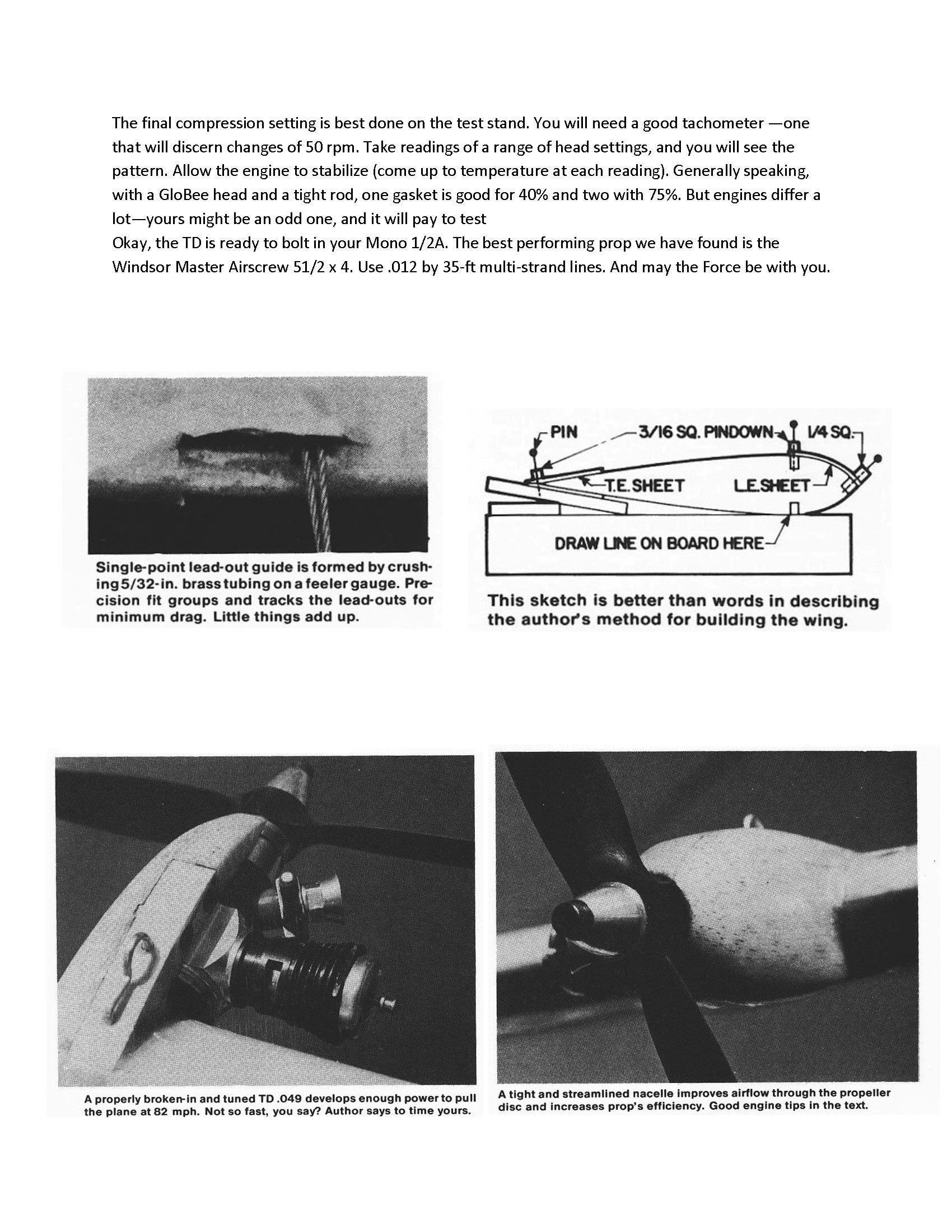

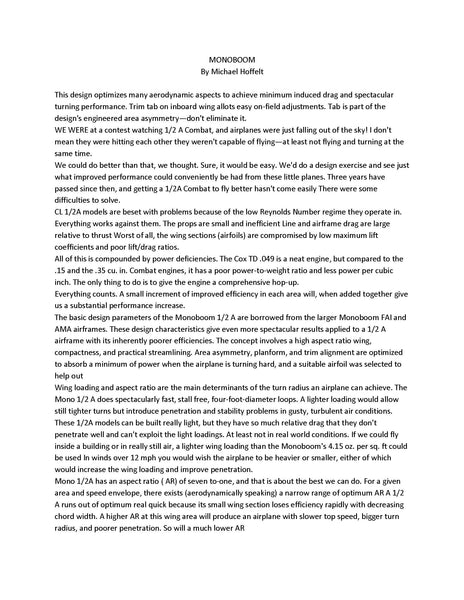

FOUR PAGES OF PHOTOS, and CONSTRUTION NOTES
WINGSPAN 34 INCH
Engine 1/2 A
By Michael Hoffelt
The basic design parameters of the Monoboom 1/2 A are borrowed from the larger Monoboorn FAI and AMA airframe These design characteristics give even more spectacular results applied to a 1/2 A airframe with its inherently poorer efficiencies. The concept involves a high aspect ratio wing compactness, and practical streamlining. Area asymmetry, planform, and trim alignment are optimized to absorb a minimum of power when the airplane is turning hard, and a suitable airfoil was selected to help out.
