Full Size Printed Plan & Building Notes *ORCRIST* 1971 British Nationals Combat Winner

Full Size Printed Plan & Building Notes

No material plans only

ORCRIST

Top notch combat design, winner of the 1971 British Nationals

COMBAT

FULL SIZE PLANS PRINTED ON a SHEET 36" x 24"

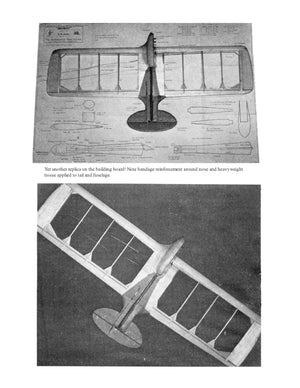

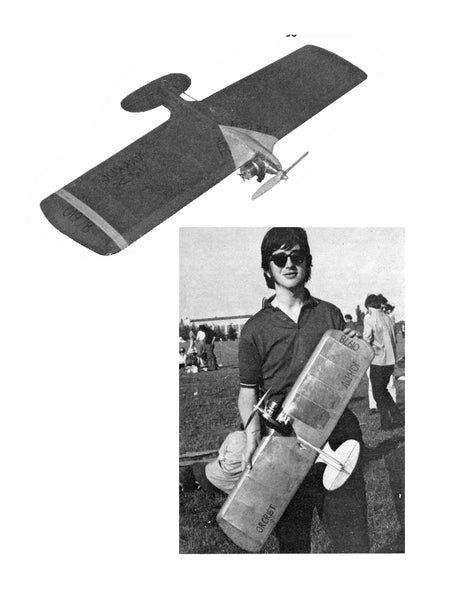

Five PAGES OF PHOTOS, and CONSTRUCTION NOTES

WINGSPAN 34”

ENGINE .15

By Steve Jones

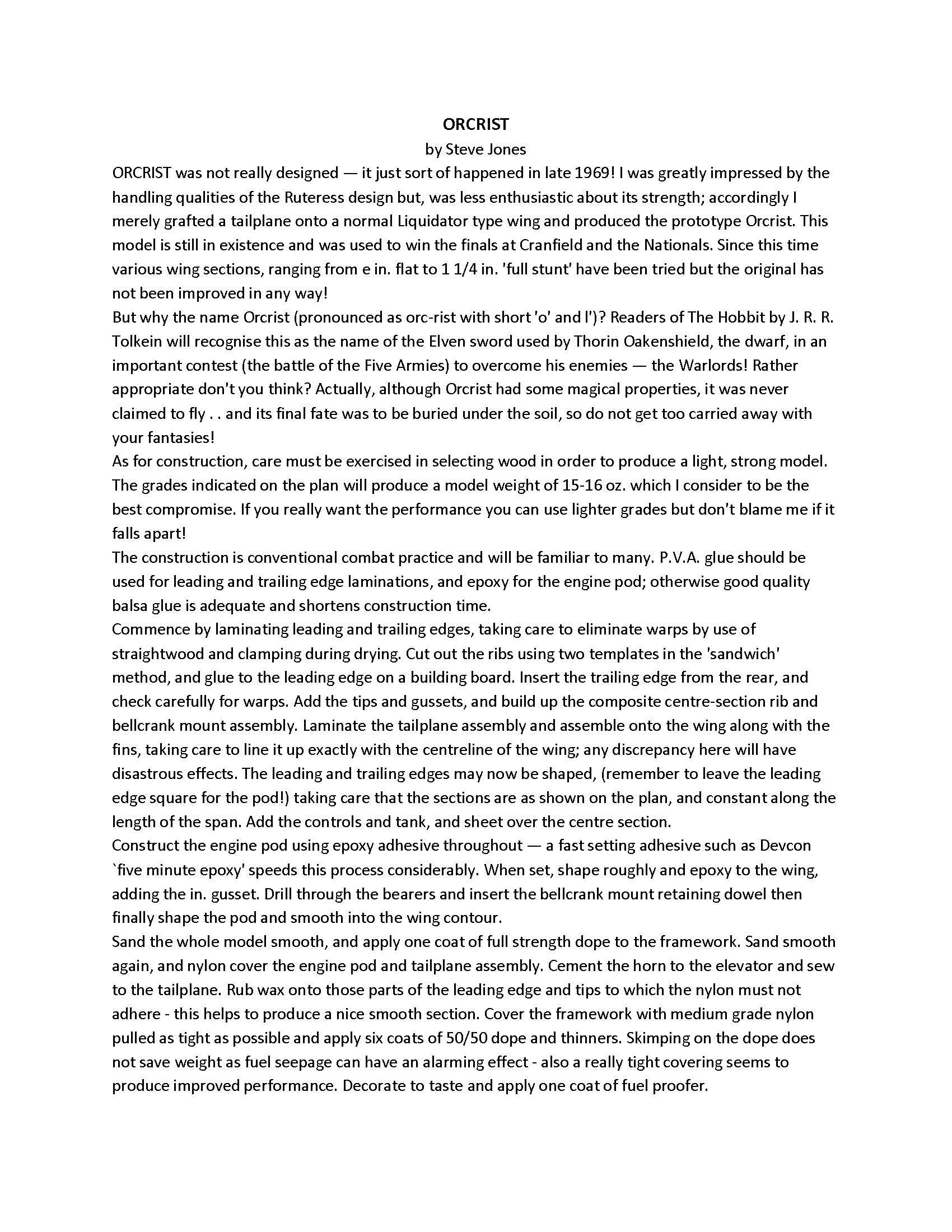

ORCRIST was not really designed - it just sort of happened in late 1969! I was greatly impressed by the handling qualities of the Ruteress design but. was less enthusiastic about its strength; accordingly I merely grafted a tailplane onto a normal Liquidator type wing and produced the prototype Orcrist . This model is still in existence and was used to win the finals at Cranfield and the Nationals. Since this time various wing sections, ranging from 7/8 in. flat to 1 1/4 in. 'full stunt' have been tried but the original has not been improved in any way! But why the name Orcrist (pronounced as orc-rist with short '0' and 'i')? Readers of The Hobbit by J. R. R. Tolkein will recognize this as the name of the Elven sword used by Thorin Oakenshield, the dwarf, in an important contest (the battle of the Five Armies) to overcome his enemies - the Warlords! Rather appro­priate don't you think? Actually, although Orcrist had some magical properties, it was never claimed to fly  and its final fate was to be buried under the soil, so do not get too carried away with your fantasies!    .

As for construction, care must be exercised in selecting wood in order to produce a light, strong model. The grades indicated on the plan will produce a model weight of 15-16 oz. which I consider to be the best compromise. If you really want the performance you can use lighter grades but don't blame me if it falls apart!
