Full Size Printed Plan for a excursion steamer side paddle power Steam or electric suitable for radio control
Description

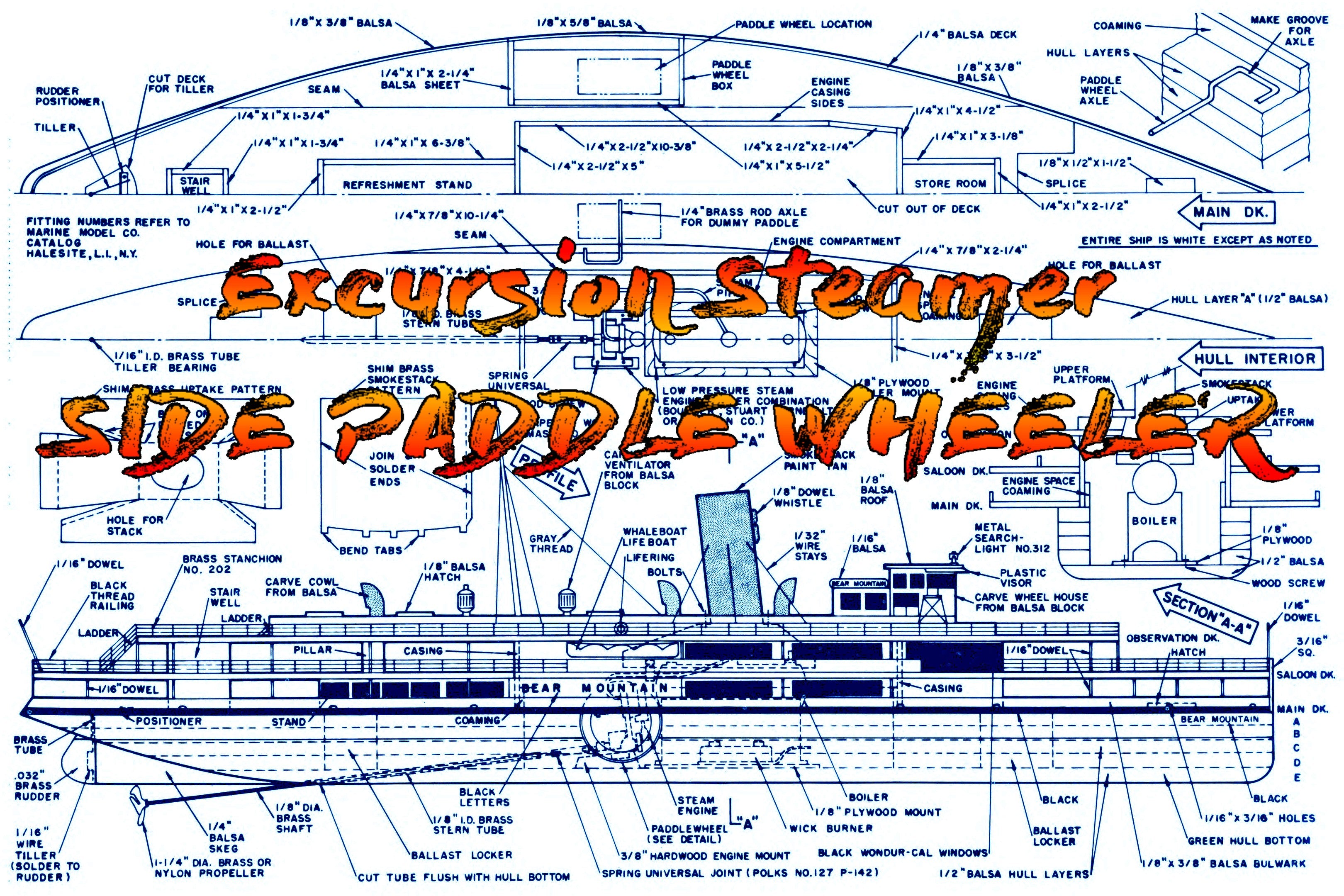

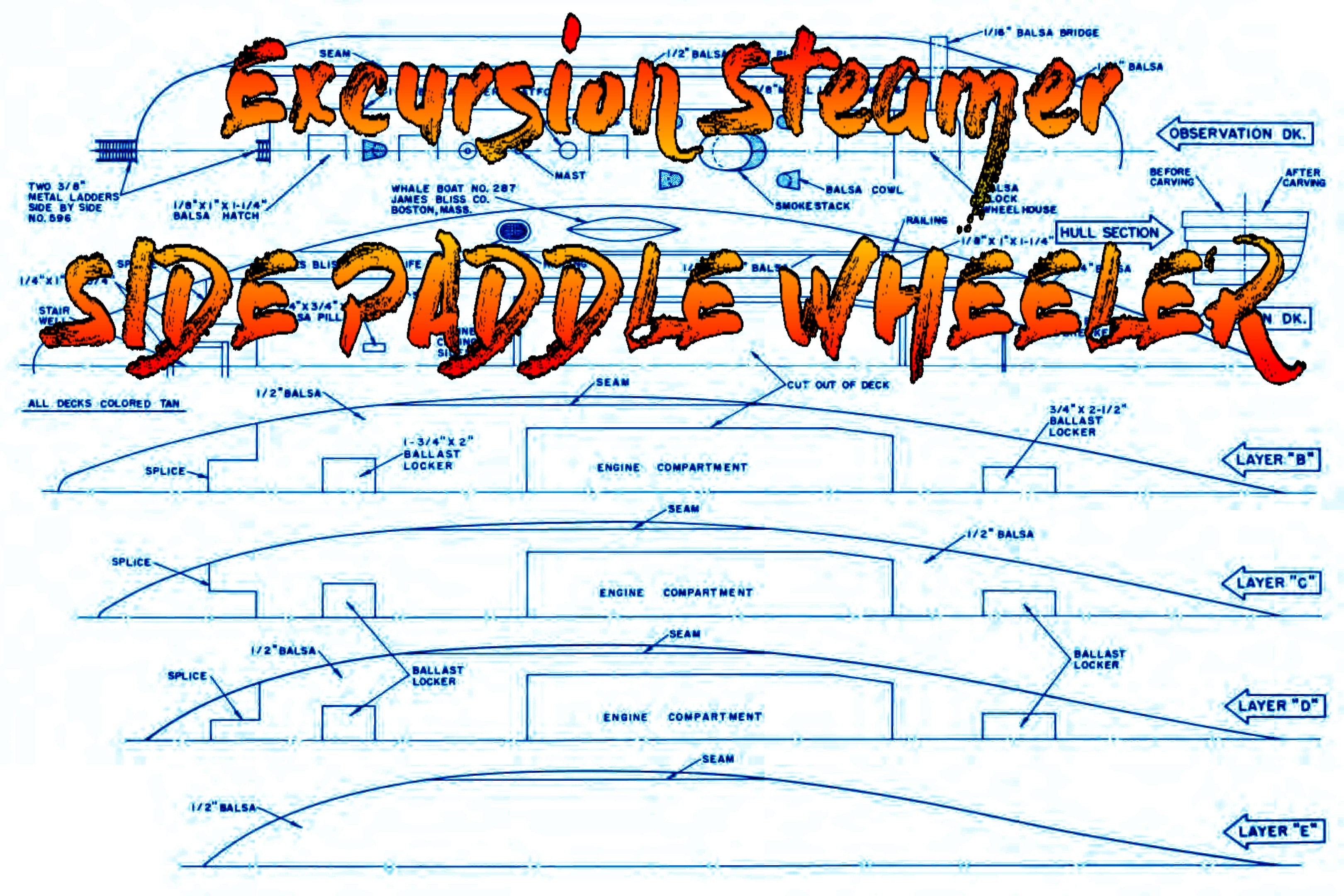

Full Size Printed Plan & Building Notes
No material plans only
VINTAGE DRAWINGS FROM 1964
Excursion Steamer
SIDE PADDLE WHEELER
Full Size Printed on Three sheets Two 45” x 30” and One 17" x 11"

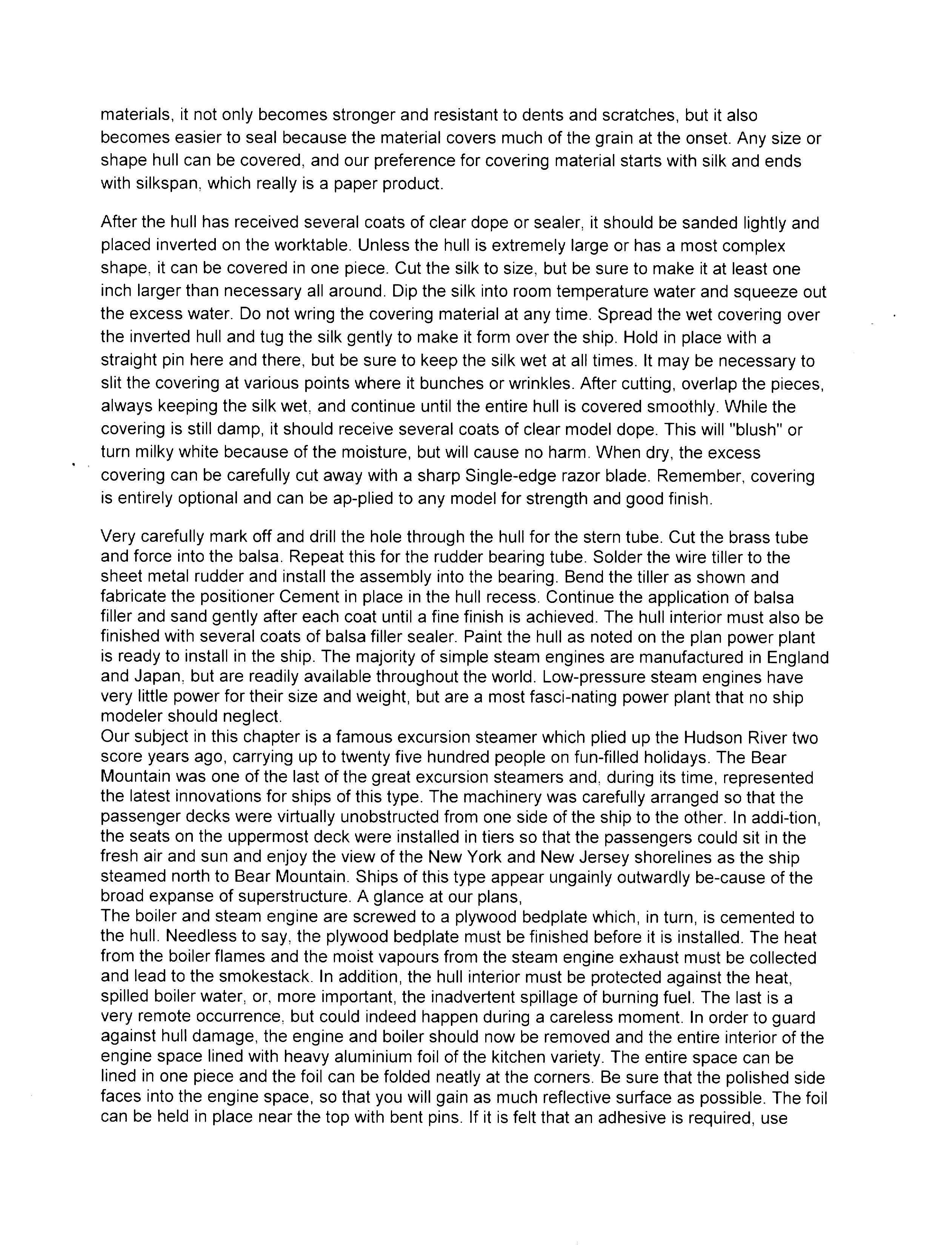

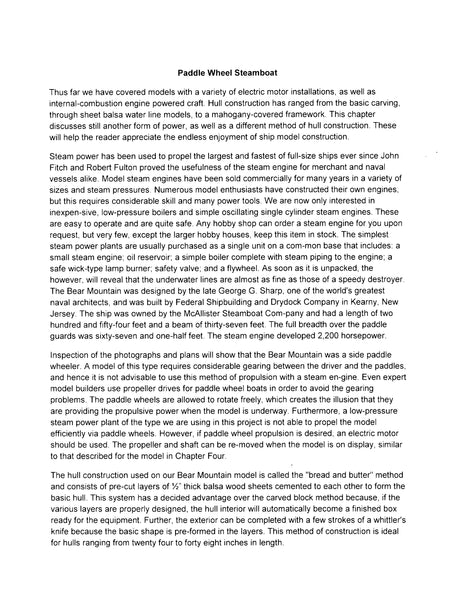

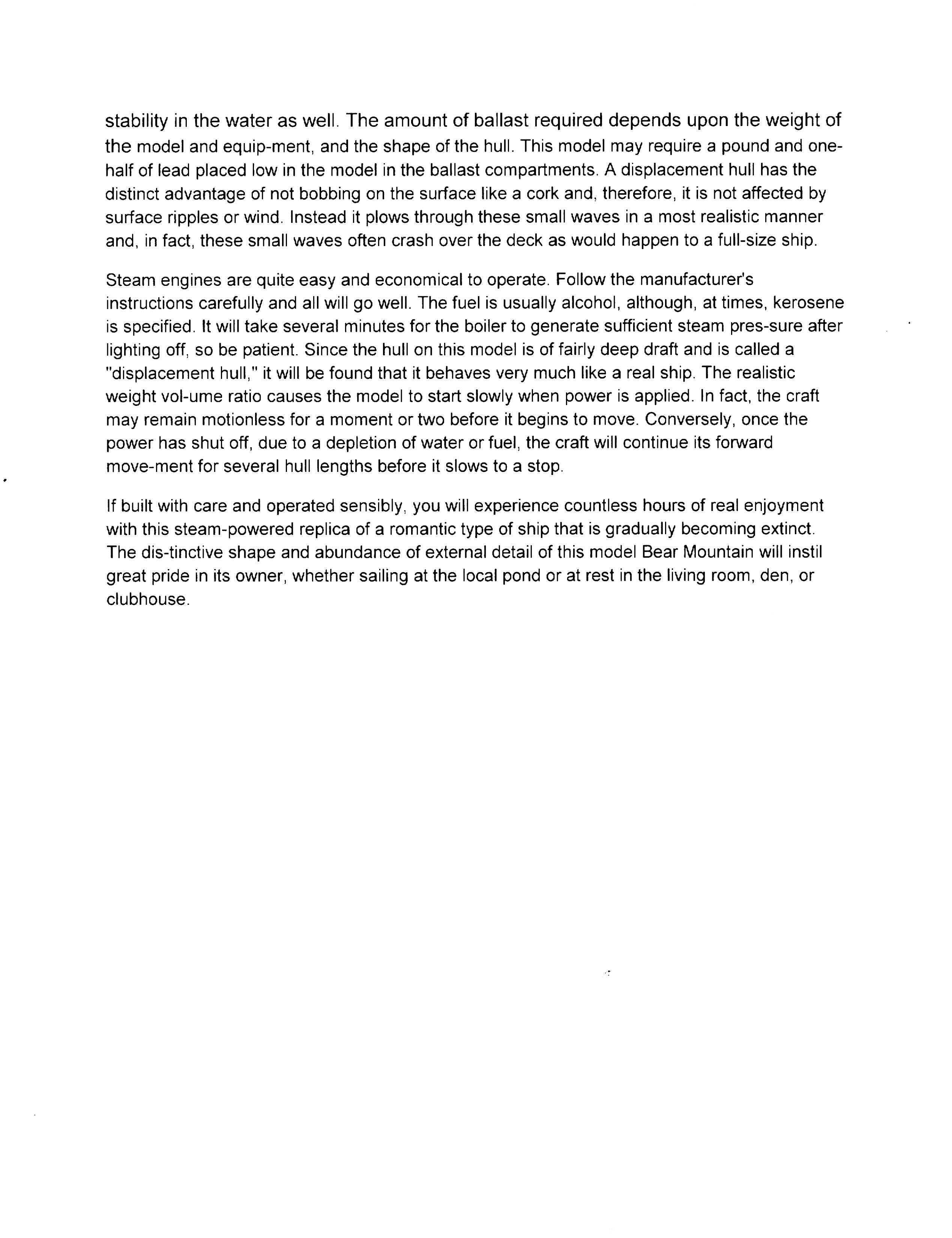

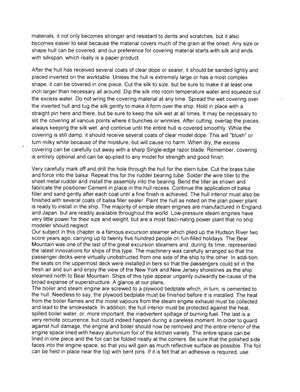

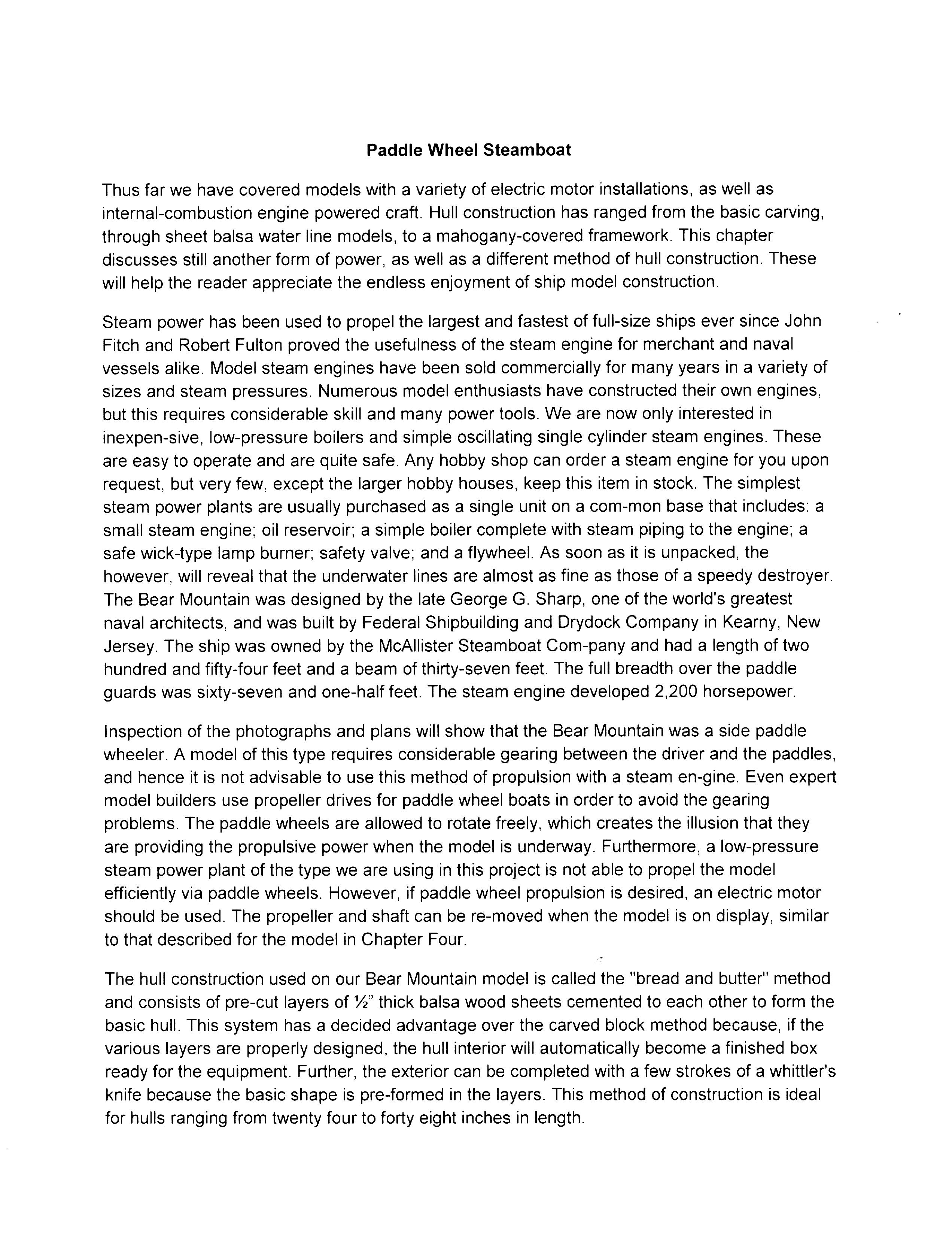

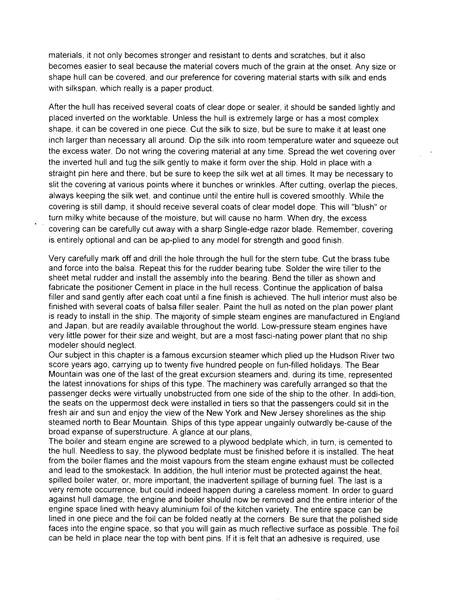

Six Page Article and photos
LENGTH 42”
OVERALL WIDTH 11”
STEAM PROPELLER or PADDLE WHEEL
YOU MAY CONVERT TO ELECTRIC
RADIO CONTROL MAY BE INSTALLED (No installation shown)
By Walter A. Musciano

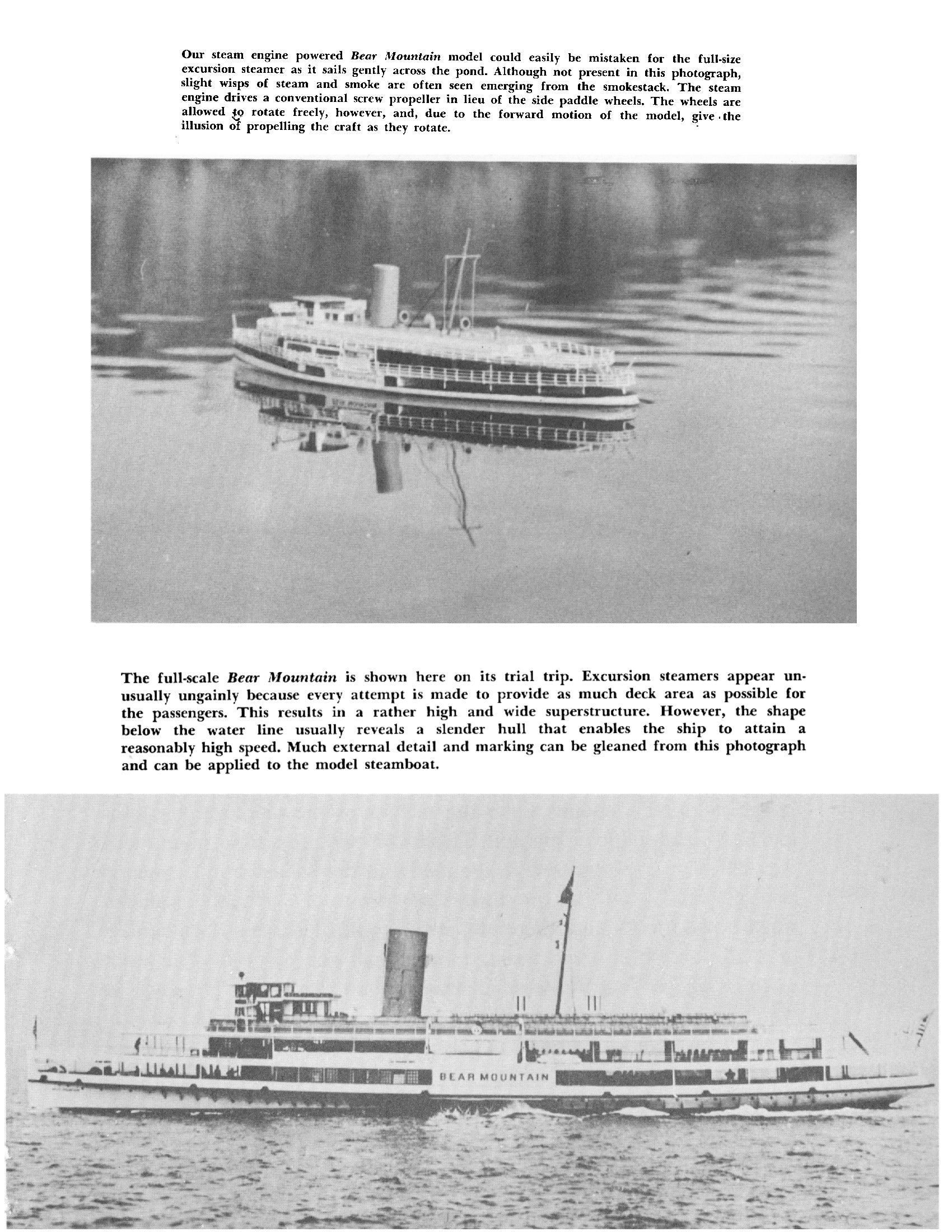

Our steam engine powered Bear Mountain model could easily be mistaken for the full-size excursion steamer as it sails gently across the pond. The steam engine drives a conventional screw propeller in lieu of the side paddle wheels. The wheels are allowed to rotate freely, however, and, due to the forward motion of the model, give the illusion of propelling the craft as they rotate. Plans include drawings for paddle wheel operation
