Full Size Printed Plan hydroplane Length 22” Beam 9” Power Glow .30 ci Suitable for radio control
Regular priceSale price
Unit price/ per
Full Size Printed Plan & Building Notes
No material plans only
Full Size printed plan on a 26” x 20” sheet

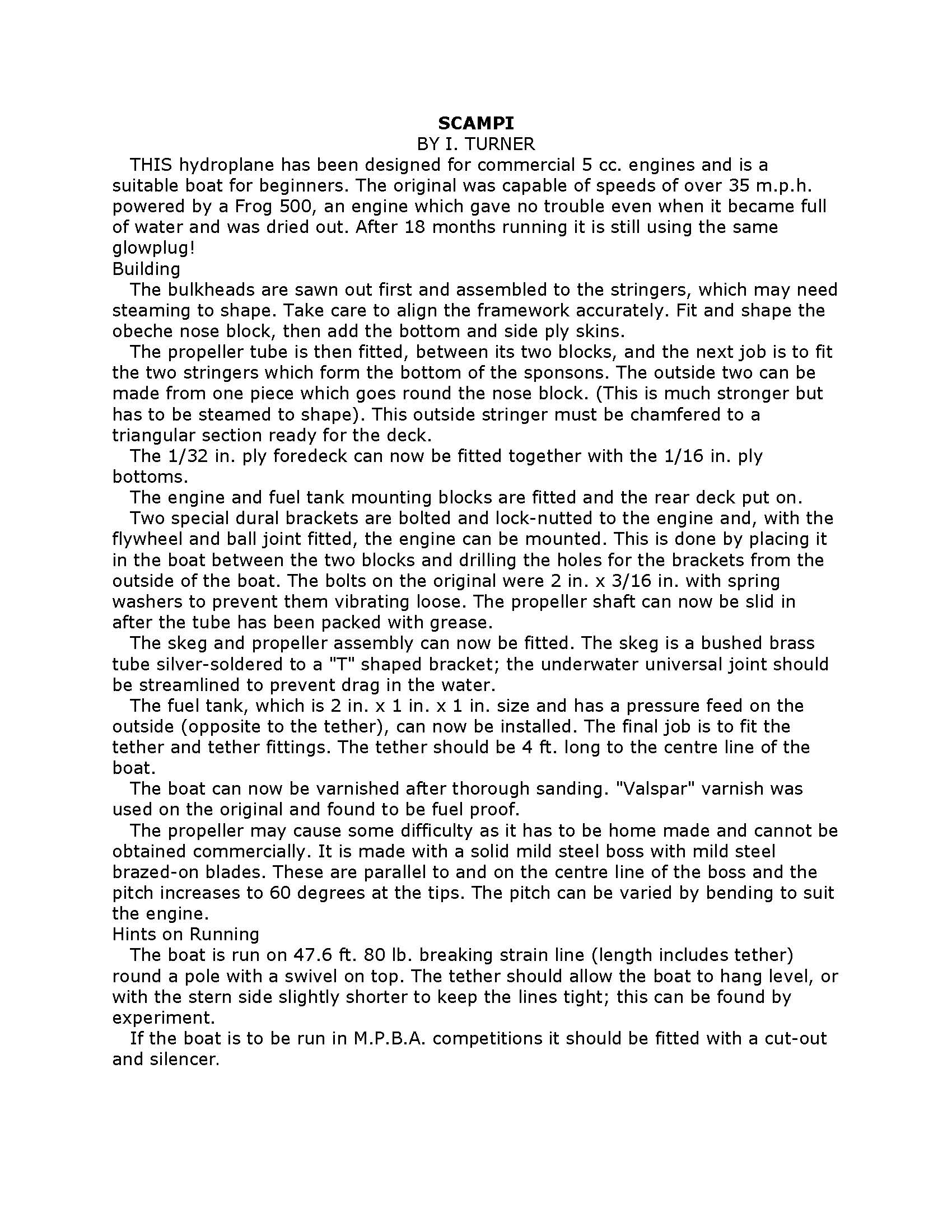

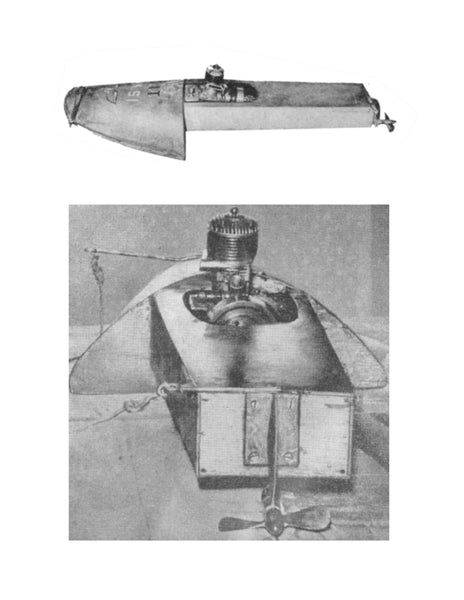

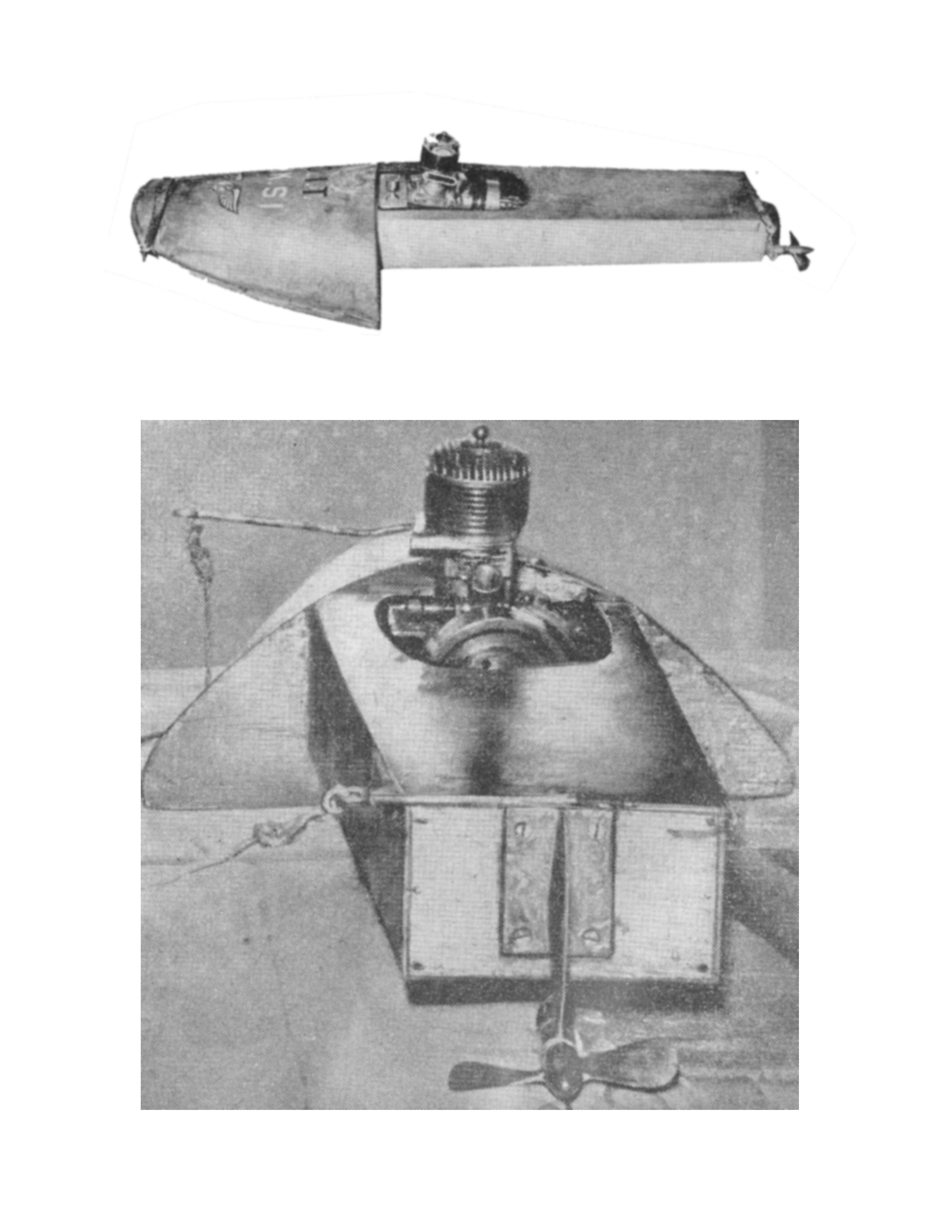

Two-page article with building notes and photos
Power Glow .30 ci
Suitable for radio control
BY I. TURNER
THIS hydroplane has been designed for commercial 5 cc. engines and is a suitable boat for beginners. The original was capable of speeds of over 35 m.p.h. powered by a Frog 500, an engine which gave no trouble even when it became full of water and was dried out. After 18 months running it is still using the same glowplug!
The bulkheads are sawn out first and assembled to the stringers, which may need steaming to shape. Take care to align the framework accurately. Fit and shape the obeche nose block, then add the bottom and side ply skins.
