Full size printed plan and Building notes
P 51 H Mustang

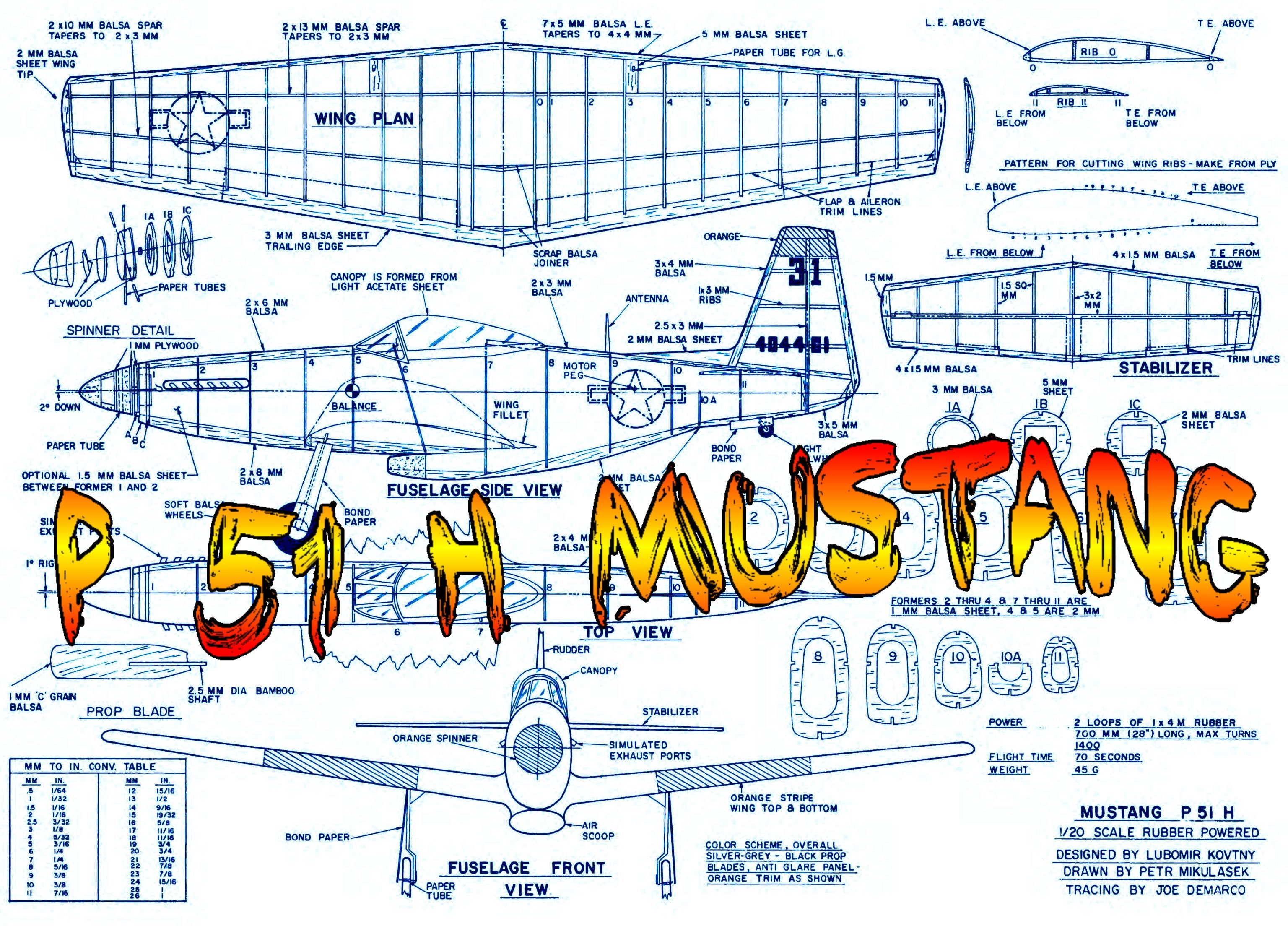

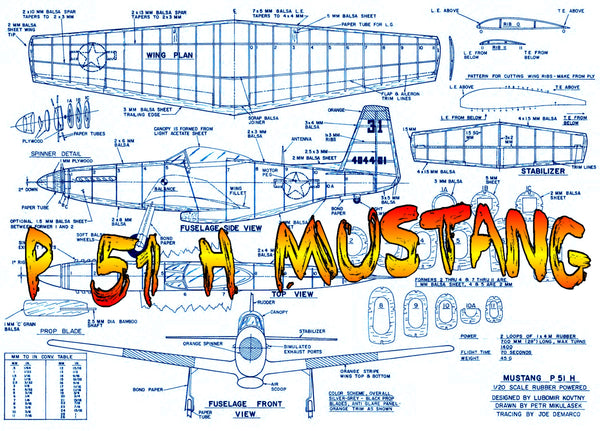

Full size printed plan on a sheet 32” x 24” 20 lb bond

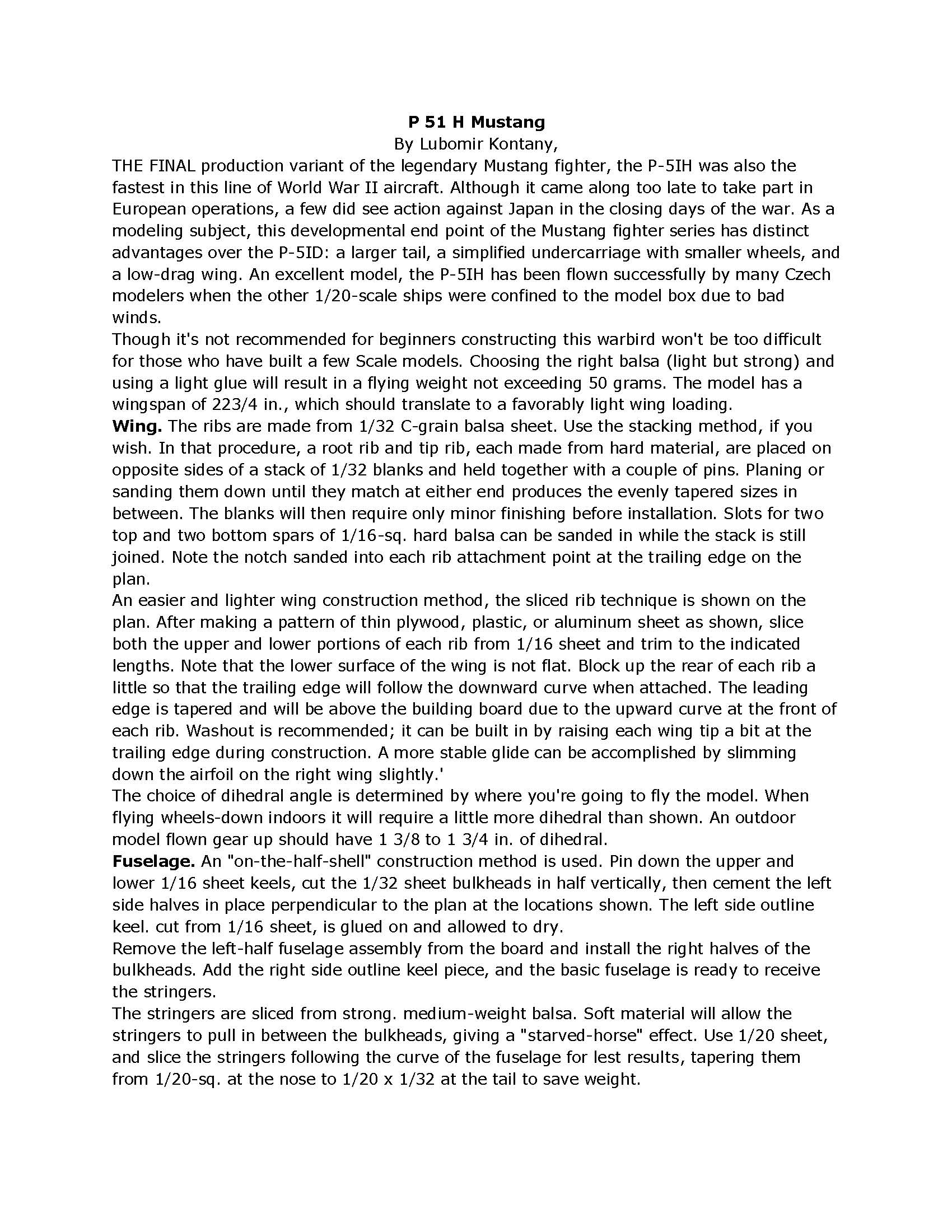

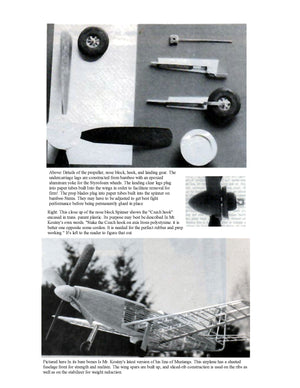

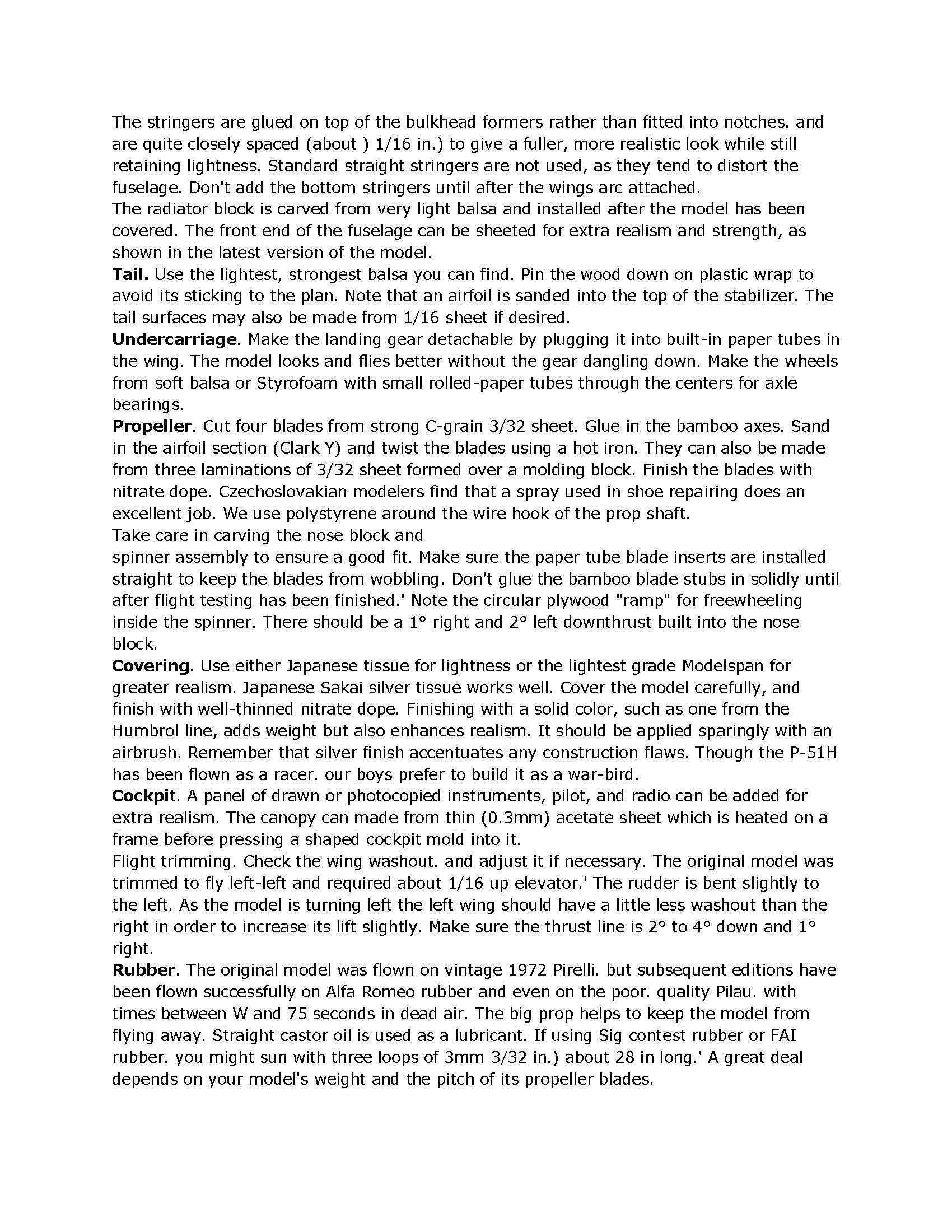

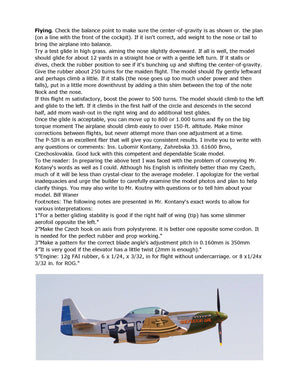

Four page article with building notes and photos (not recommended for beginners)
Wingspan 22 ¾”
By Lubomir Kontany,
As a modeling subject this developmental end point of the Mustang righter series has distinct advantages over the P-5ID: a larger tail, a simplified undercarriage with smaller wheels, and a low-drag wing. An excellent model, the P-5IH has been flown successfully by many Czech modelers when the other '40-scale ships were confined to the model box due to bad winds.
Though it's not recommended for beginners, constructing this warbird won't be too difficult for those who have built a few Scale models. Choosing the right balsa (light but strong) and using a light glue will result in a flying weight not exceeding 50 grams.
THE FINAL production variant of the legendary Mustang fighter, the P-5IH was also the fastest in this line of World War II aircraft. Although it came along too late to take part in European operations, a few did see action against Japan in the closing days of the war
Thank you for your interest Rose
