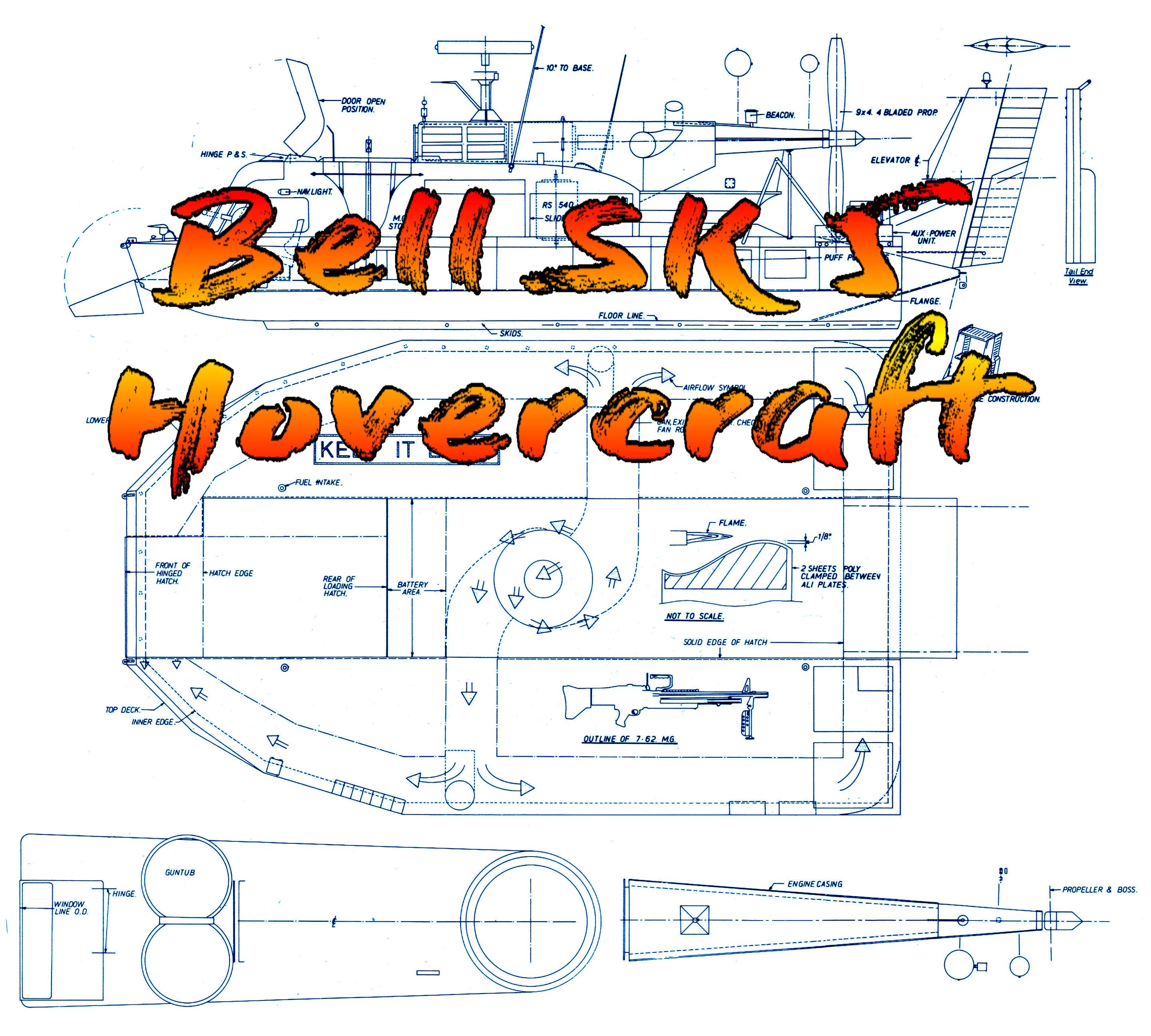

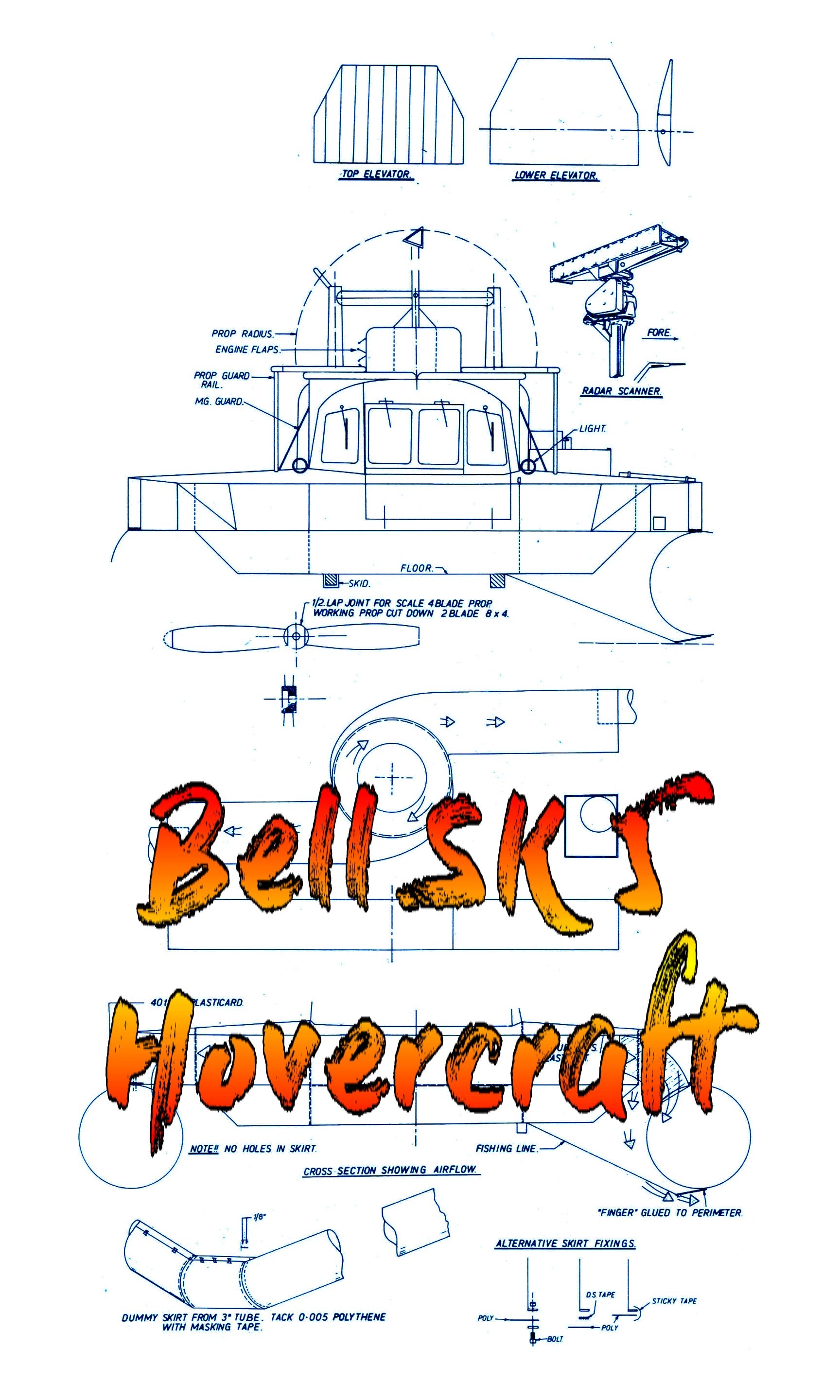

Full Size Printed Plan Scale 1:18 Bell SK 5 Hovercraft for 3 Channel Radio control
Full Size Printed Plan & Building Notes
No materials. Plan only
Bell SK 5 Hovercraft
Full Size Printed Plan on 43" x 36" and 40" x 24"

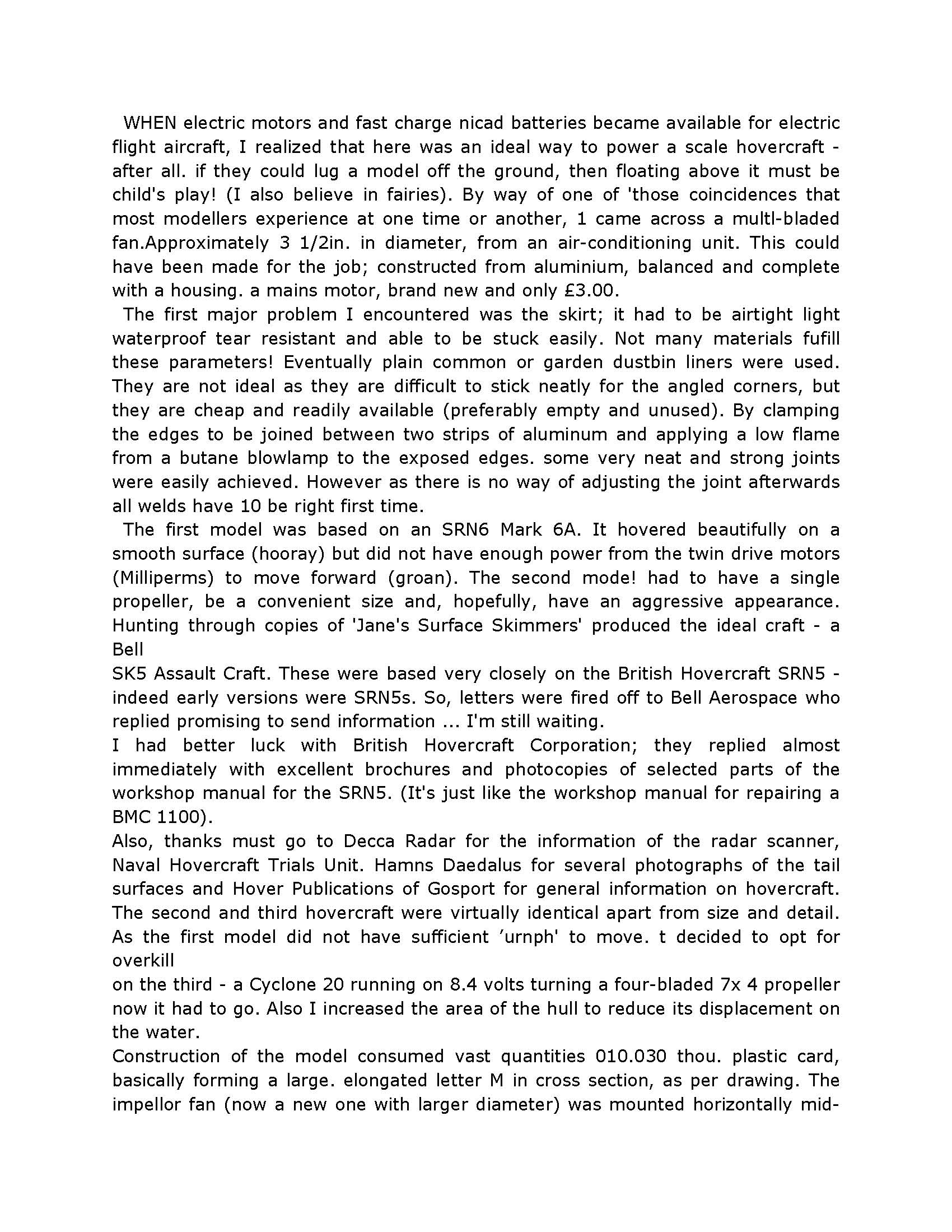

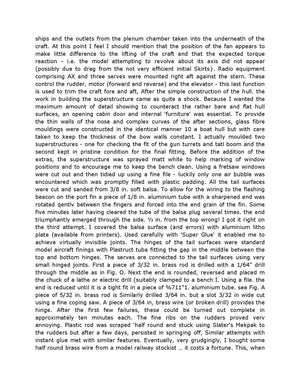

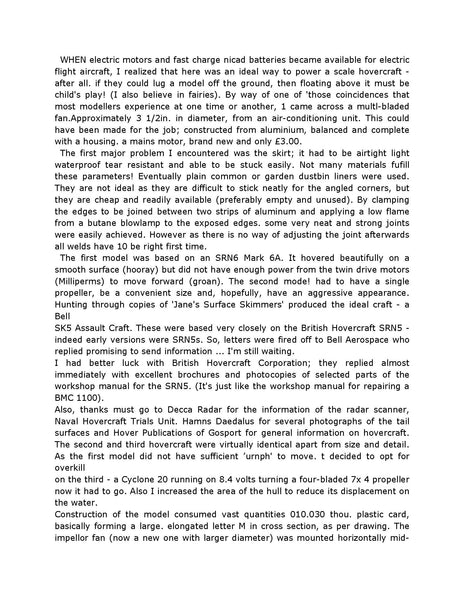

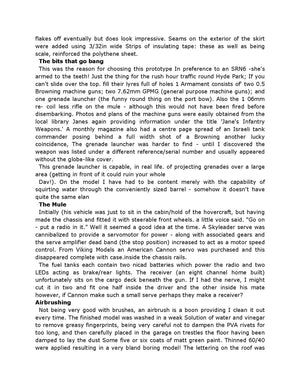

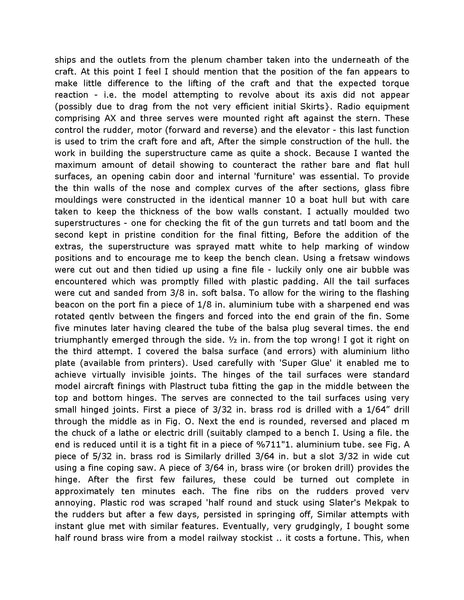

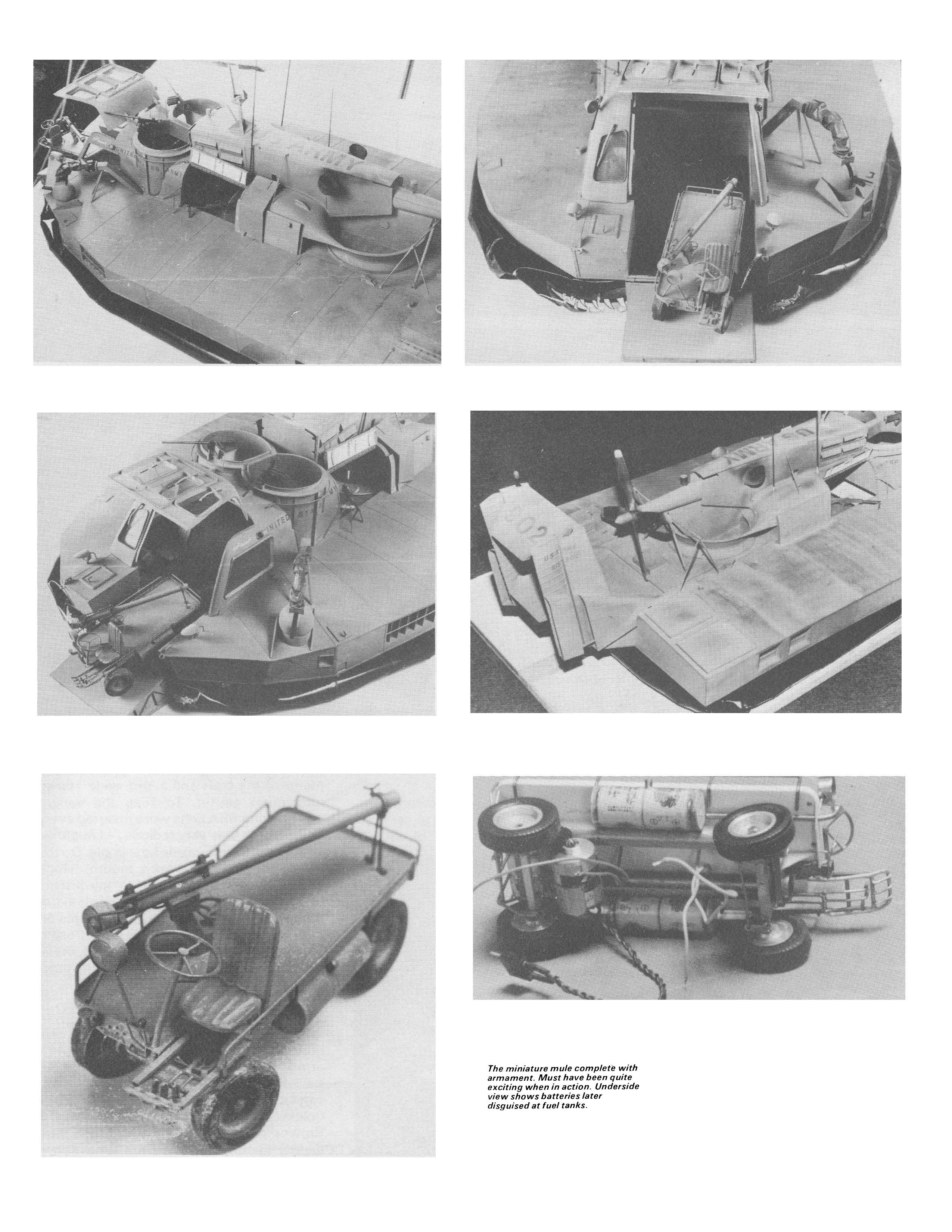

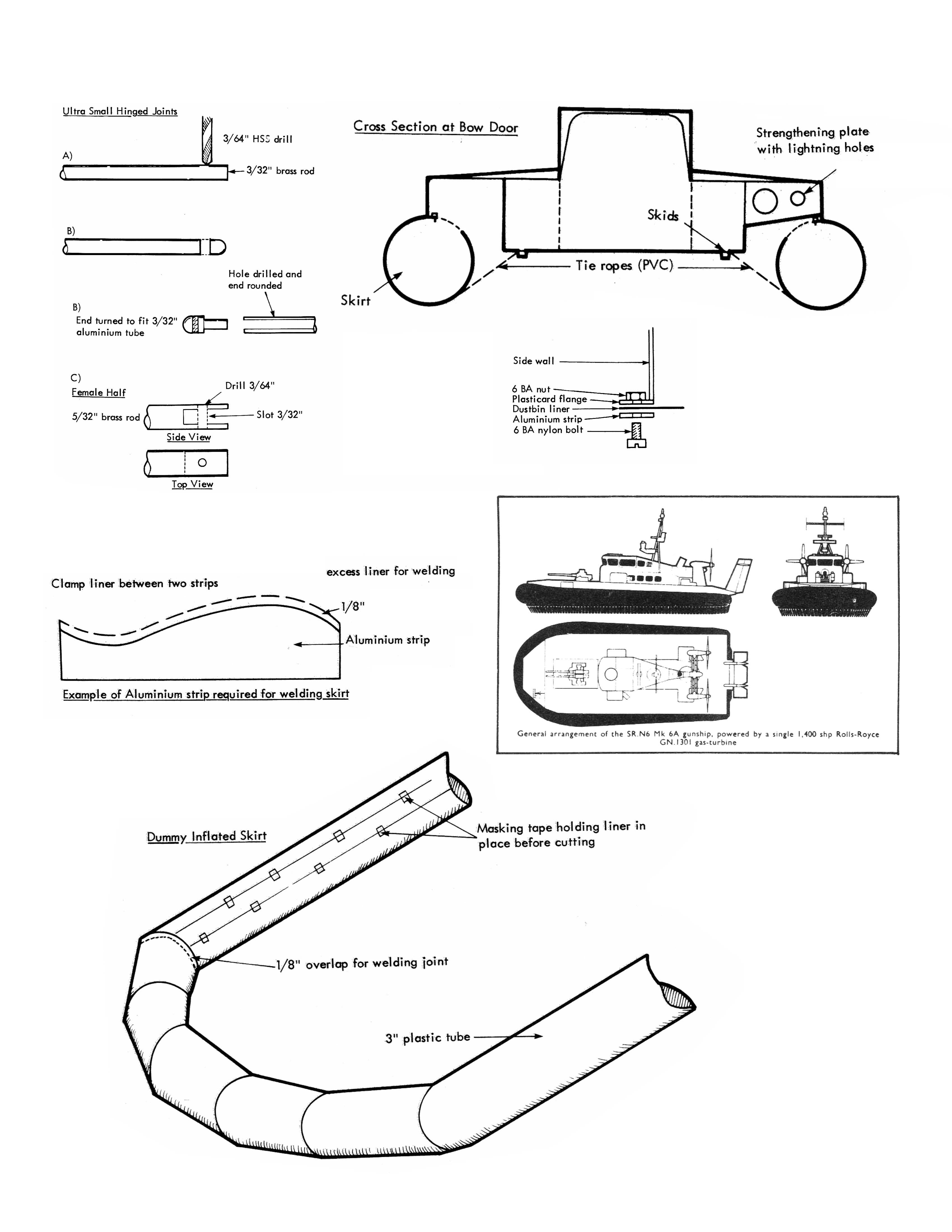

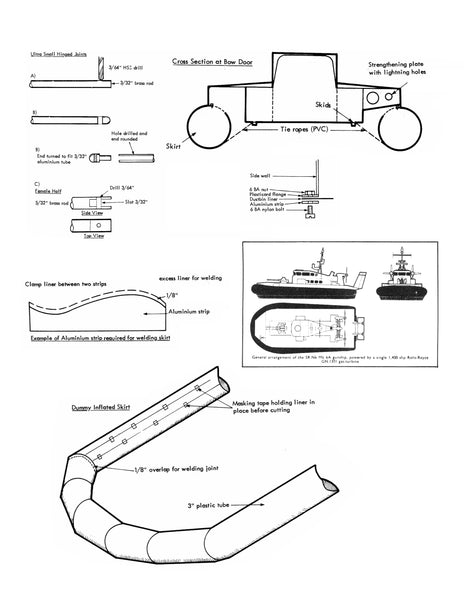

Eight page article of Building Notes, Photos & Illustrations
Length 26 1/2”
Width 16 ½”
3 Channel Radio
Two Electric Motors
By Tom Andrews

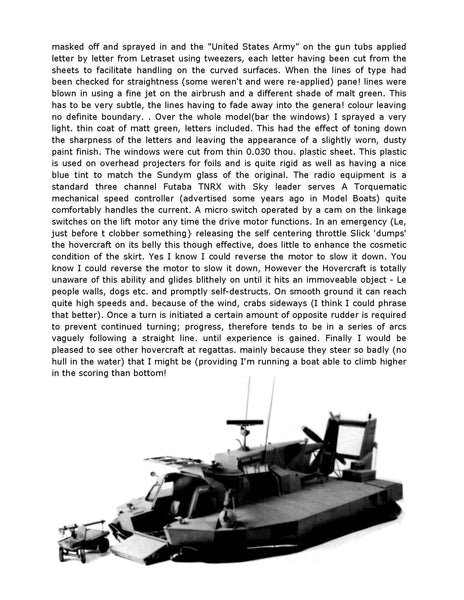

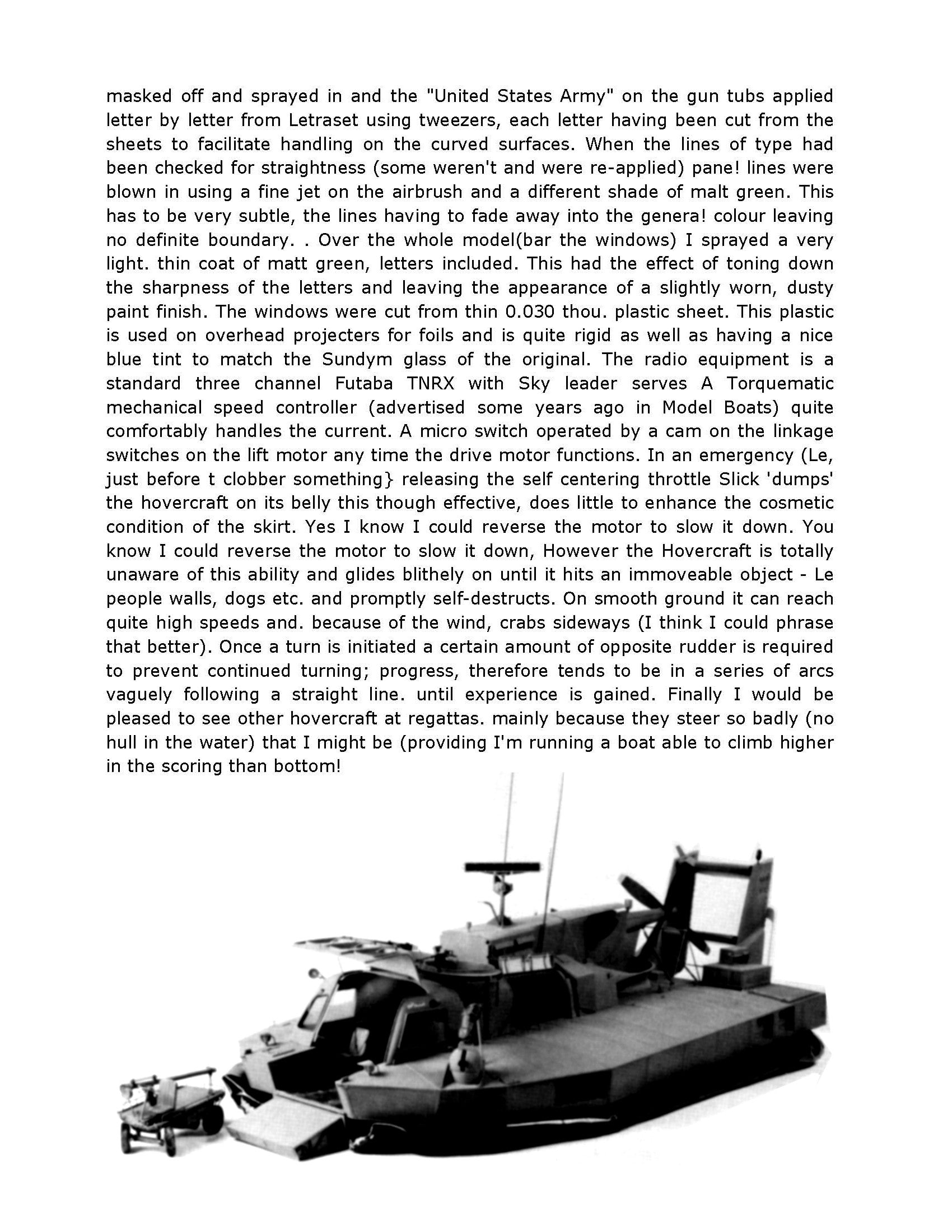

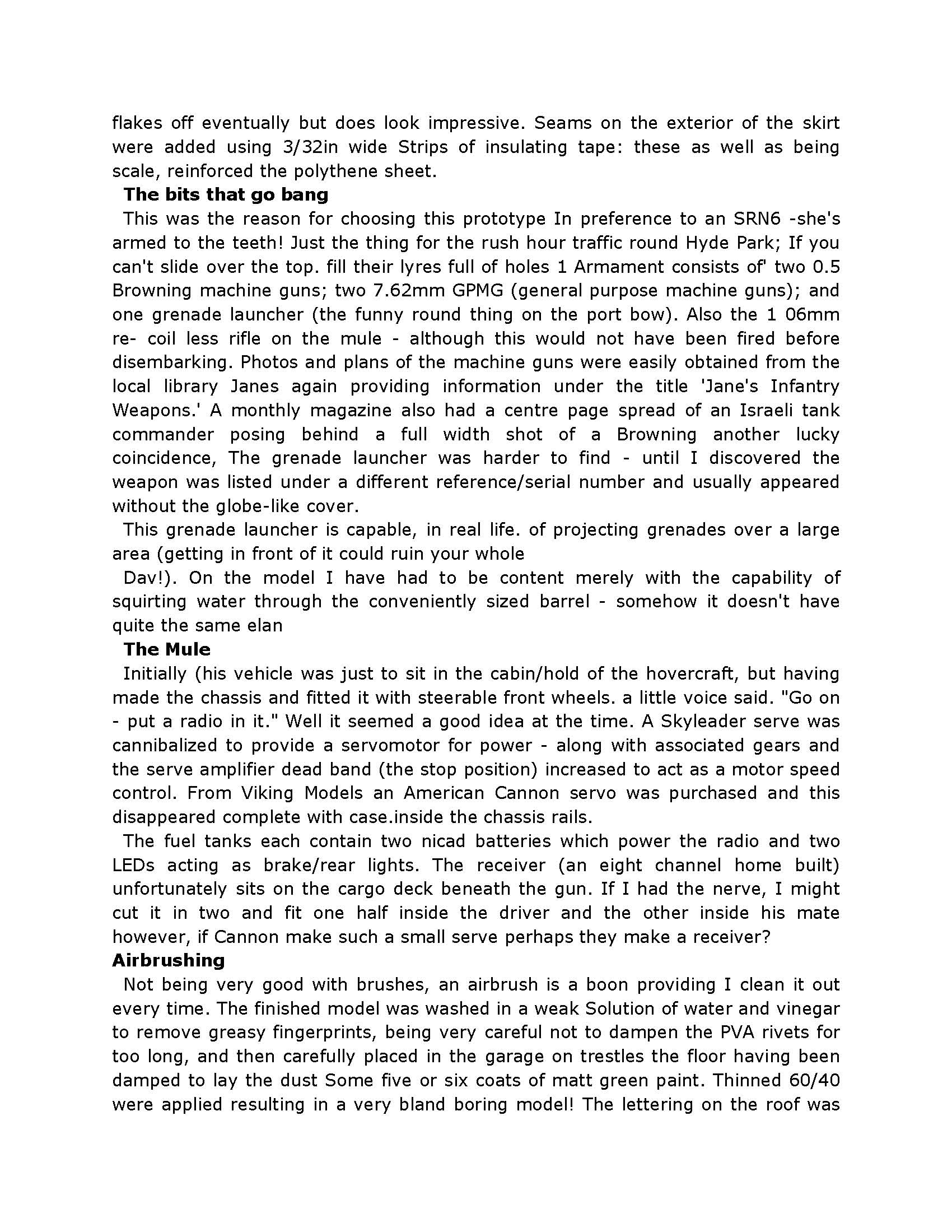

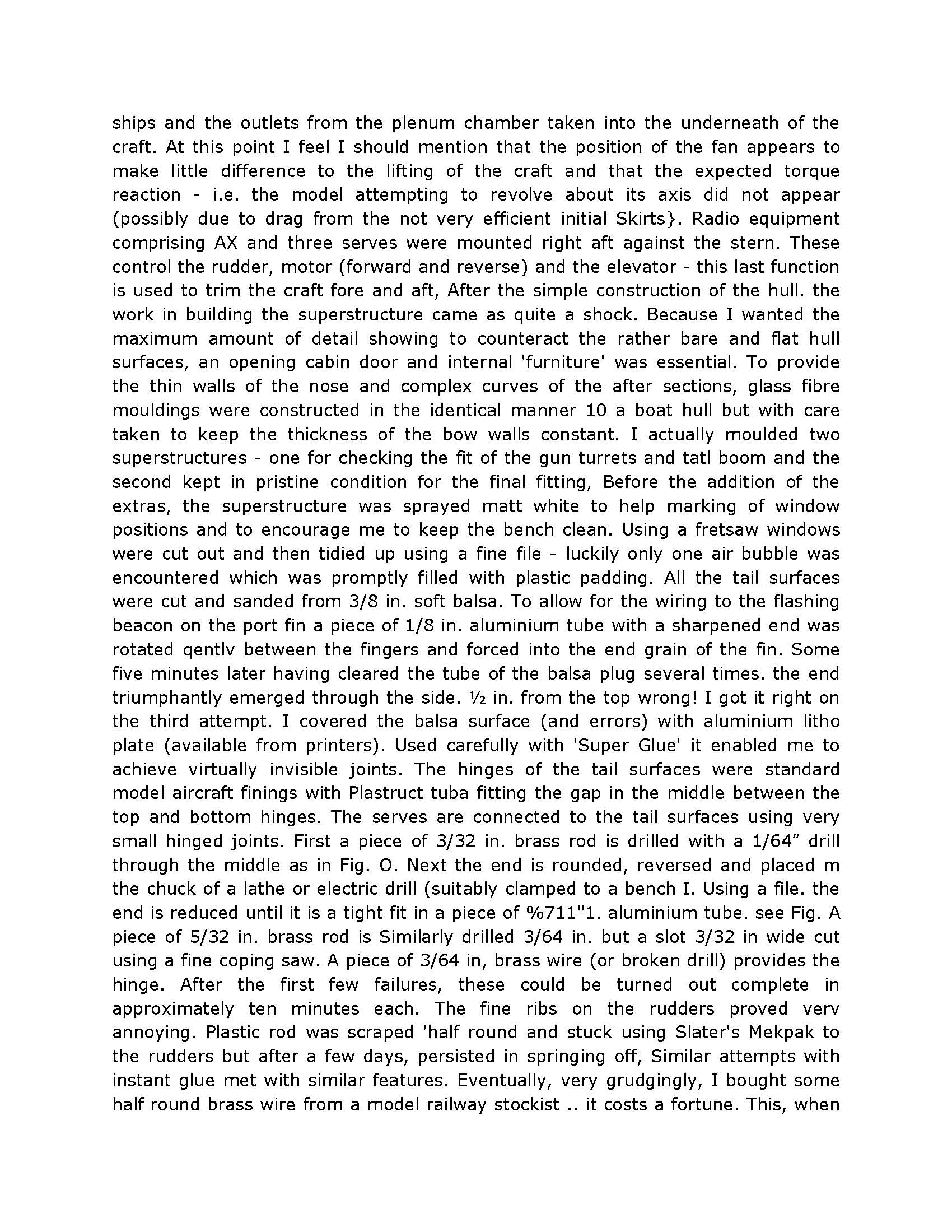

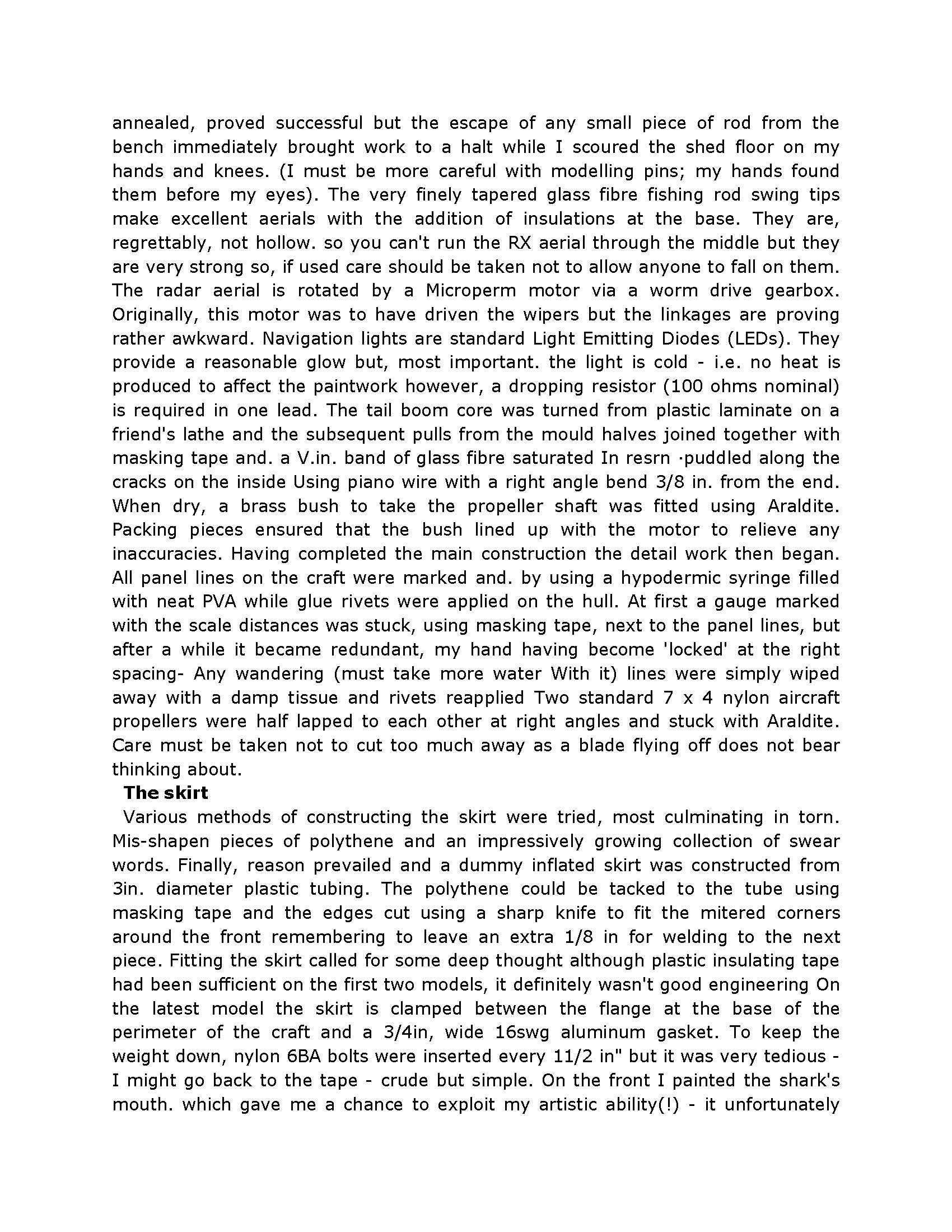

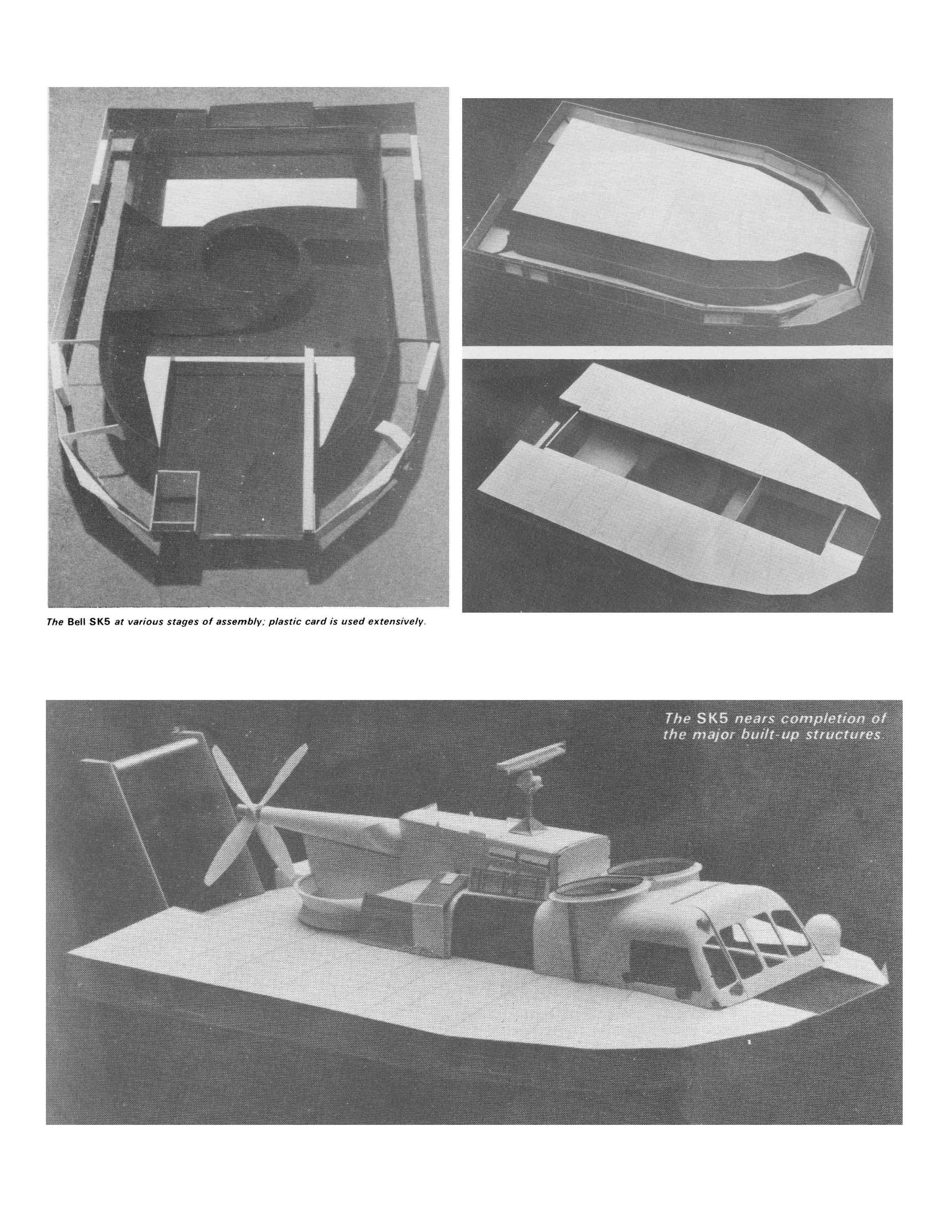

Construction of the model consumed vast quantities of .030 thou. plastic card, basically forming a large. elongated letter M in cross section, as per drawing. The impellor fan (now a new one with larger diameter) was mounted horizontally mid-ships and the outlets from the plenum chamber taken into the underneath of the craft. At this point I feel I should mention that the position of the fan appears to make little difference to the lifting of the craft and that the expected torque reaction - i.e. the model attempting to revolve about its axis did not appear (possibly due to drag from the not very efficient initial Skirts}. Radio equipment comprising AX and three serves were mounted right aft against the stern. These control the rudder, motor (forward and reverse) and the elevator - this last function is used to trim the craft fore and aft, After the simple construction of the hull.
