Full Size Printed Plan Scale 1:96 Imperial Iranian Navy Frigate Suitable for radio control
Regular priceSale price
Unit price/ per
Full Size Printed Plan & Building Notes
No material plans only
Imperial Iranian Navy Frigate
Full size printed plan on a 42” x 30” sheet
Two building illustration 17” x 11” sheets
One-page article with data and some building notes
Note: for modelers with some building experience
Beam 4 ¼”
Power suggests electric
Suitable for radio control
BY R. A. SWEET

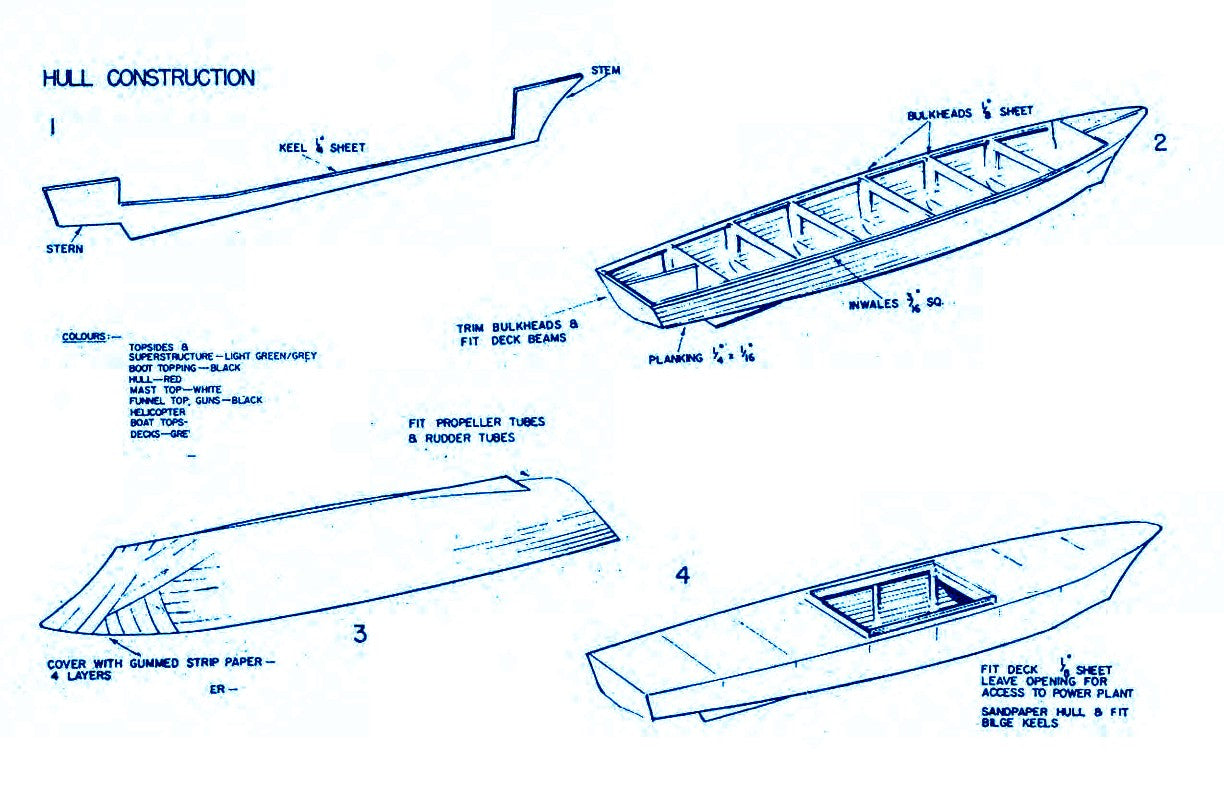

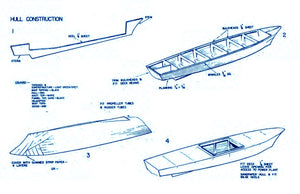

The model plans show profile, deck, and hull sections. Model was for exhibition purposes power plant was fitted, but the hull construction was designed so that- one could be added if required. Notes and sketches were made during construction and are included.
The superstructure was made from balsa and 1/16 in. ply. For a working model, this can he made removable, fitting over the coamings around the deck opening. When painting the model all the paints were of a matt finish, and colour notes are shown on the plan as a guide. Several coats were applied, these being rubbed down with 'wet and dry' paper, until a good finish was obtained.

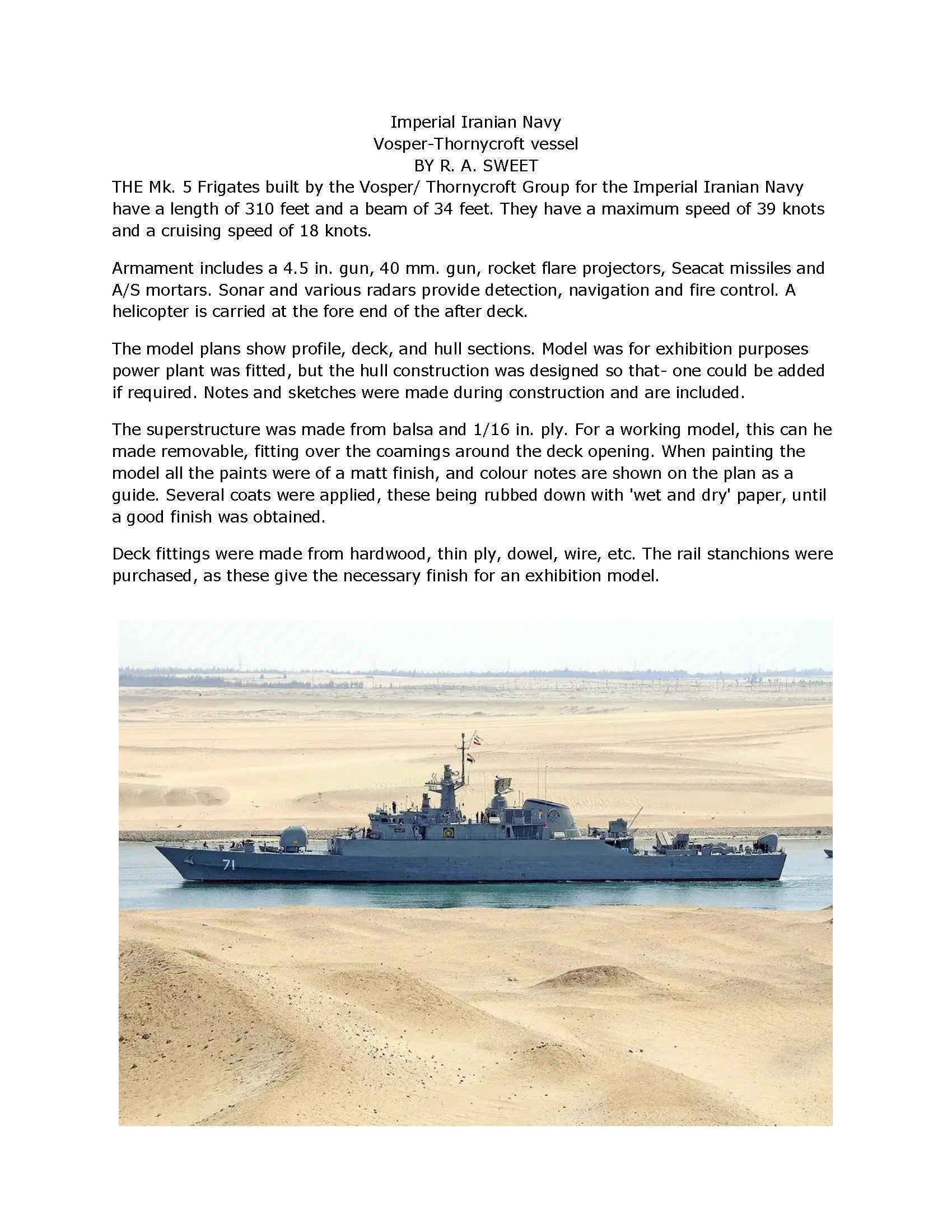

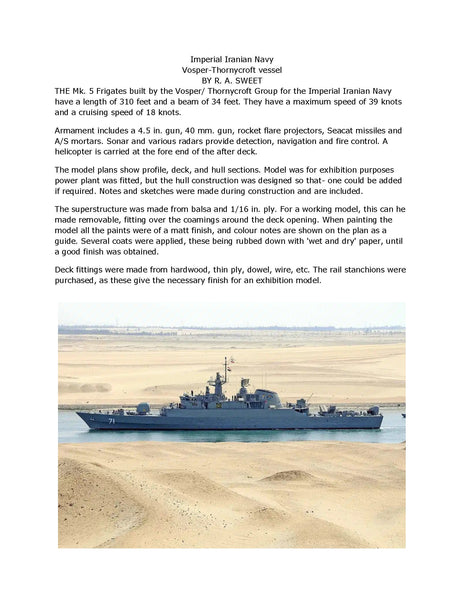

THE Mk. 5 Frigates built by the Vosper/ Thornycroft Group for the Imperial Iranian Navy have a length of 310 feet and a beam of 34 feet. They have a maximum speed of 39 knots and a cruising speed of 18 knots.
Armament includes a 4.5 in. gun, 40 mm. gun, rocket flare projectors, Seacat missiles and A/S mortars. Sonar and various radars provide detection, navigation and fire control. A helicopter is carried at the fore end of the after deck.
