Full Size Printed Plan to build 1:16 Semi Scale MiG 15 electric ducted fan Freeflight

Full Size Printed Plan & Building Notes

No material plans only

MiG·15

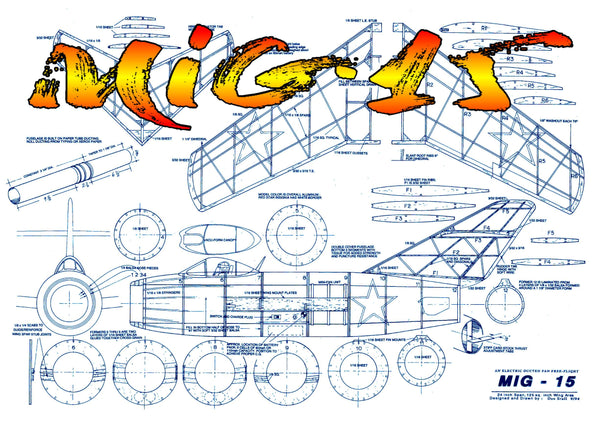

Full Size Printed Plan on a sheet 24” x 34” Ribs and Formers Show

One sheet 11" x 17" plan illustration of ducted fan

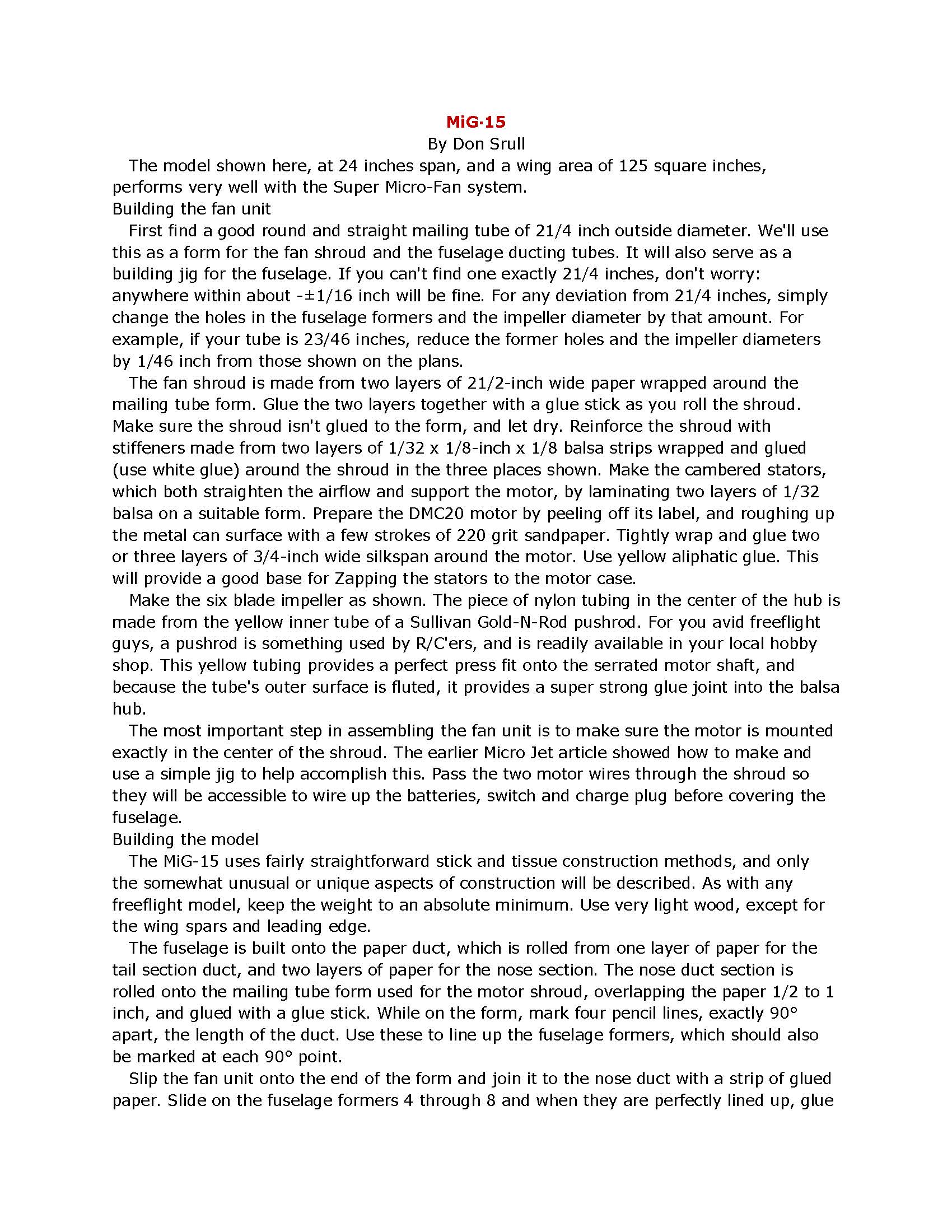

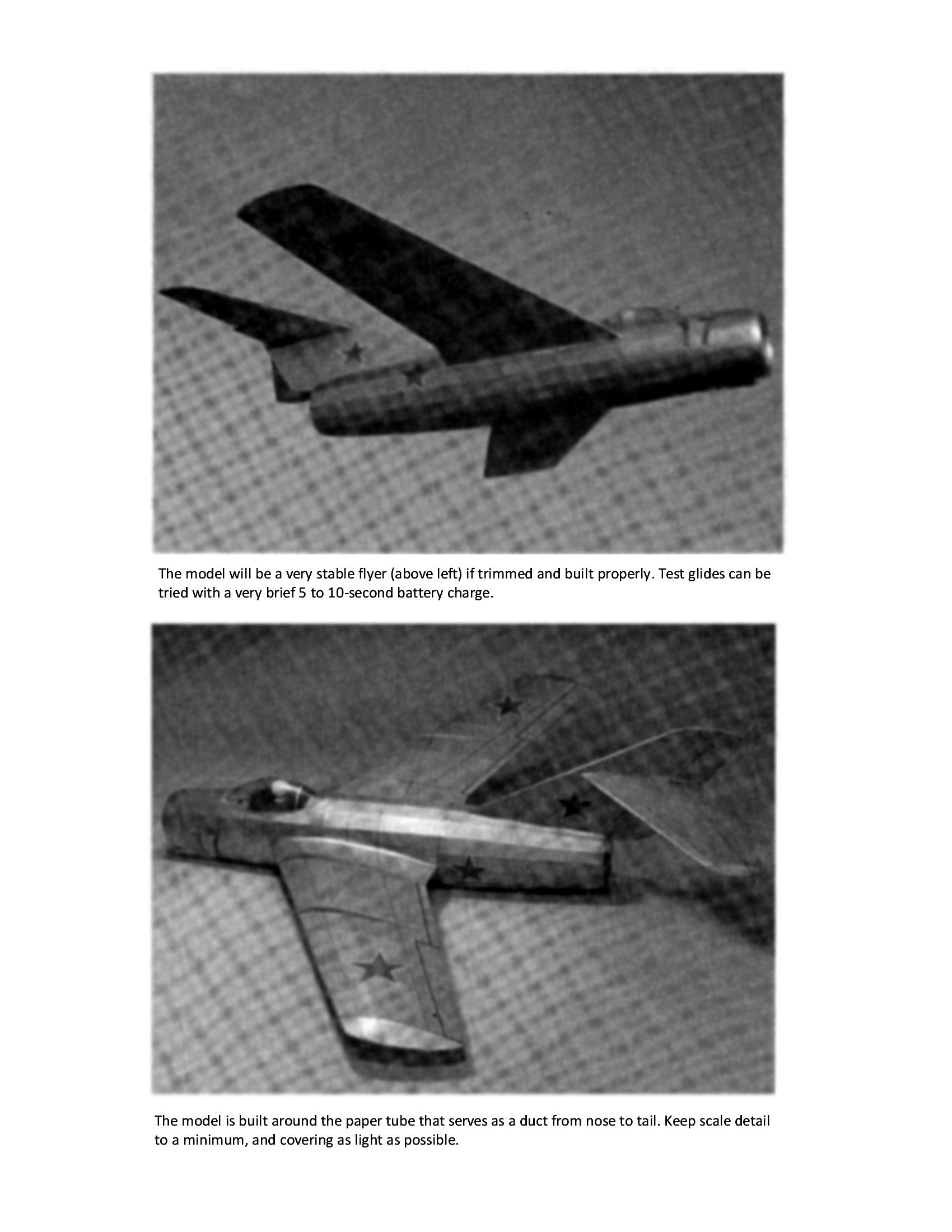

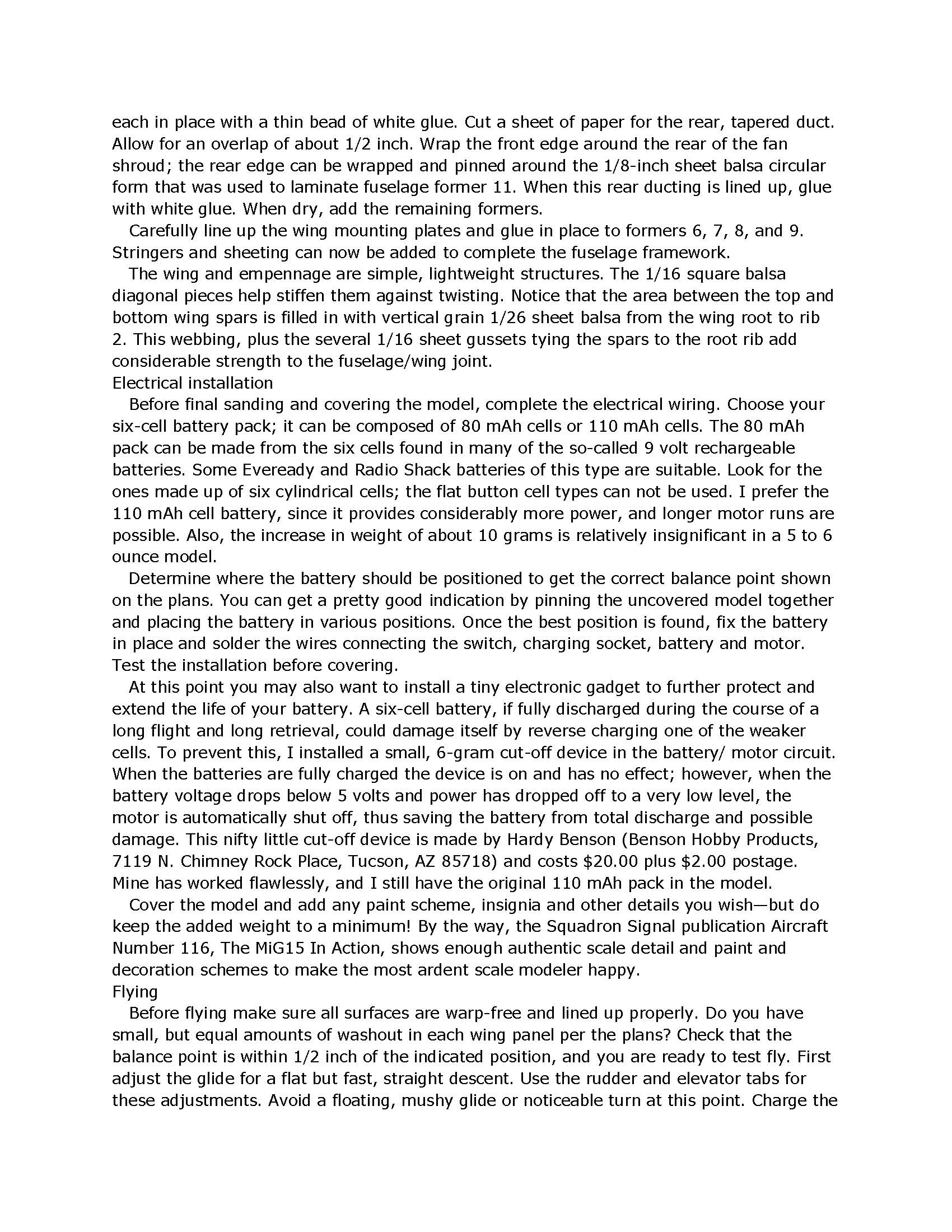

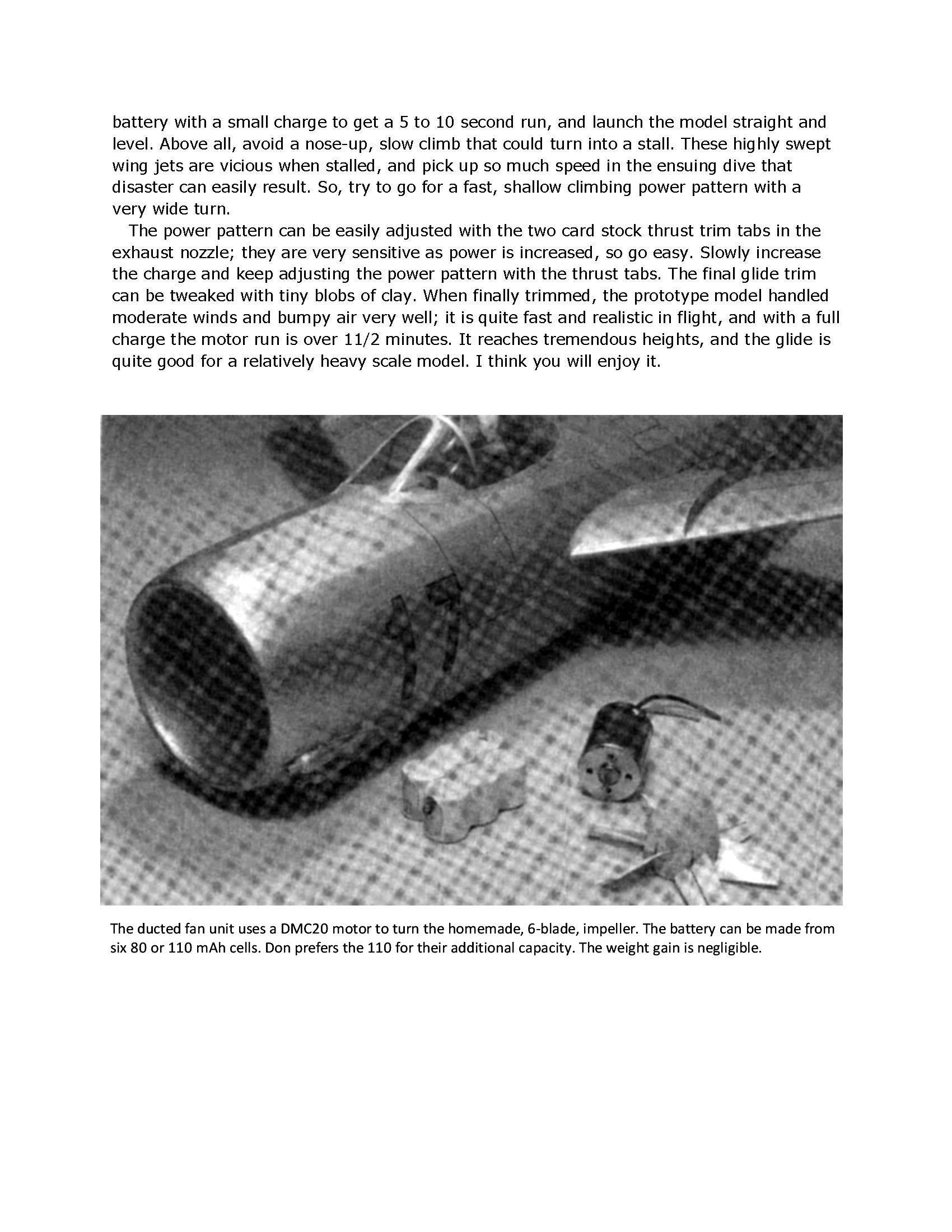

Four pages of building notes

Wingspan 24”

Power electric ducted fan

Power Electric Ducted Fan

By Don Srull

The Super Micro-Fan with an internal diameter of 2 ¼ inches. Performance turned out to exceed my expectations; at the beginning of a run over 20,000 rpm, and between 2 and 3 ounces of thrust are produced. A five to six ounce model can be flown with authority with the unit

I selected the often-modeled MiG-15 3:s a subject to try out the new Super Micro-Fan system.. Aside from being one of the all-time classic aircraft, the full size MIG-15's ultimate simplicity and purposeful design make it an ideal ducted fan modeling subject. The model shown here, at 24 inches span, and a wing area of 125 square inches, performs very well with the Super Micro-Fan system.
