Full Size Printed Plan & Building Notes
No material plans only
Gotcha Psycho
Two generations of competition expertise and devotion produce an outstanding Nats Combat winner. Can be built for Fast or Slow.
Full size printed plan on a sheet 44” x 34”

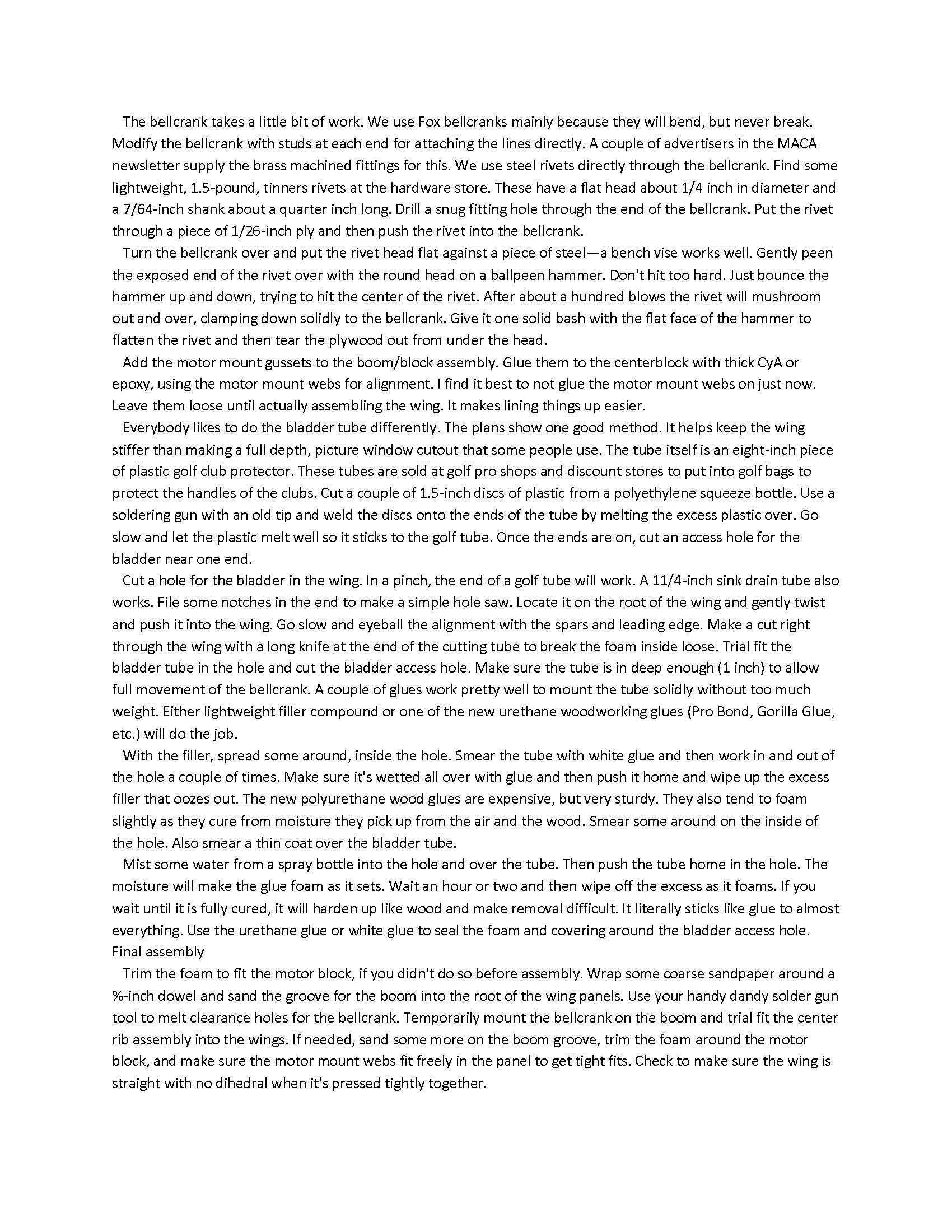

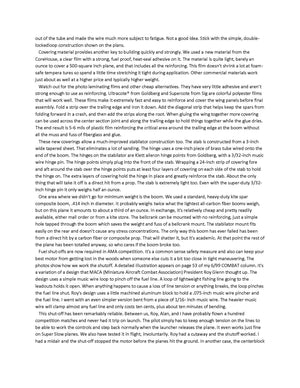

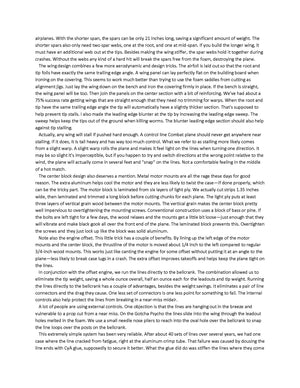

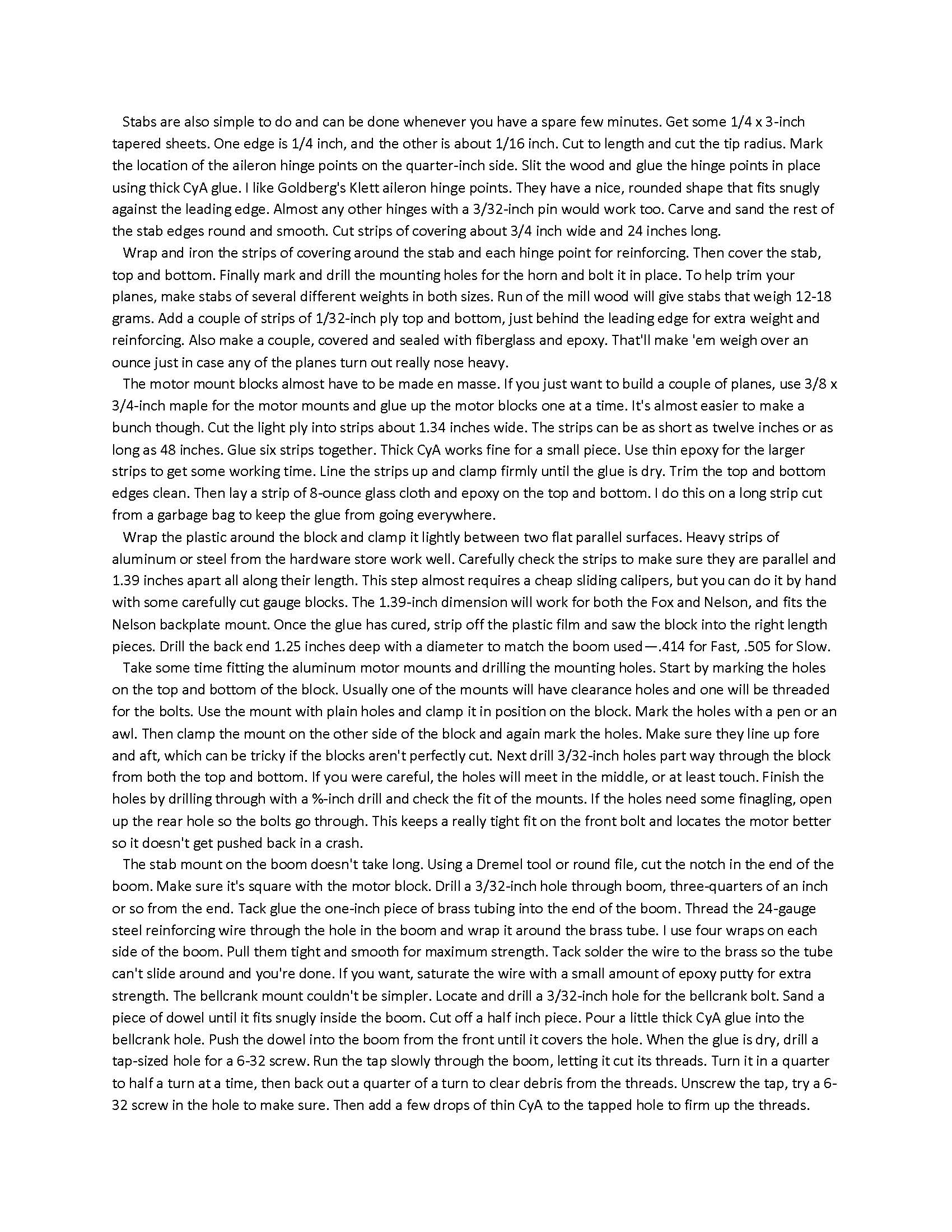

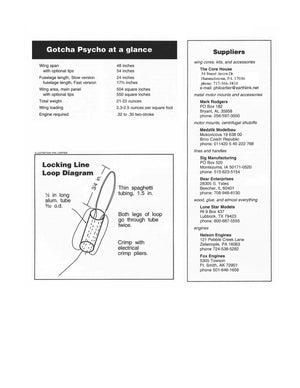

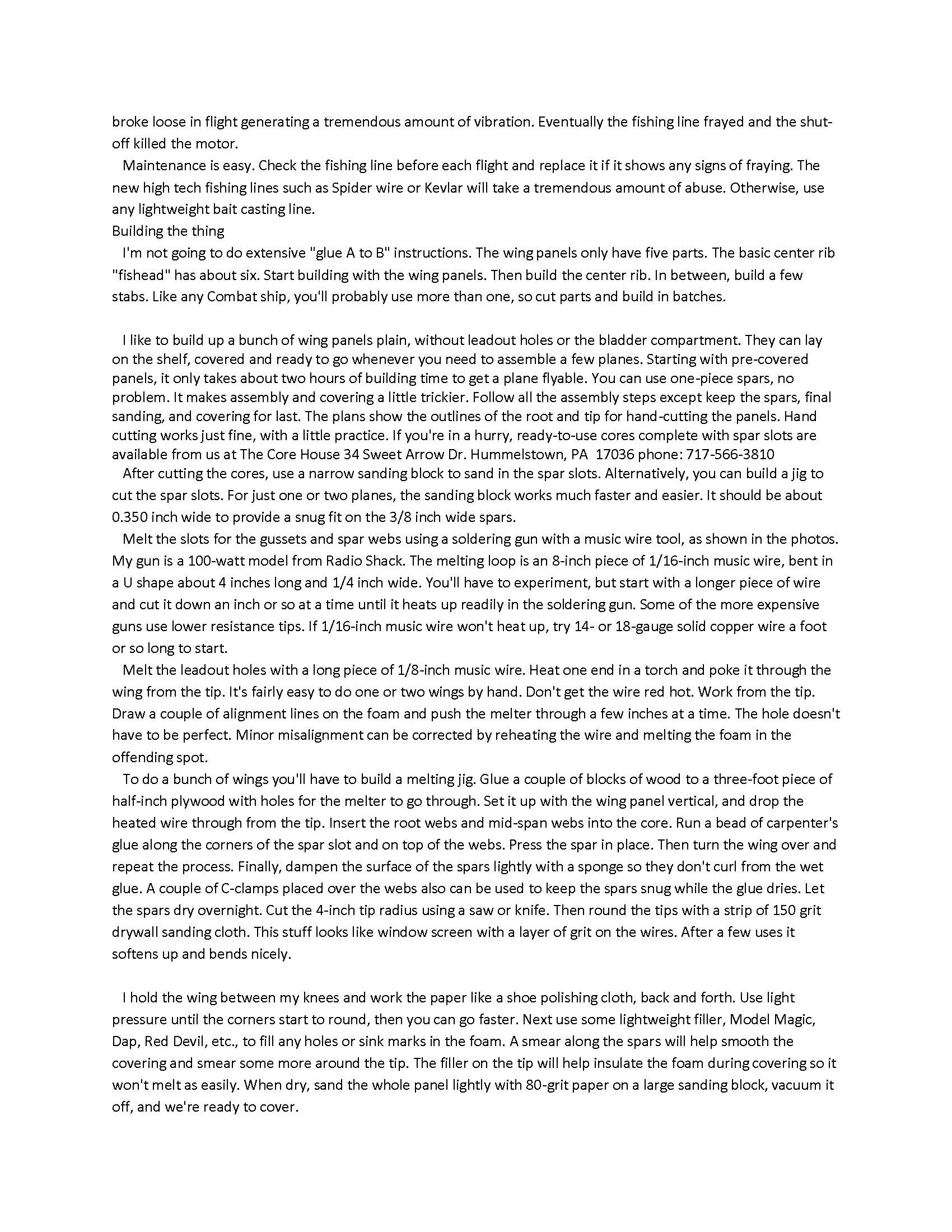

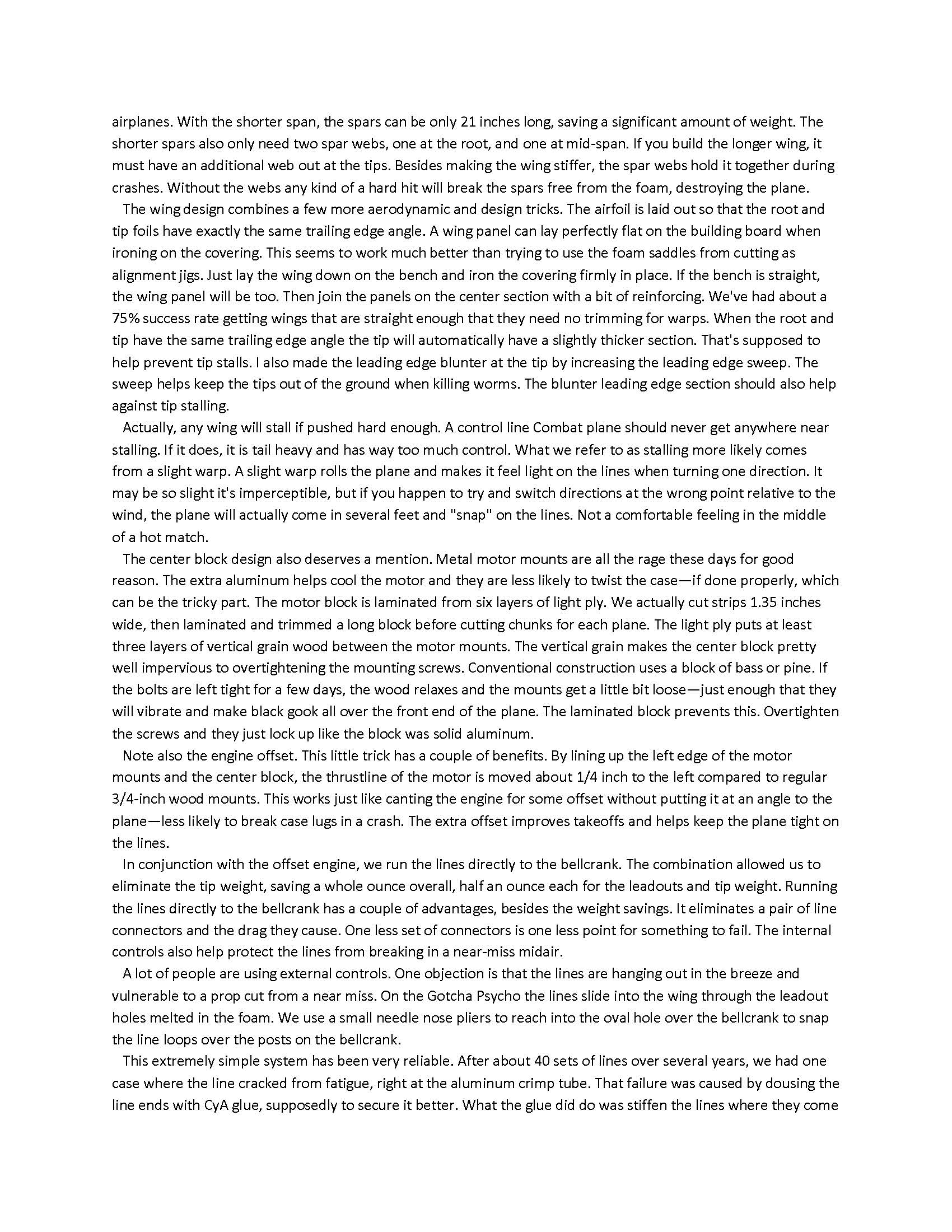

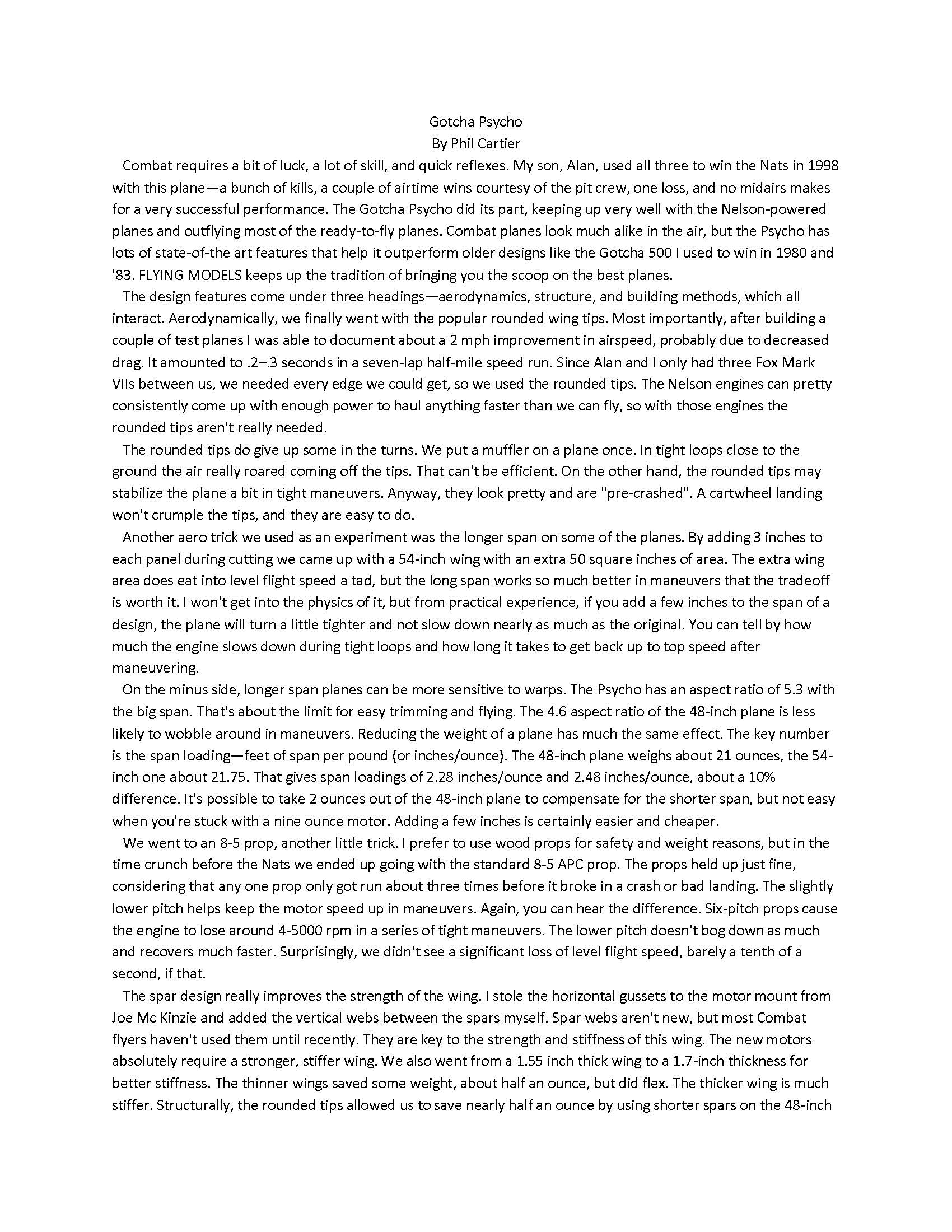

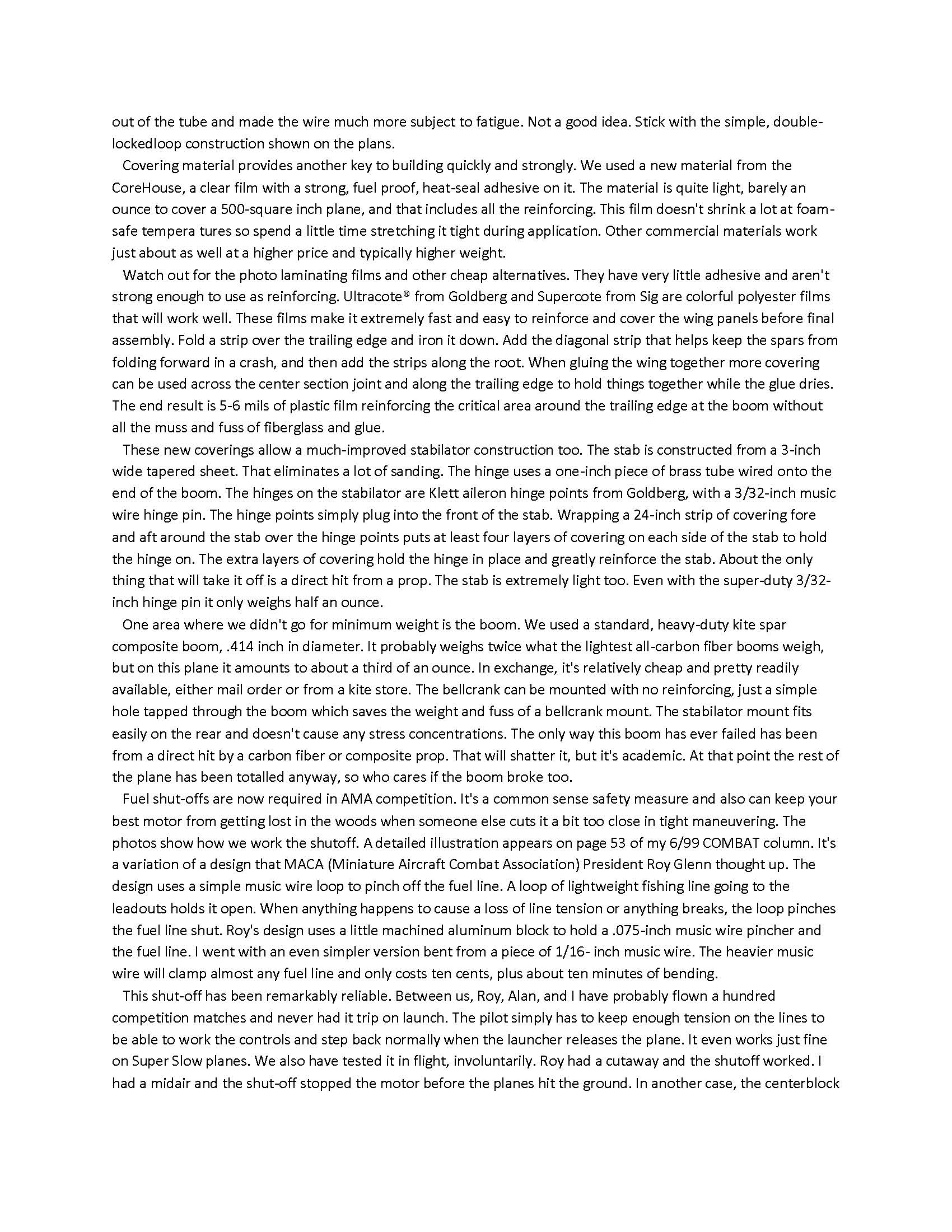

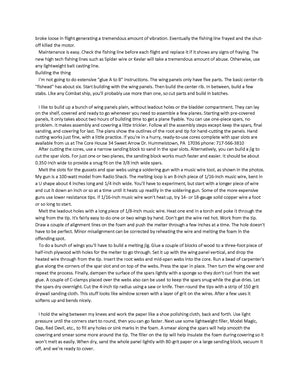

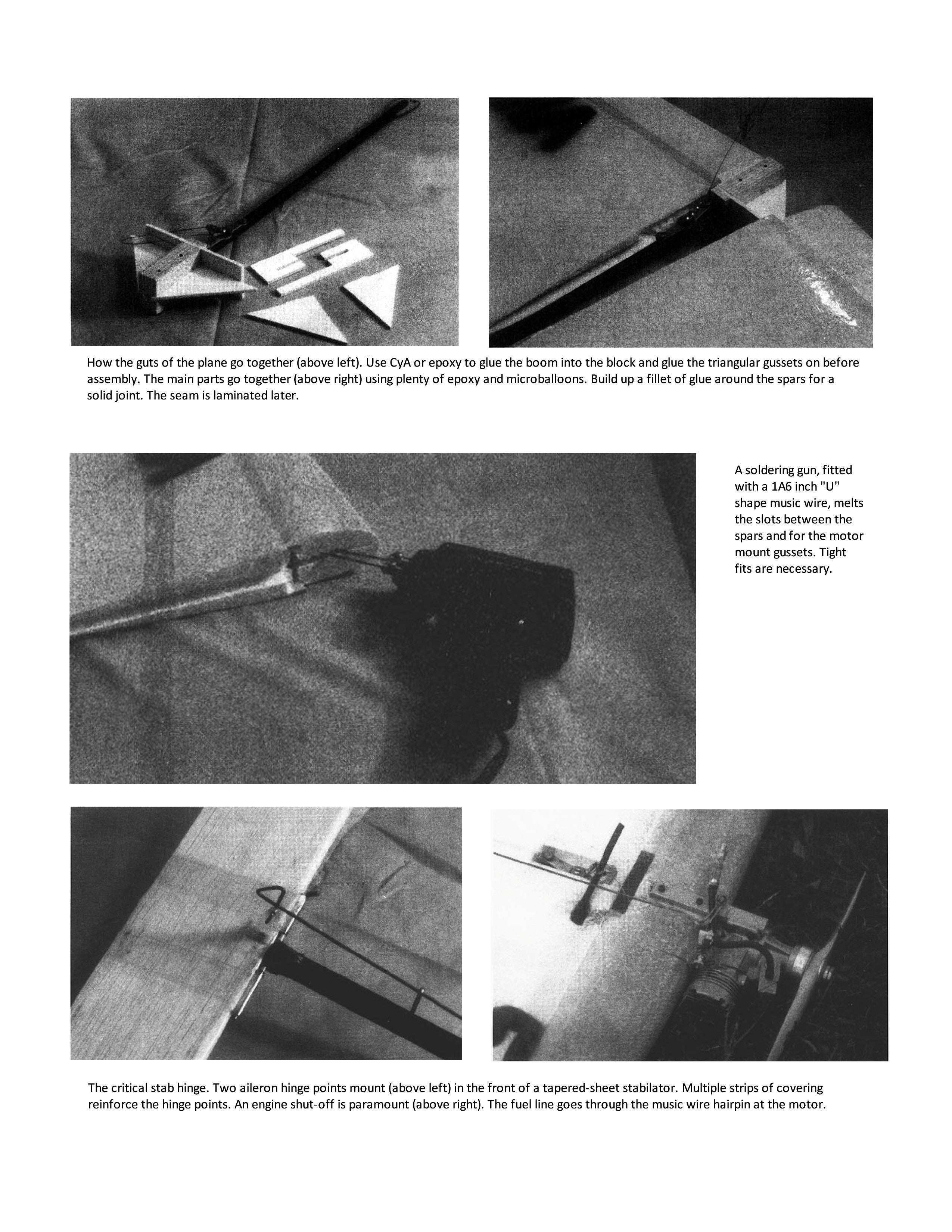

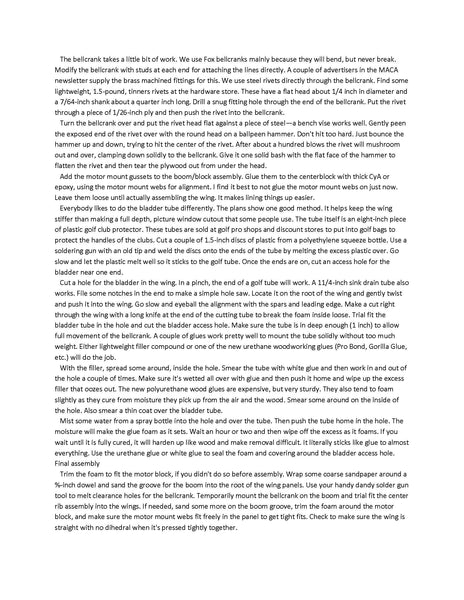

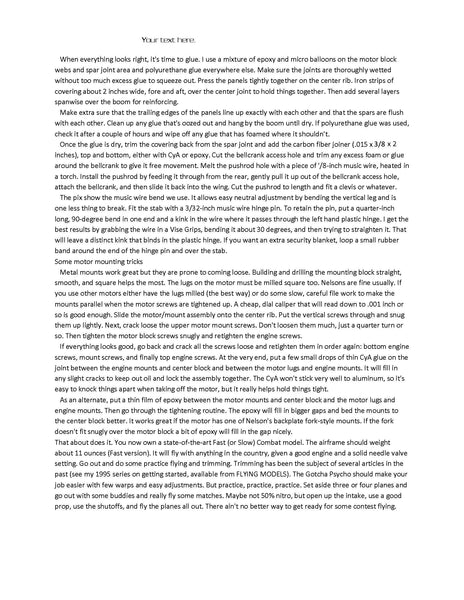

Nine page article with building notes
For those wishing to build a kit Please contact
The Core House 34 Sweet Arrow Dr. Hummelstown, PA 17036 phone: 717-566-3810

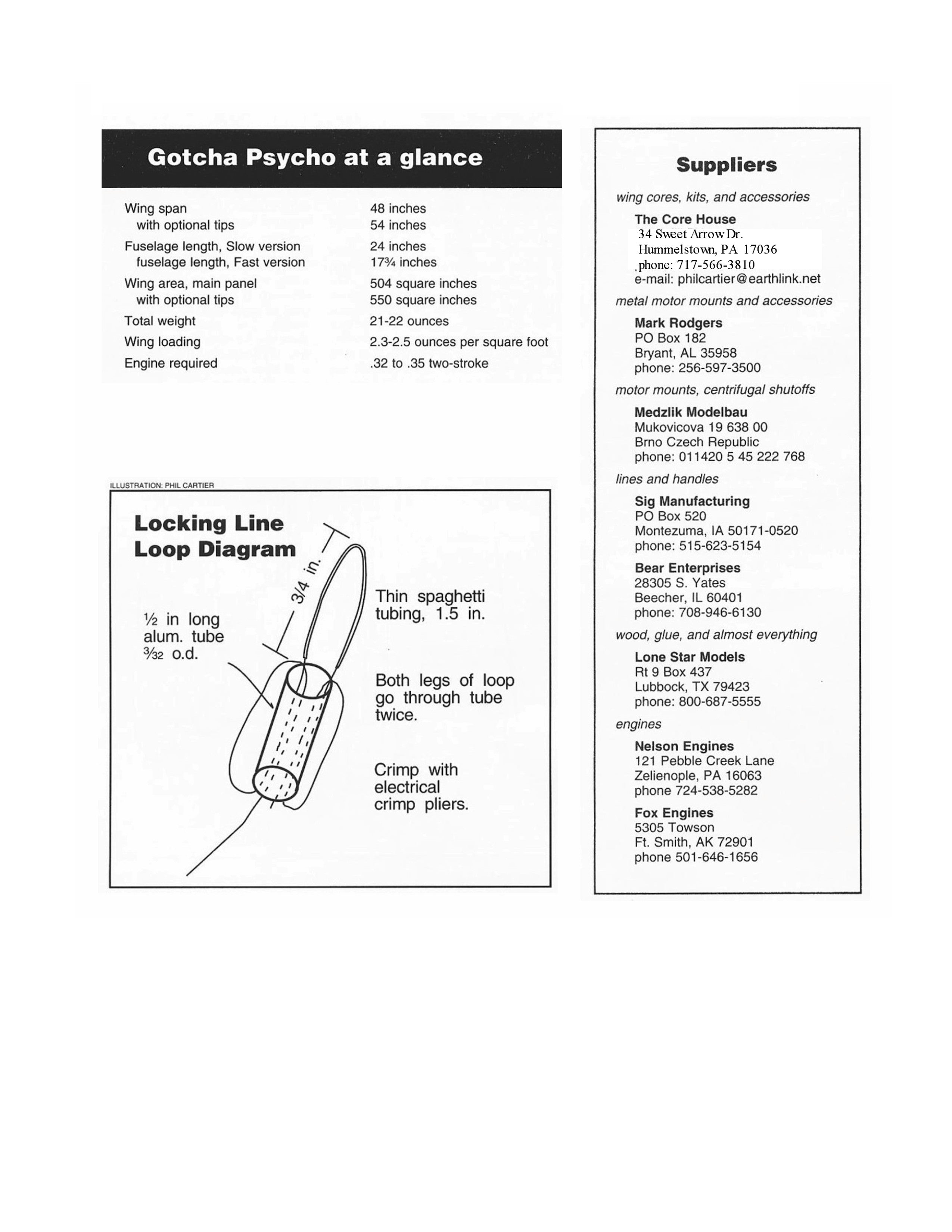

Control Line Combat fast or Slow
Wing span 48inches
with optional Ups 54inches
Fuselage length, Slow version 24inches
Fuselage length, Fast version 173/4 inches
Wing area, main panel 504 square inches
with optional tips 550 square inches
Total weight 21‑22 ounces
Wing loading 2.3‑2.5 ounces per square foot
Engine required .32 to .35 two‑stroke
By Phil Cartier
Combat requires a bit of luck, a lot of skill, and quick reflexes. My son, Alan, used all three to win the Nats in 1998 with this plane‑a bunch of kills, a couple of airtime wins courtesy of the pit crew, one loss, and no midairs makes for a very successful performance. The Gotcha Pbycho did its part, keeping up very well with the Nelsonpowered planes and outflying most of the ready-to‑fly planes. Combat planes look much alike in the air, but the Psycho has lots of state‑of‑the art features that help it outperform older designs like the Gotcha 500
The design features come under three headings aerodynamics, structure, and building methods, which all interact. Aerodynamically, we finally went with the popular rounded wing tips. Most importantly, after building a couple of test planes I was able to document about a 2 mph improvement in airspeed, probably due to decreased drag. It amounted to.2‑.3 seconds in a seven‑lap half mile speed run.
THANK YOU FOR LOOKING
