Regular price $7.95
Unit price  per

Description

This listing is for Full Size Printed Plans

HEATH 2B

First of several fine new Peanuts by the author, he has followed Walt Mooney's three-views of Ed Heath's tiny biplane in every structural detail, and it flies well to boot!

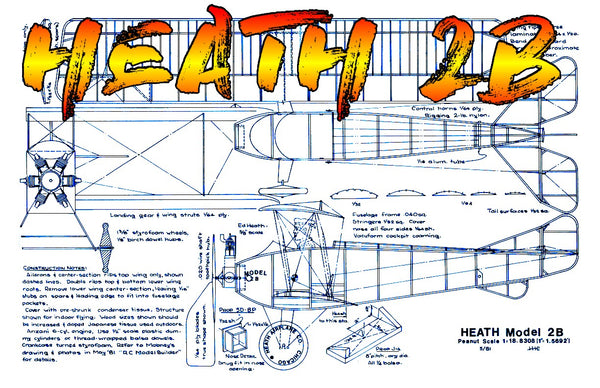

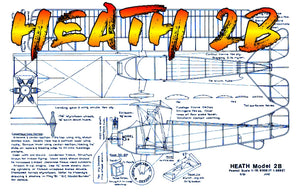

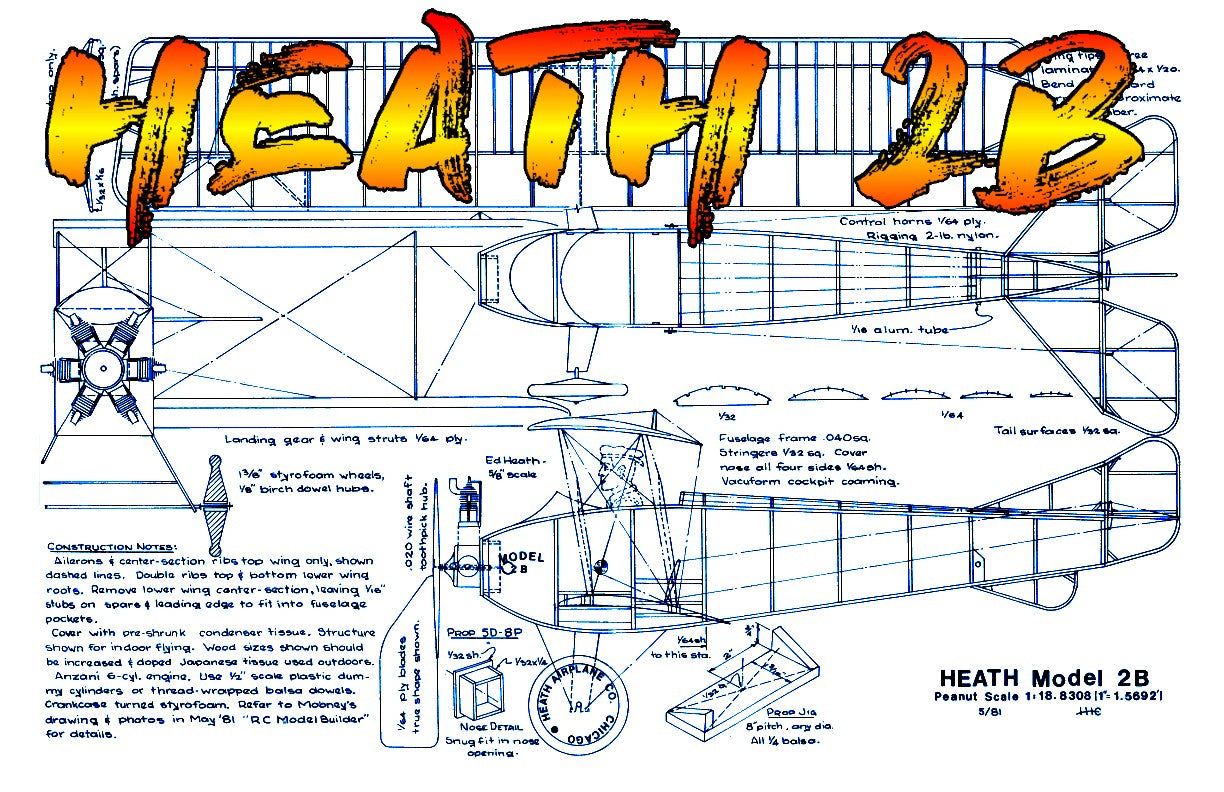

Full size printed plan on a sheet 17” x 11”

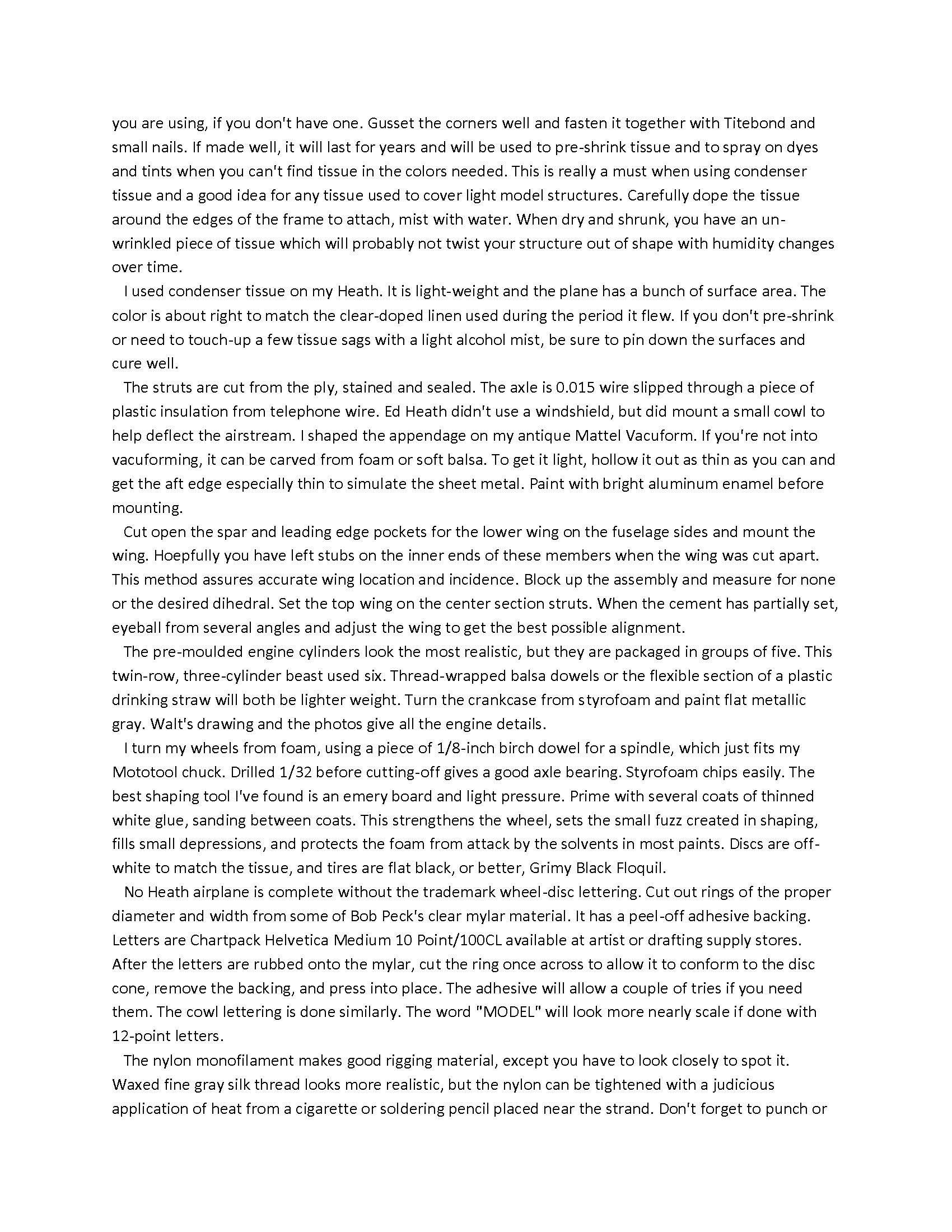

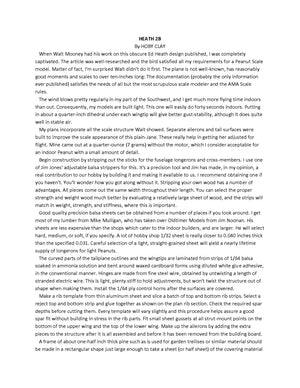

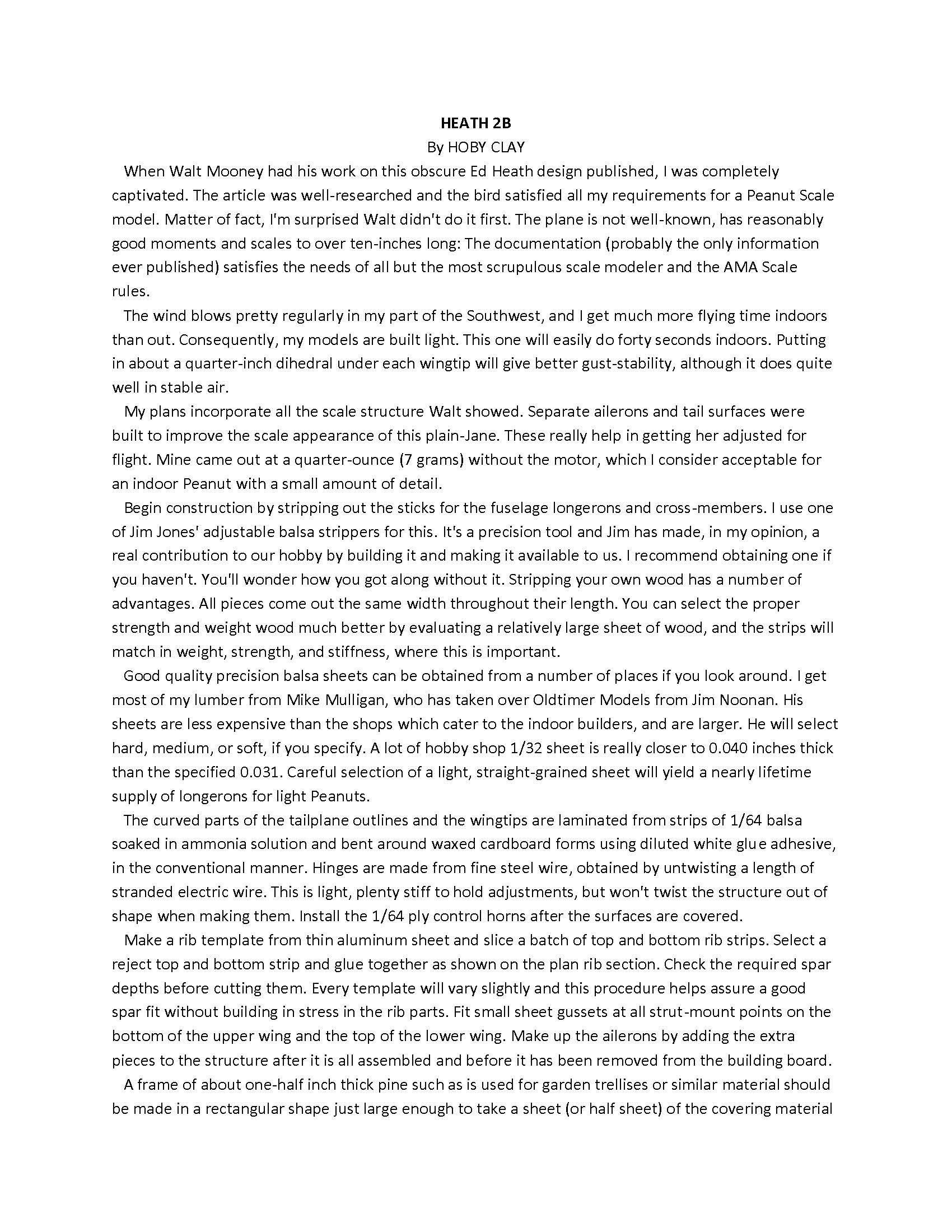

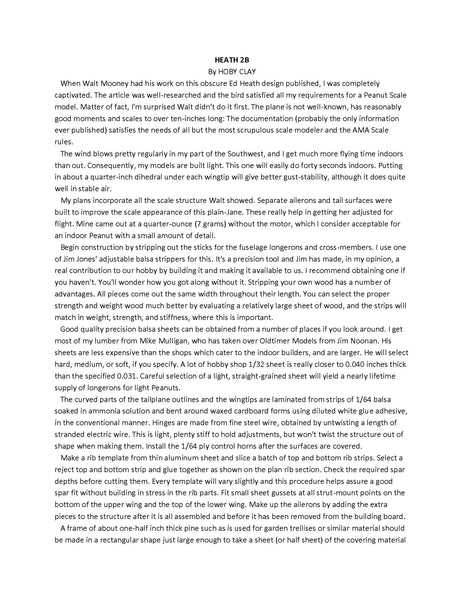

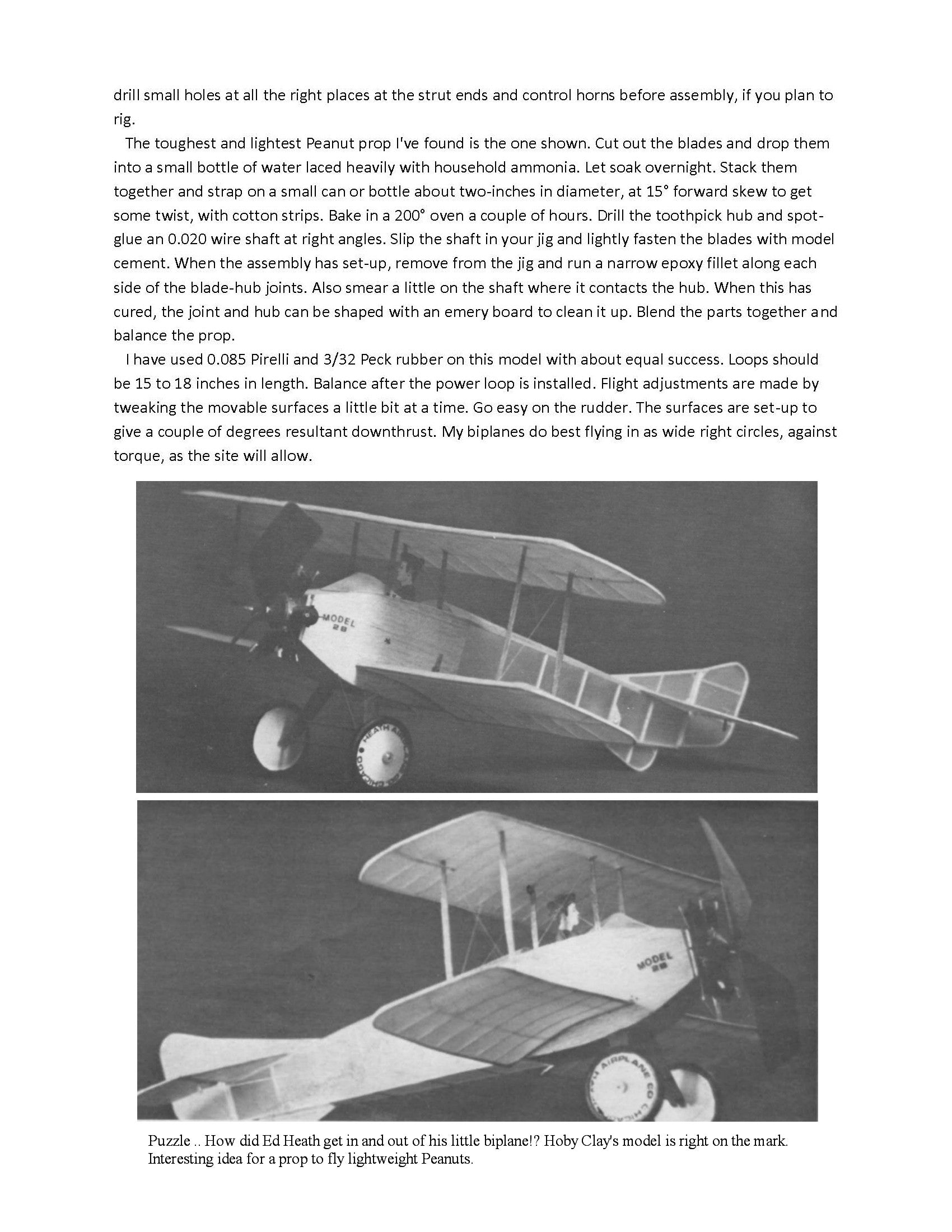

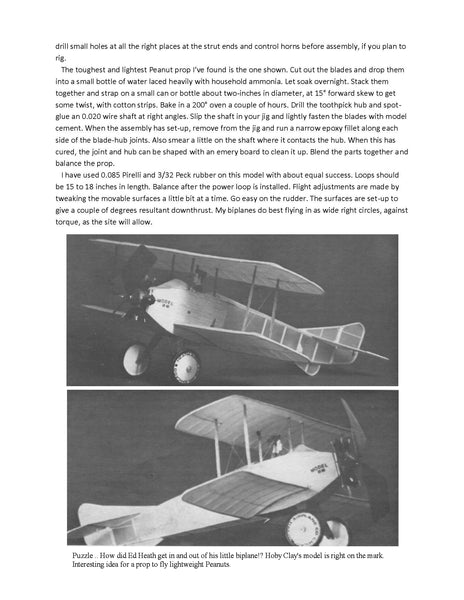

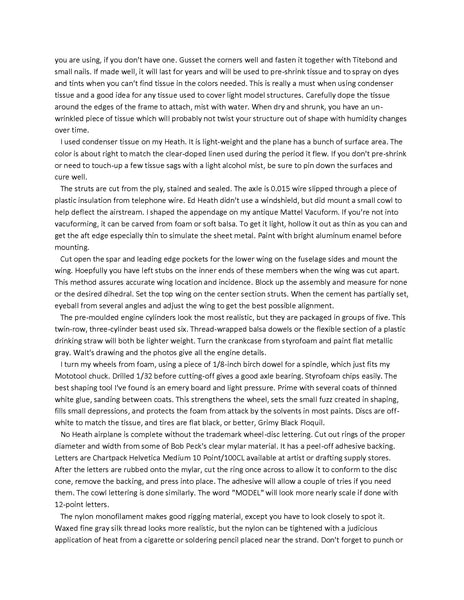

Three page article with building notes and photos

Peanut Scale

Wingspan 13”

Power Rubber

By HOBY CLAY

My models are built light. This one will easily do forty seconds indoors. Putting in about a quarter-inch dihedral under each wingtip will give better gust-stability, although it does quite well in stable air.

   My plans incorporate all the scale structure Walt showed. Separate ailerons and tail surfaces were built to improve the scale appearance of this plain-Jane. These really help in getting her adjusted for flight. Mine came out at a quarter-ounce (7 grams) without the motor, which I consider acceptable for an indoor Peanut with a small amount of detail.

Thank you for looking
