Regular price $7.95
Unit price  per

Description



Full size printed plans No material

ITOH 62-160

This Peanut version of a 1960's Japanese light plane is designed to break down for shipping to Postal Proxy Peanut contests. Plans show how to make a shipping box from a single sheet of 1/4-inch balsa.

Full size printed plan on a sheet 11” x 17”

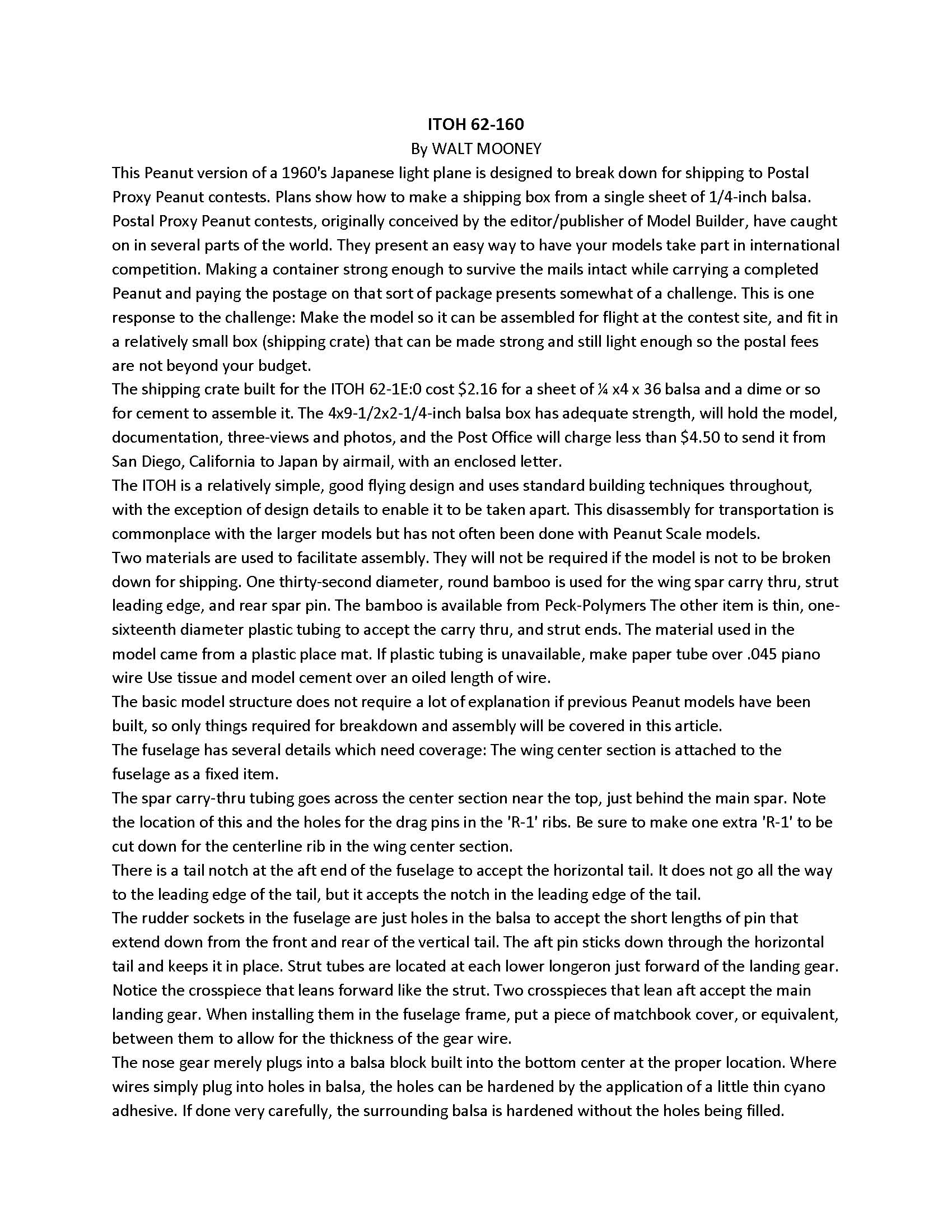

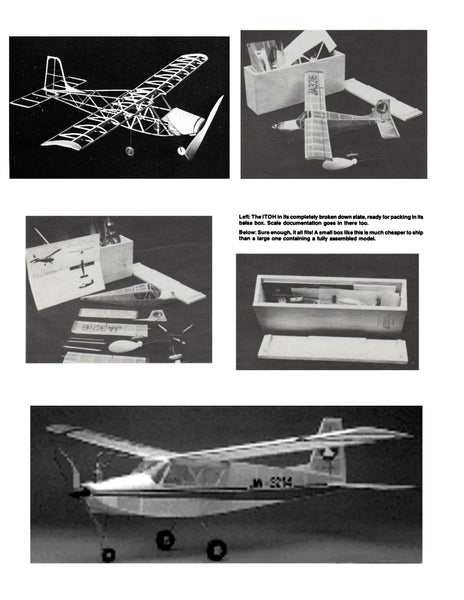

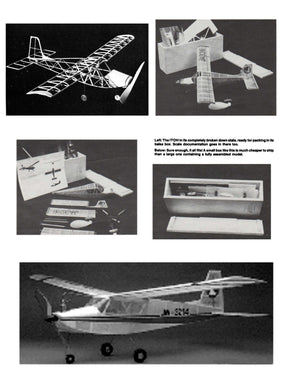

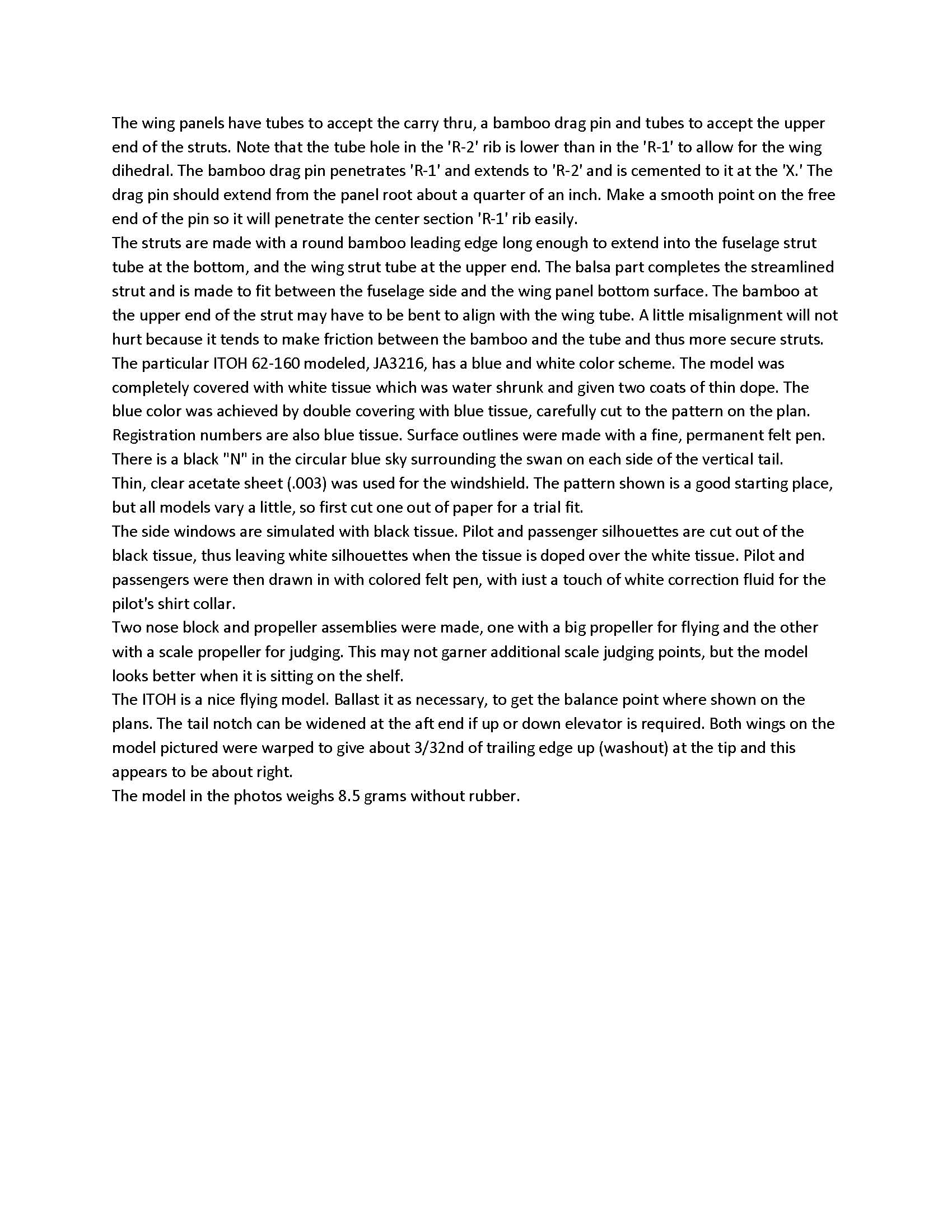

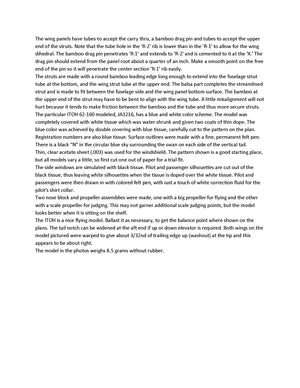

Three page article with building notes and photos

Peanut Scale

Wingspan 13”

Power Rubber

By WALT MOONEY .

The ITOH is a relatively simple, good flying design and uses standard building techniques throughout, with the exception of design details to enable it to be taken apart. This disassembly for transportation is commonplace with the larger models but has not often been done with Peanut Scale models.

The basic model structure does not require a lot of explanation if previous Peanut models have been built, so only things required for breakdown and assembly will be covered in this article.
