Full size Printed Plans Scale 1:10 Control line CLIYE HALL'S BUCKER JUNGMEISTER

Full size Printed Plans & Article

Not a KIT or MODEL No Material

Reproduced Vintage Plan From 1963

CLIYE HALL'S BUCKER JUNGMEISTER

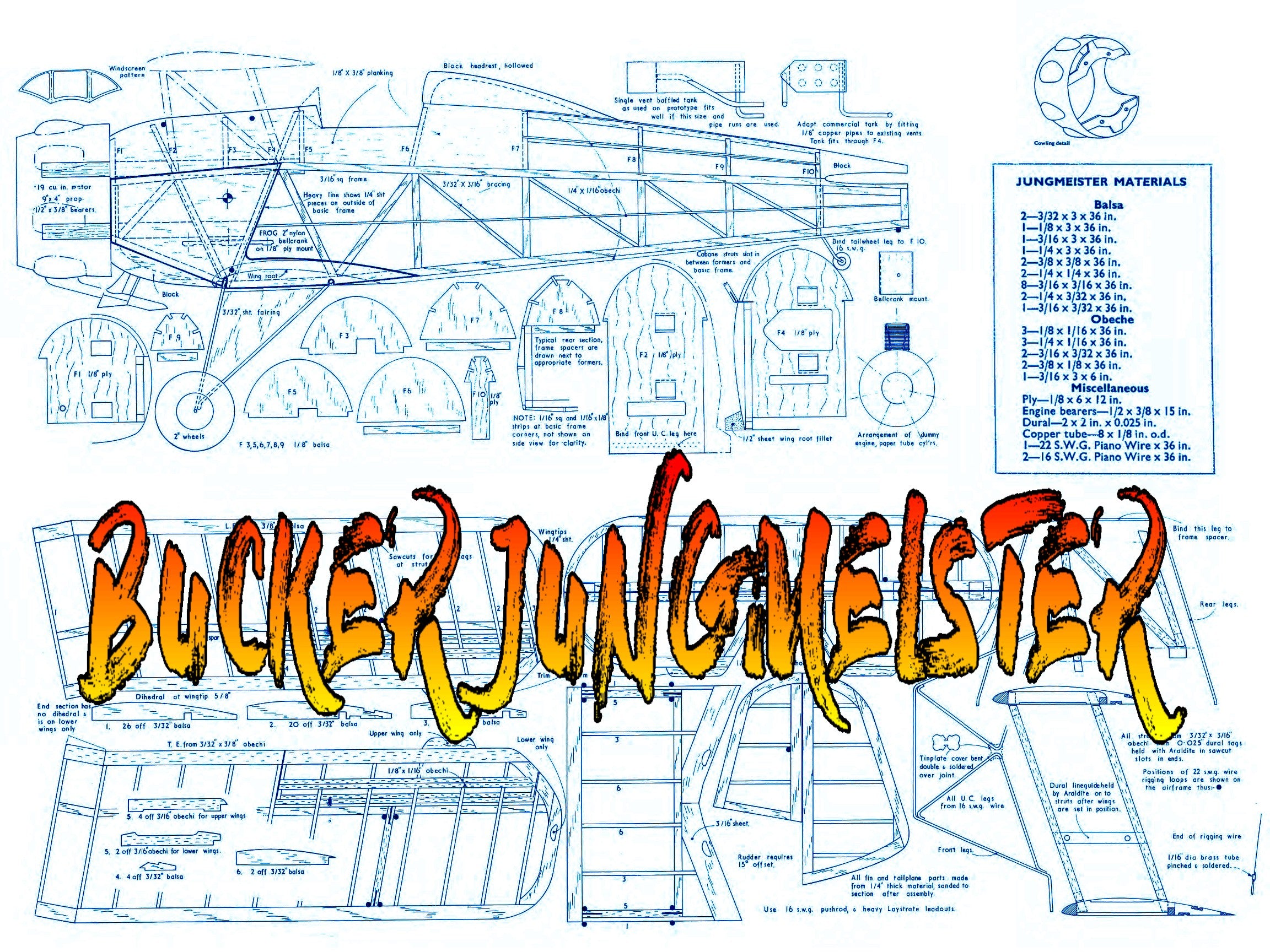

Full size printed plans on a 32” x 24” Sheet includes material list

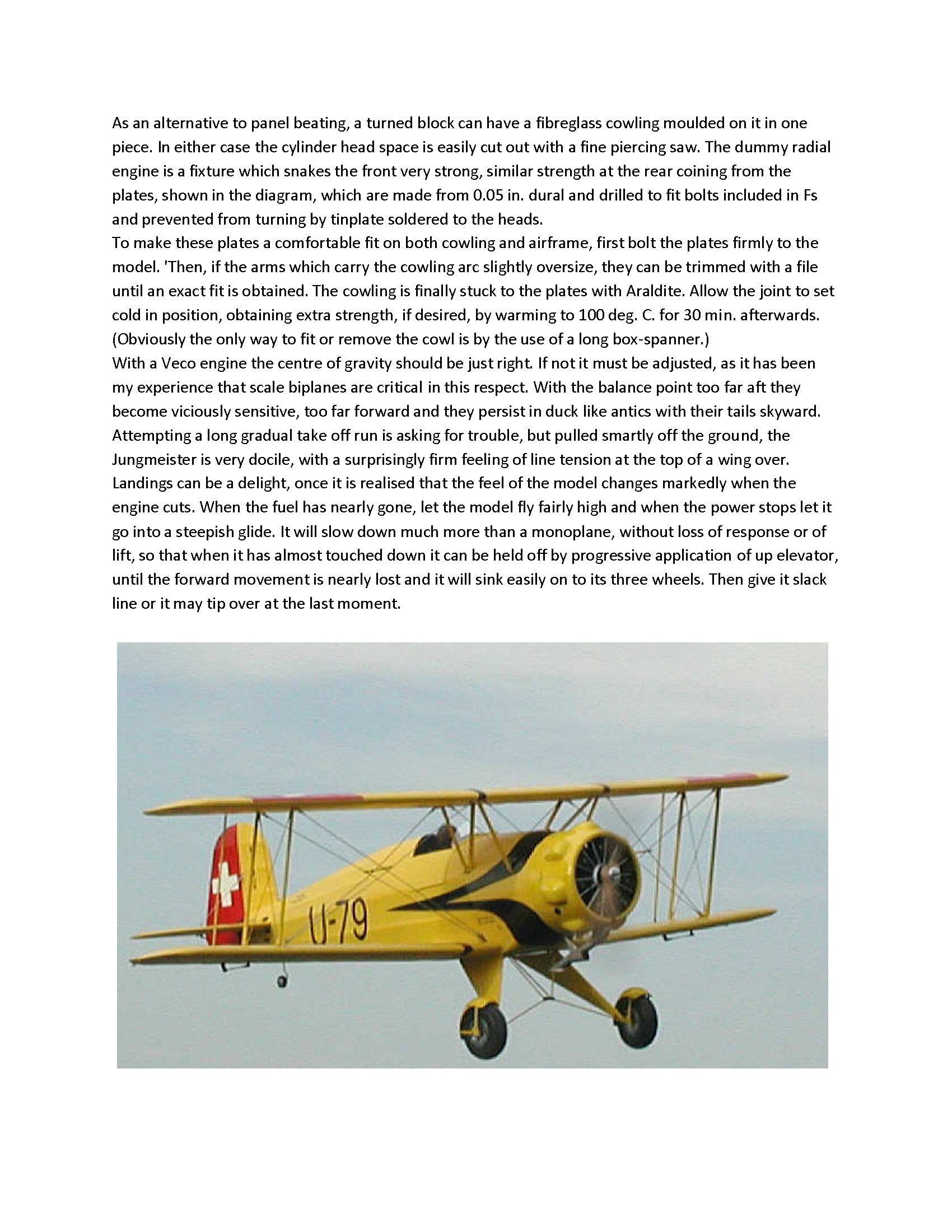

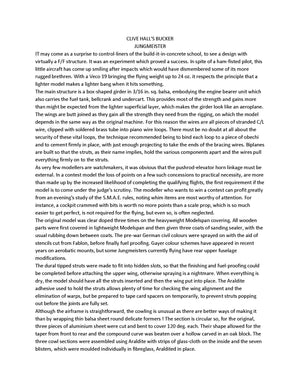

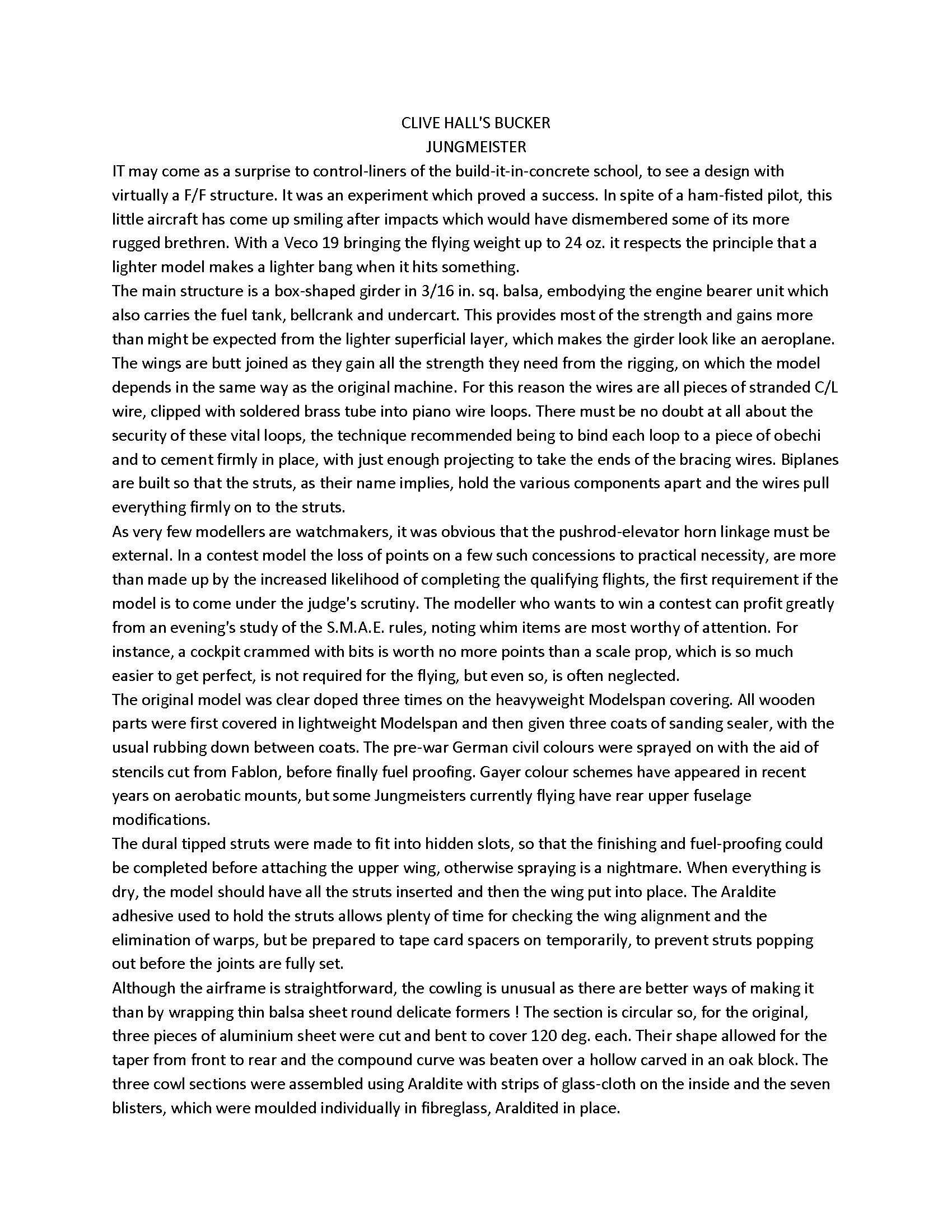

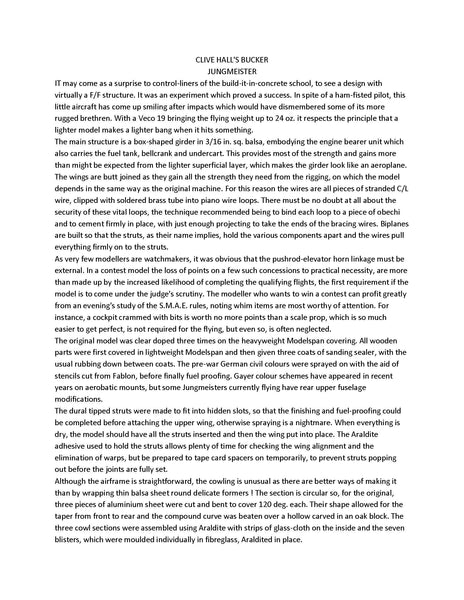

Two page article with building notes and photo

Scale 1:10

Control line

Wingspan 26”

Engine .19

   IT may come as a surprise to control-liners of the build-it-in-concrete school, to see a design with virtually a F/F structure. It was an experiment which proved a success. In spite of a ham-fisted pilot, this little aircraft has come up smiling after impacts which would have dismembered some of its more rugged brethren. 'With a Veco 19 bringing the flying weight up to 24 oz. it respects the principle that a lighter model makes a lighter bang when it hits something.

The main structure is a box-shaped girder in 3/16 in. sq. balsa, embodying the engine bearer unit which also carries the fuel tank, bellcrank and undercart. This provides most of the strength and gains more than might be expected from the lighter superficial layer, which makes the girder look like an aeroplane.
