FULL SIZE PRINTED PLANS Scale 1:192 battleship L 40" Suitable for radio control
FULL SIZE PRINTED PLANS
Full size printed plan on a sheet 42” x 36”

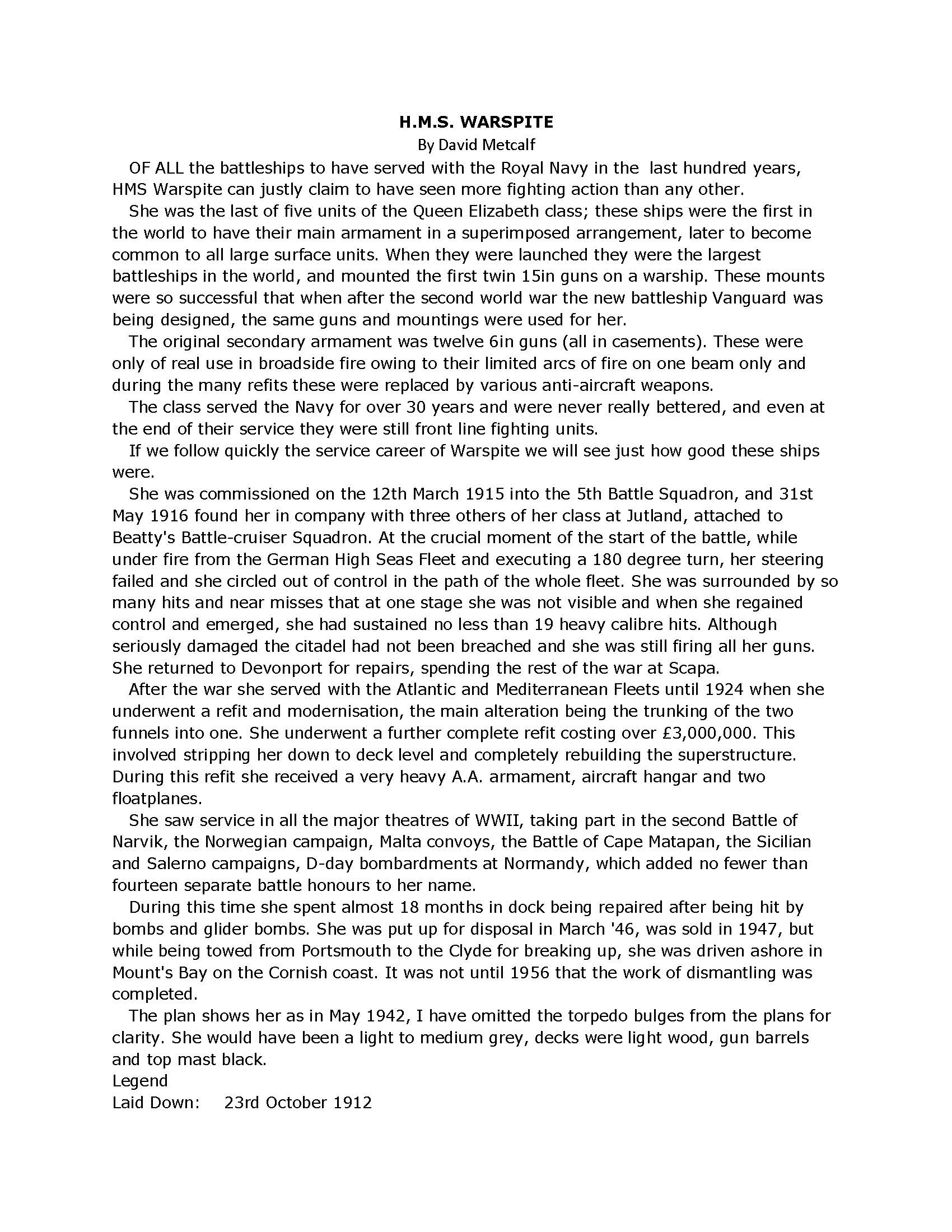

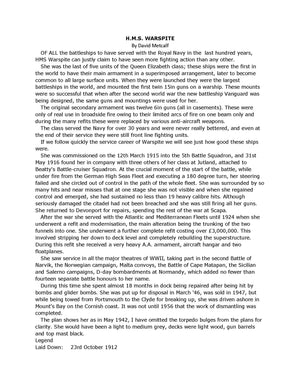

Six page article with photos
NOTE: for experience builders No Building instructions
Scale 1/16” =1ft (1:192)
Beam 6 ½”
Suitable for radio control
By David Metcalf
The plan shows her as in May 1942, I have omitted the torpedo bulges from the plans for clarity

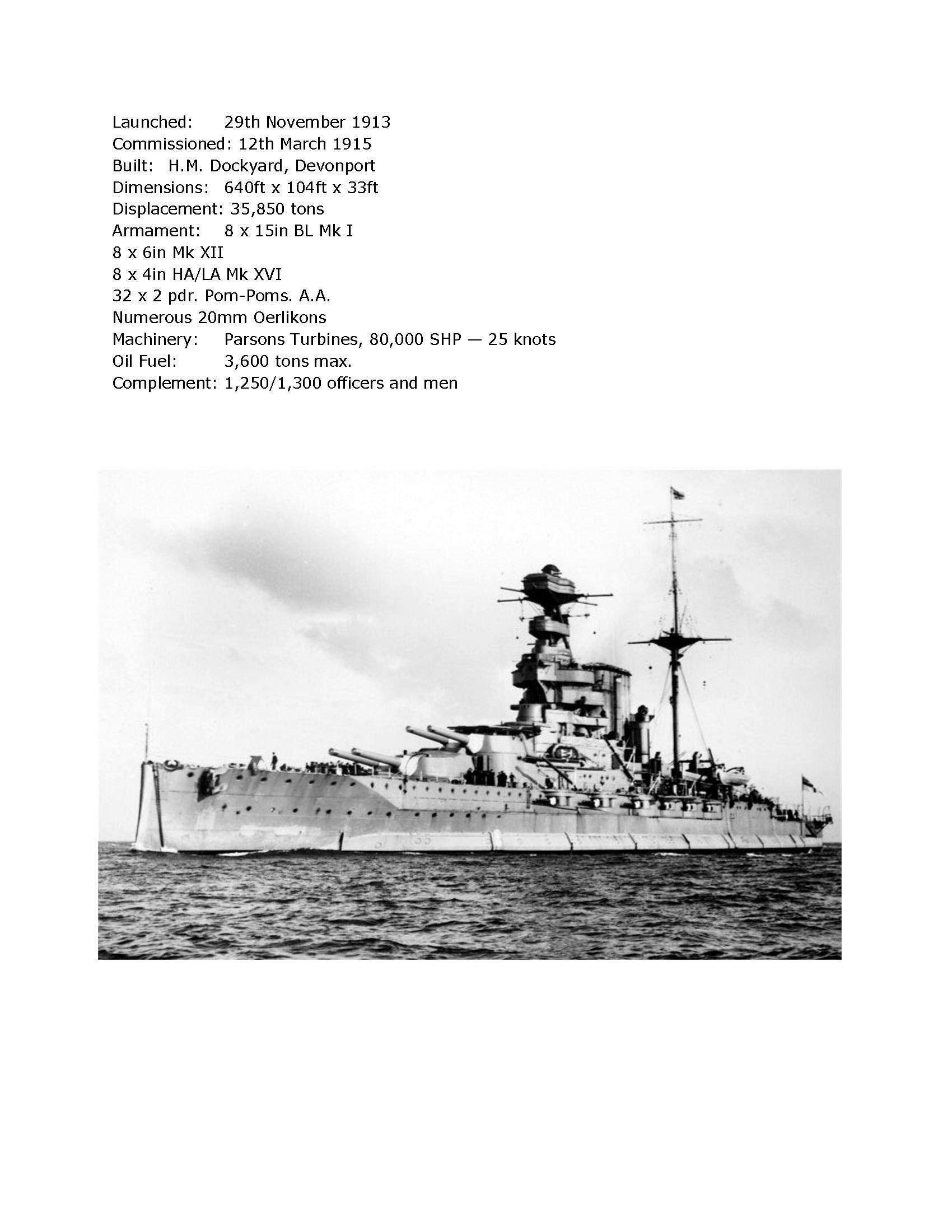

OF ALL the battleships to have served with the Royal Navy in the last hundred years, HMS Warspite can justly claim to have seen more fighting action than any other.
She was the last of five units of the Queen Elizabeth class; these ships were the first in the world to have their main armament in a superimposed arrangement, later to become common to all large surface units. When they were launched they were the largest battleships in the world, and mounted the first twin 15in guns on a warship. These mounts were so successful that when after the second world war the new battleship Vanguard was being designed, the same guns and mountings were used for her.
THANK YOU FOR LOOKING Rose
