Regular price $26.95
Unit price  per

Description

listing is for Full Size Printed Plans

CULLAMIX

FULL SIZE PRINTED PLANS  on Two SHEETS 41"x 28" and 41"x 24"

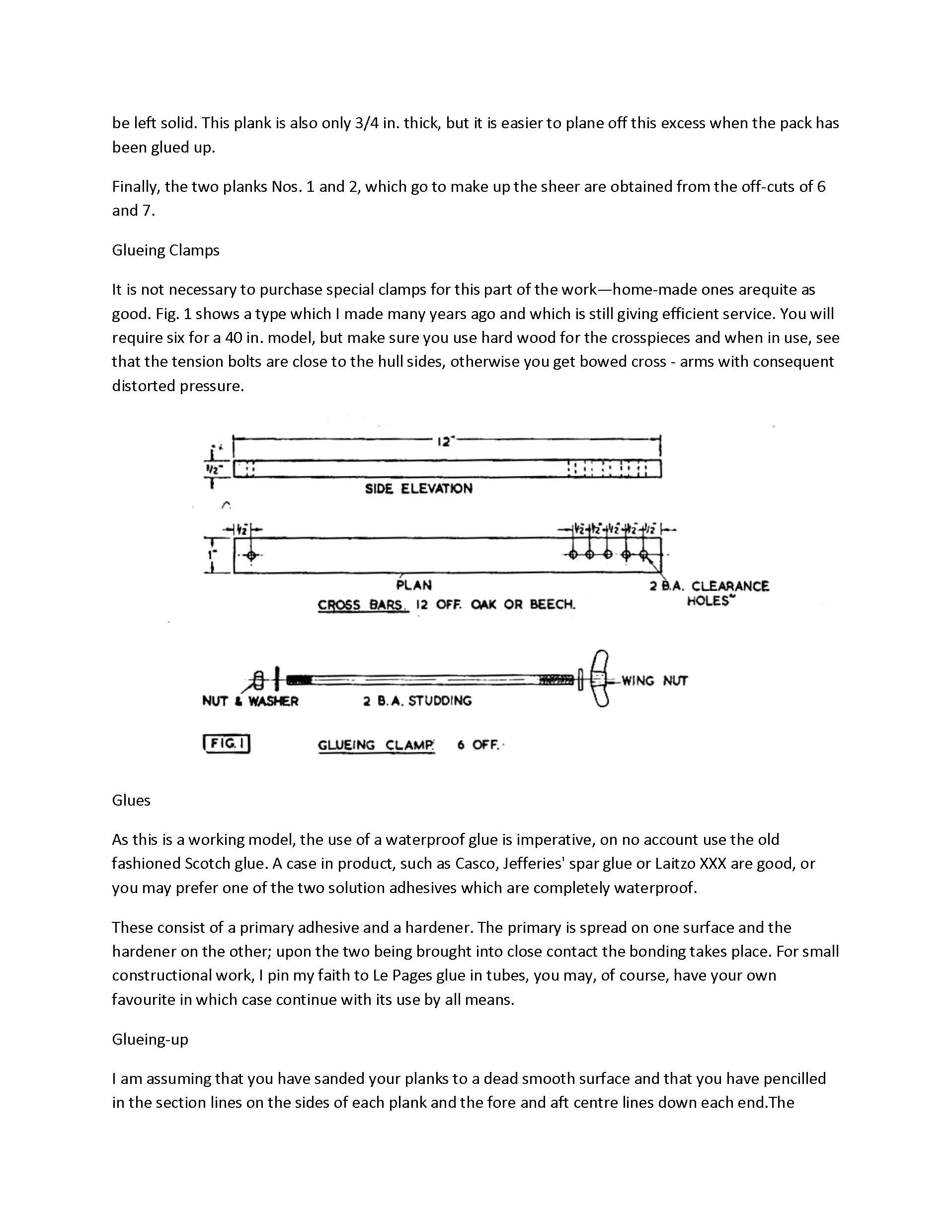

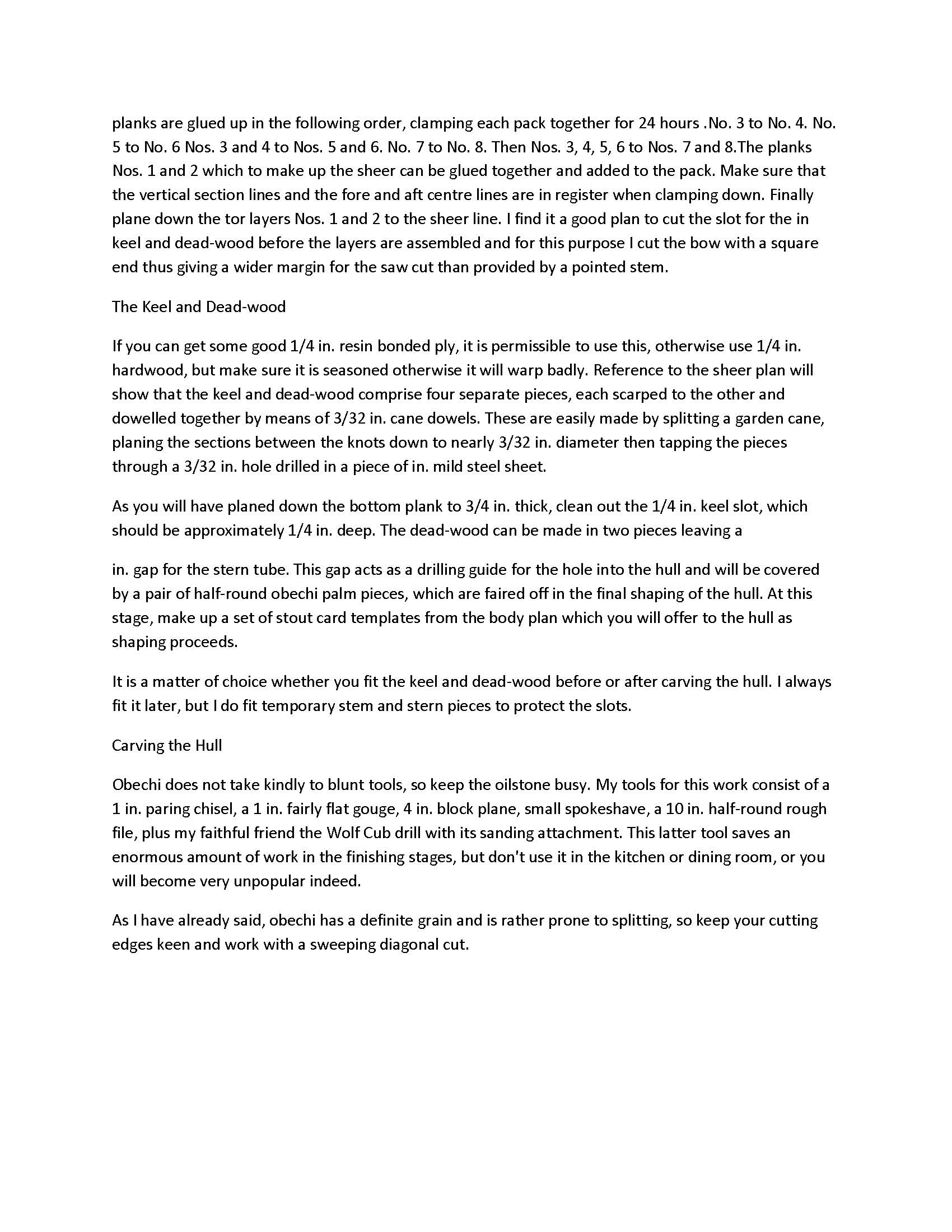

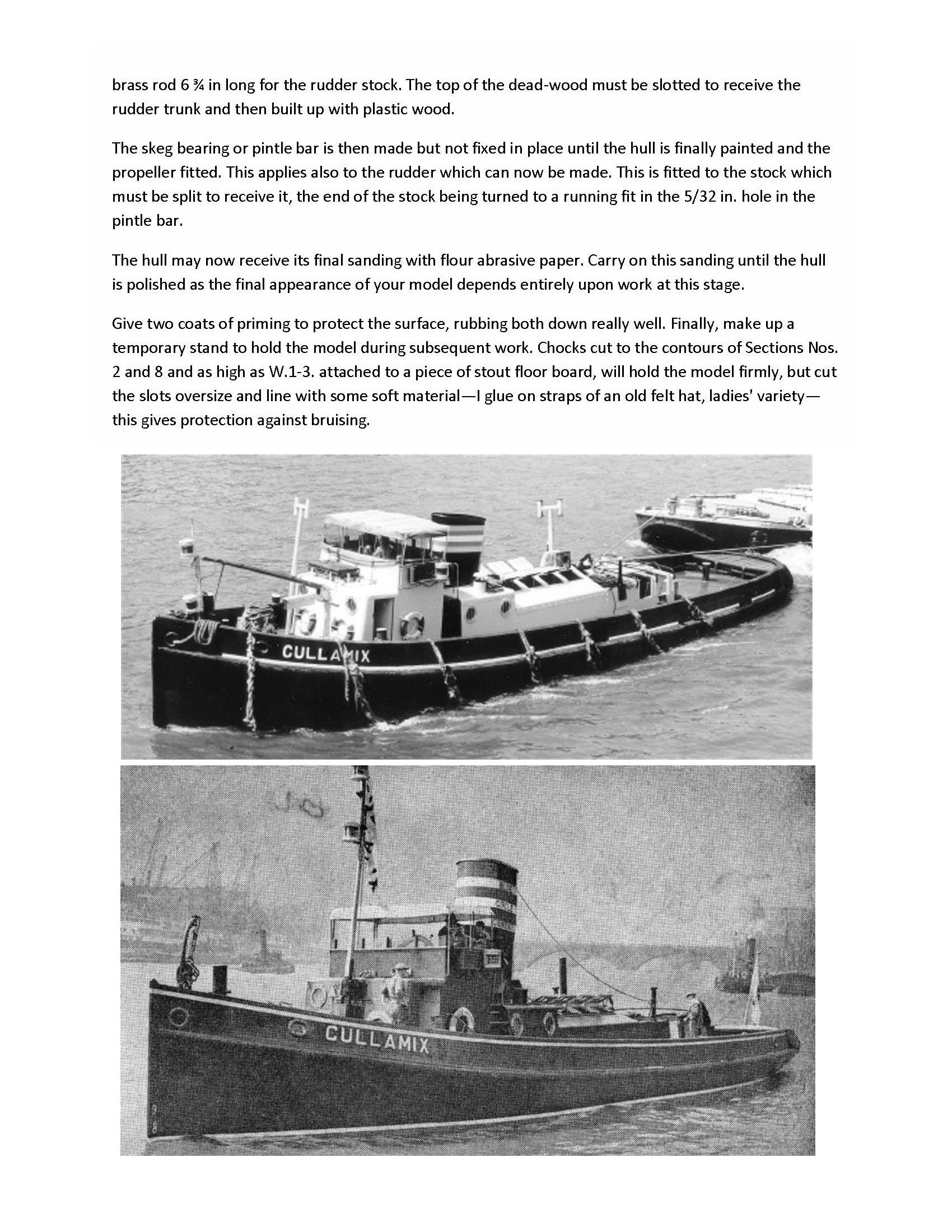

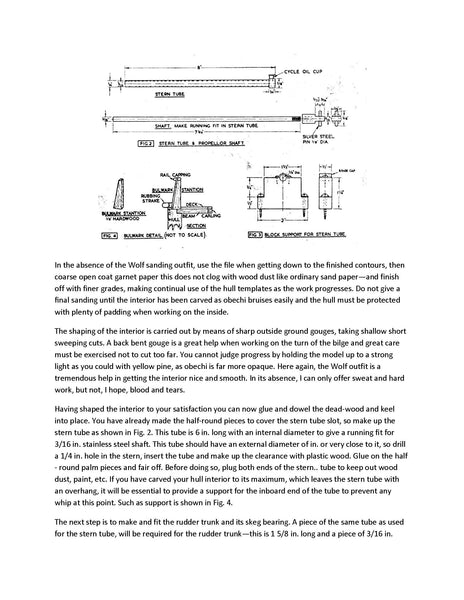

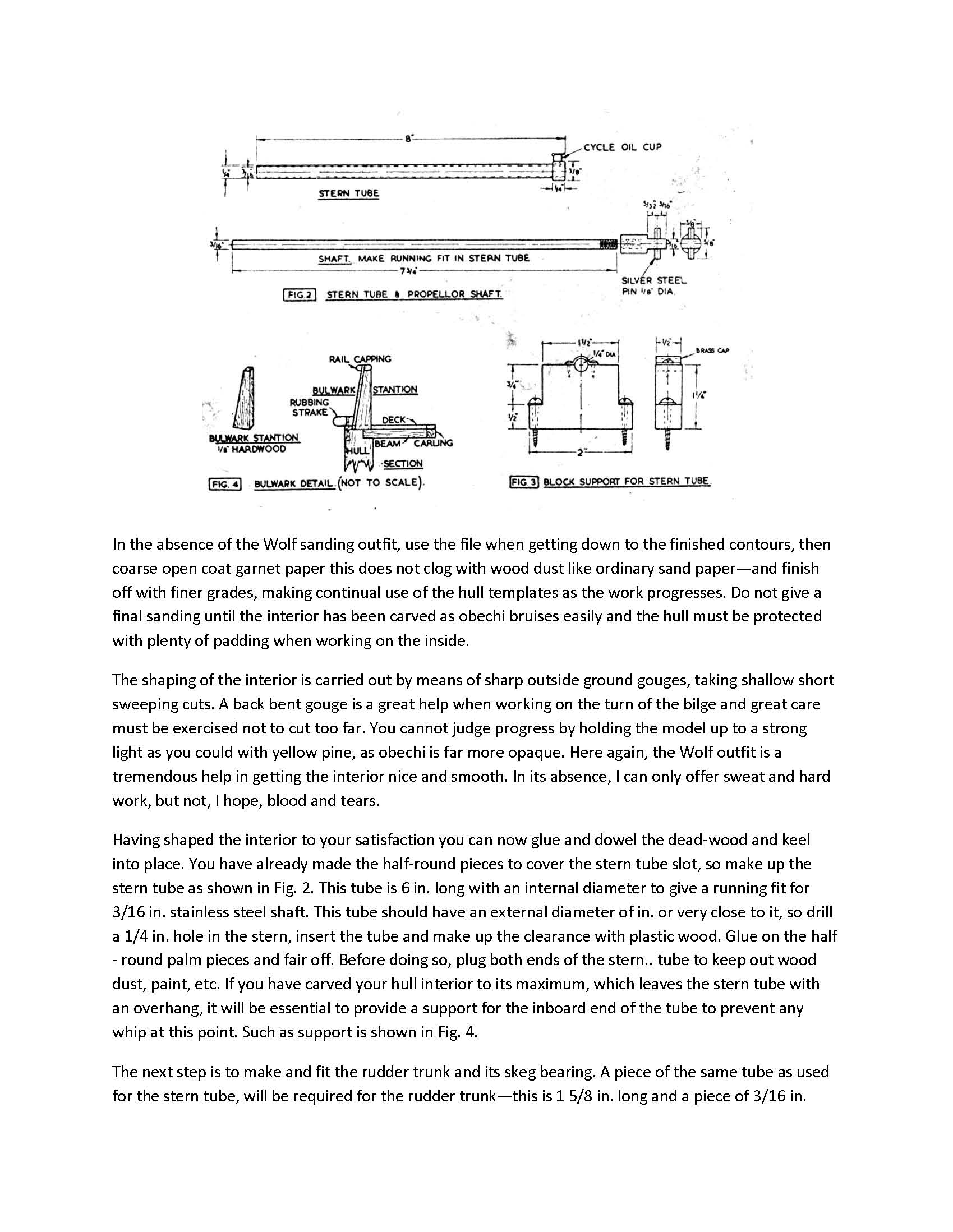

Six Page Article  with building notes and photos

Scale 1:24 1/2” = 1ft

Length 39 3/4”

Beam10”

Power Steam or Electric

Radio Control

BY BERNARD REEVE

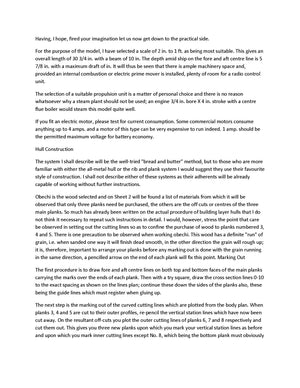

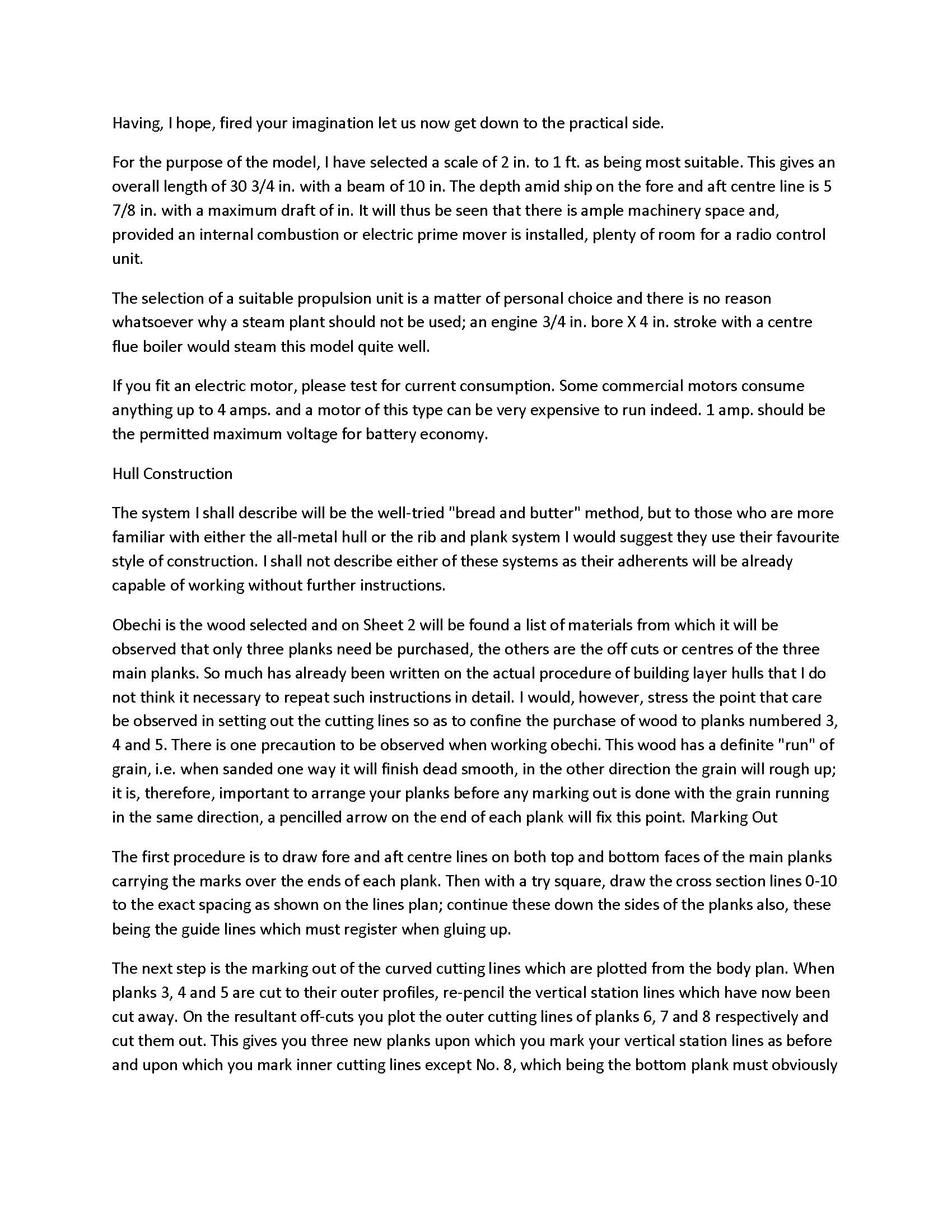

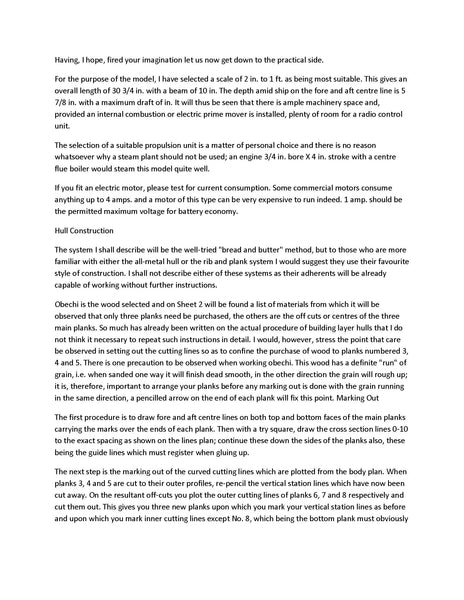

For the purpose of the model, I have selected a scale of 2 in. to 1 ft. as being most suitable. This gives an overall length of 39 3/4 in. with a beam of 10 in. The depth amid ship on the fore and aft centre line is 5 7/8 in. with a maximum draft of 4 7/8in. It will thus be seen that there is ample machinery space and, provided an internal combustion or electric prime mover is installed, plenty of room for a radio control unit.

   The selection of a suitable propulsion unit is a matter of personal choice and there is no reason whatsoever why a steam plant should not be used; an engine 3/4 in. bore X 4 in. stroke with a centre flue boiler would steam this model quite well.You fit an electric motor,.

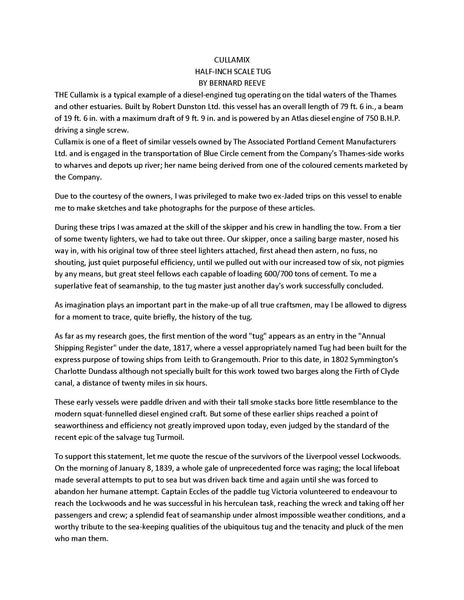

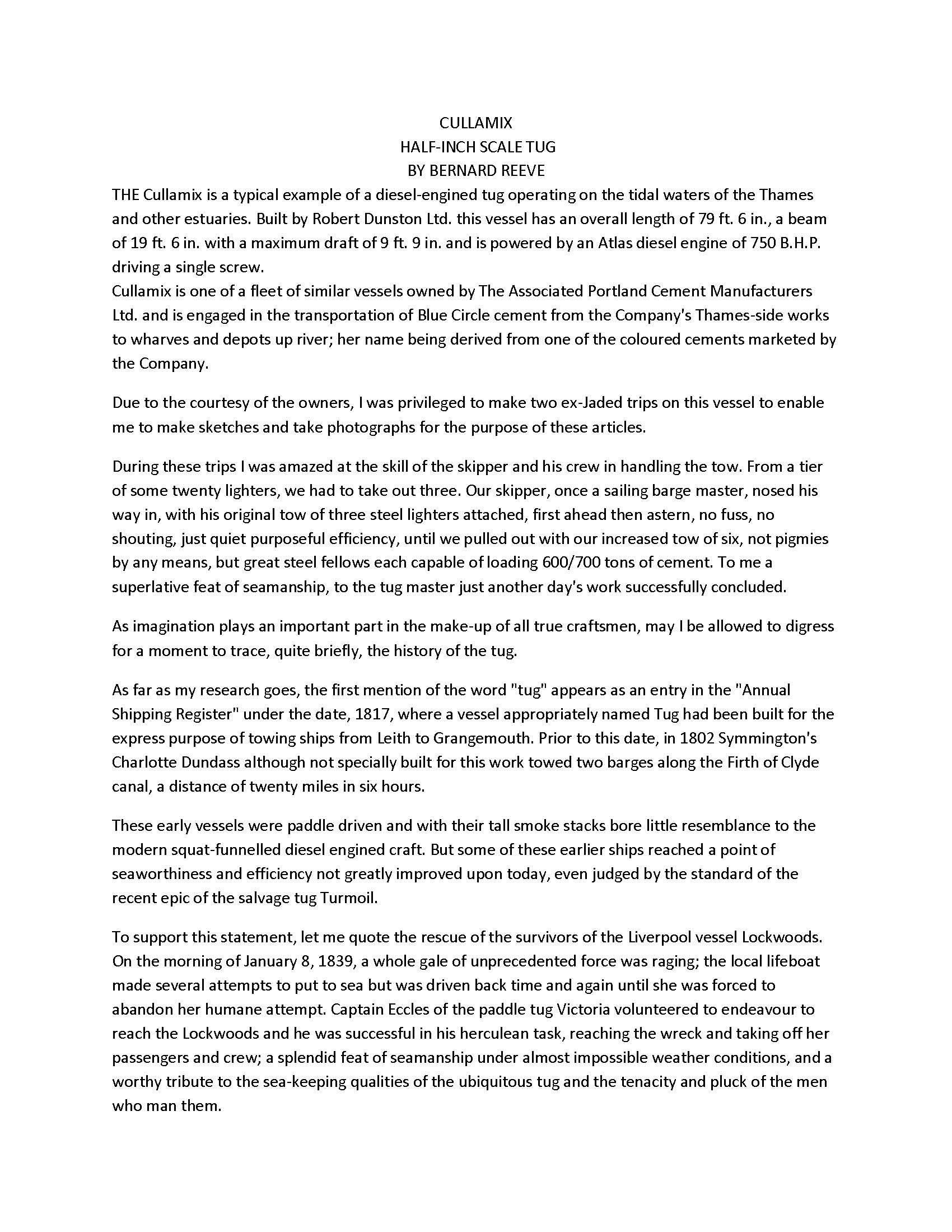

THE Cullamix is a typical example of a diesel-engined tug operating on the tidal waters of the Thames and other estuaries. Built by Robert Dunston Ltd. this vessel has an overall length of 79 ft. 6 in., a beam of 19 ft. 6 in. with a maximum draft of 9 ft. 9 in. and is powered by an Atlas diesel engine of 750 B.H.P. driving a single screw.

Thank you for looking Rose
