Listing is for very detailed Scale Drawings H.M.S. Starling Black Swan-class sloop

$69.95


Listing is for Scale Drawings

H.M.S. Starling

Five Scale Drawings

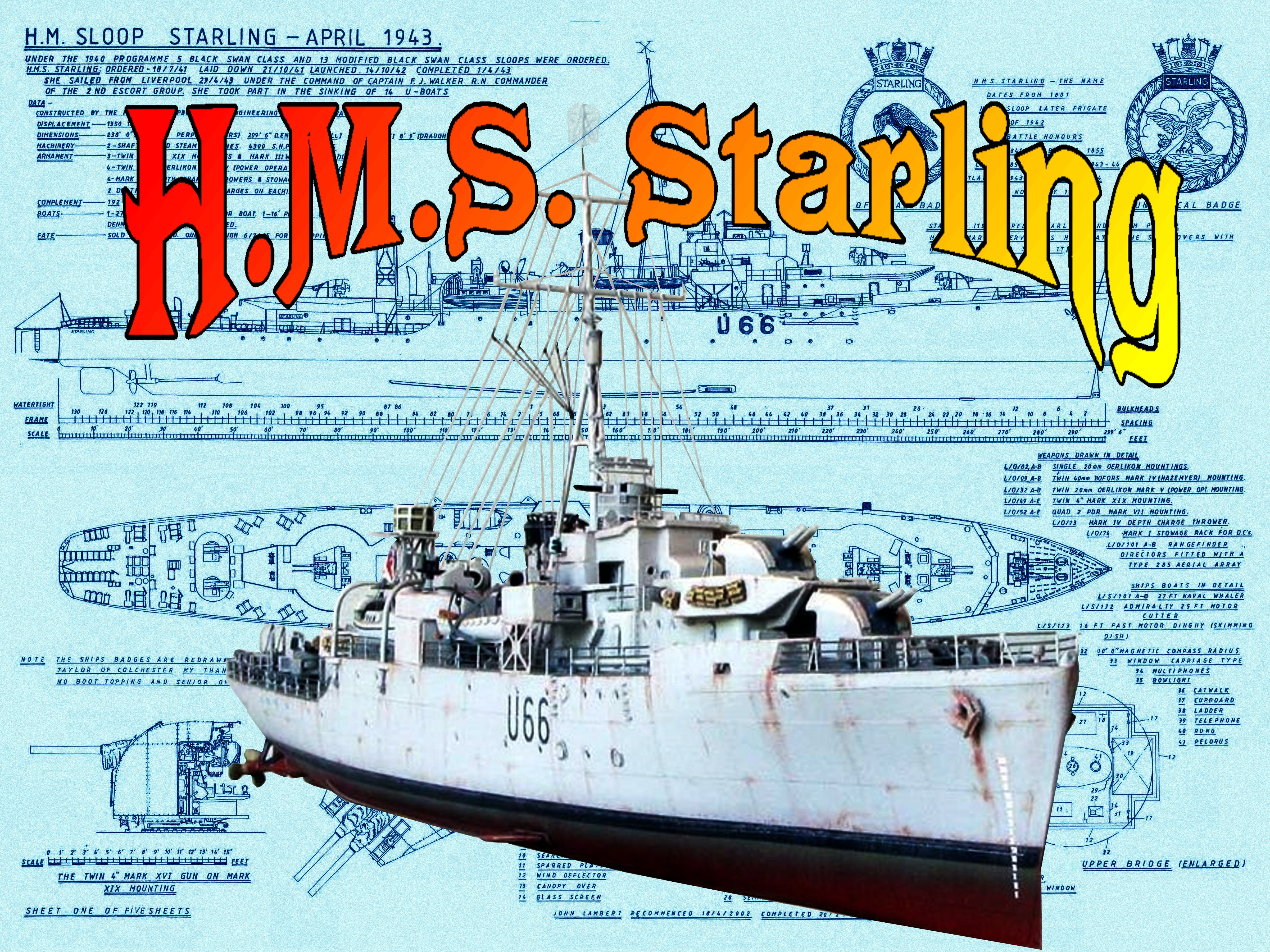

# 1 shows external G/A, two ships badges (official and unofficial), enlarged detail of open bridge and twin 4-in. Mark XIX mounting (7 drawings).
                                         Scale drawings on a Sheet 32" x 24"

# 2 rigging plan and sheer drawings (8 drawings).
                                         Scale drawings on a Sheet 32" x 24"

#3 fully detailed G/A in greater detail (5 drawings).
                                          Scale drawings on a Sheet 32" x 24"

#4 drawn at 1/8-in. per ft, shows 8 sections and detail (11 drawings).
                                         Scale drawings on a Sheet 32" x 24"

# 5 close detail, the twin 20 mm Mark V Oerlikon, two sketches of modifications 1944 and 1945 and post war details (8 drawings).

                                          Scale drawings on a Sheet 32" x 24"

Class and type: Modified Black Swan-class sloop

Displacement:1,350 tons

Length: 299 ft 6 in (91.29 m)

Beam: 38 ft 6 in (11.73 m)

Armament:6 × 4-inch (102 mm) AA guns (3 × 2) 4 × 2-pounder (40 mm) AA pom-poms 12 × 20 mm Oerlikon AA guns (6 × 2)

   HMS Starling, pennant number U66, was a Modified Black Swan-class sloop of the Royal Navy. She was built by Fairfield Shipbuilding and Engineering Company at Govan, Scotland, launched on 14 October 1942, and commissioned on 1 April 1943.

In the Battle of the Atlantic in World War II, Starling was the flagship of Captain Frederic John Walker's 2nd Support Group, a flotilla of six sloops not tied down to convoy protection, but free to hunt down U-boats wherever found.
