Ultra-simple to build 35" cabin cursier for Radio Control Full Size printed plan and building article

$14.95


Listing for full size Printed Plans

Not a KIT or MODEL

MOONGLOW

When running the prototype we noticed the ease with which it maintained a straight course. It is ultra-simple to build

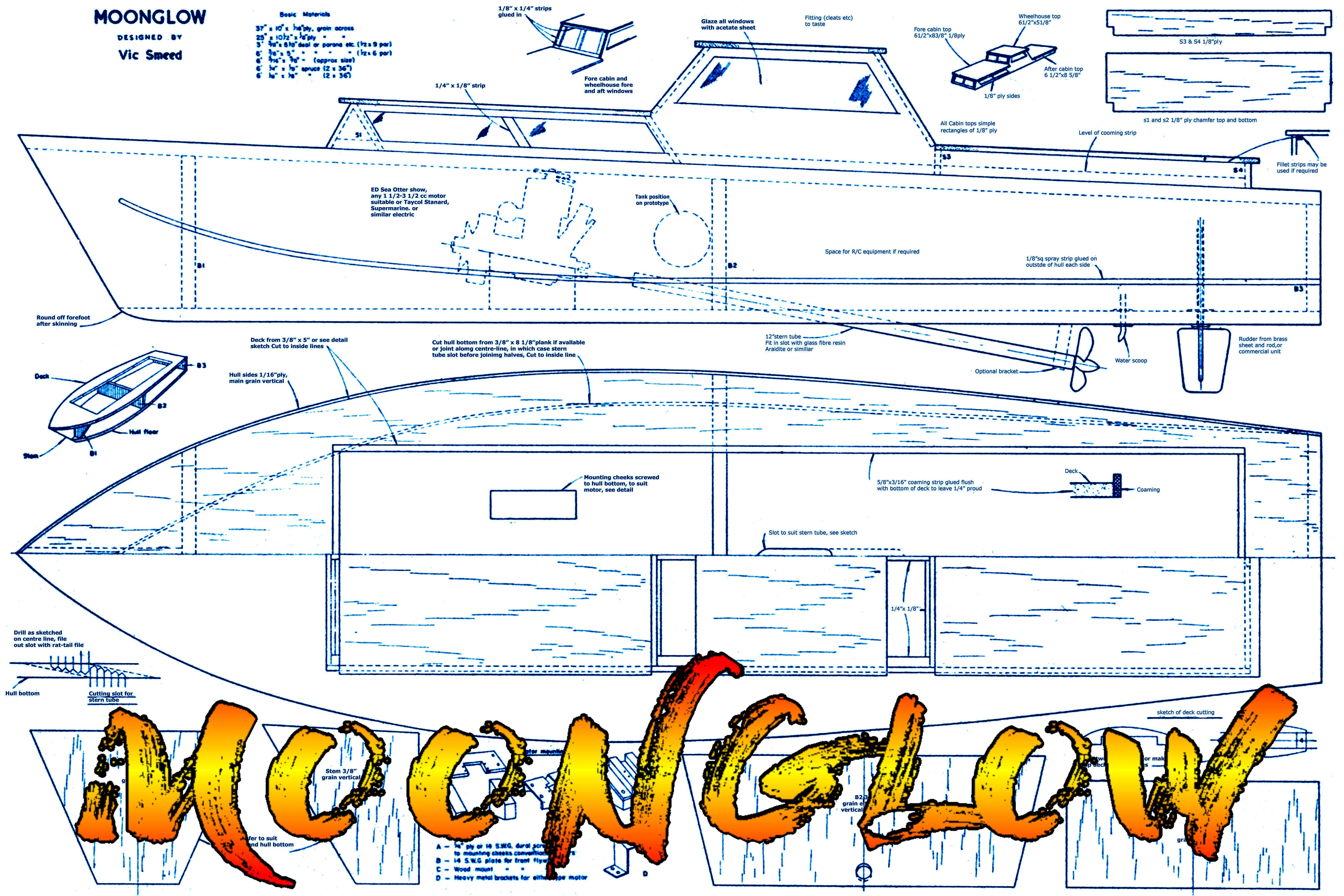

Full size printed plan on a sheet 36" x 24" 20lb bond

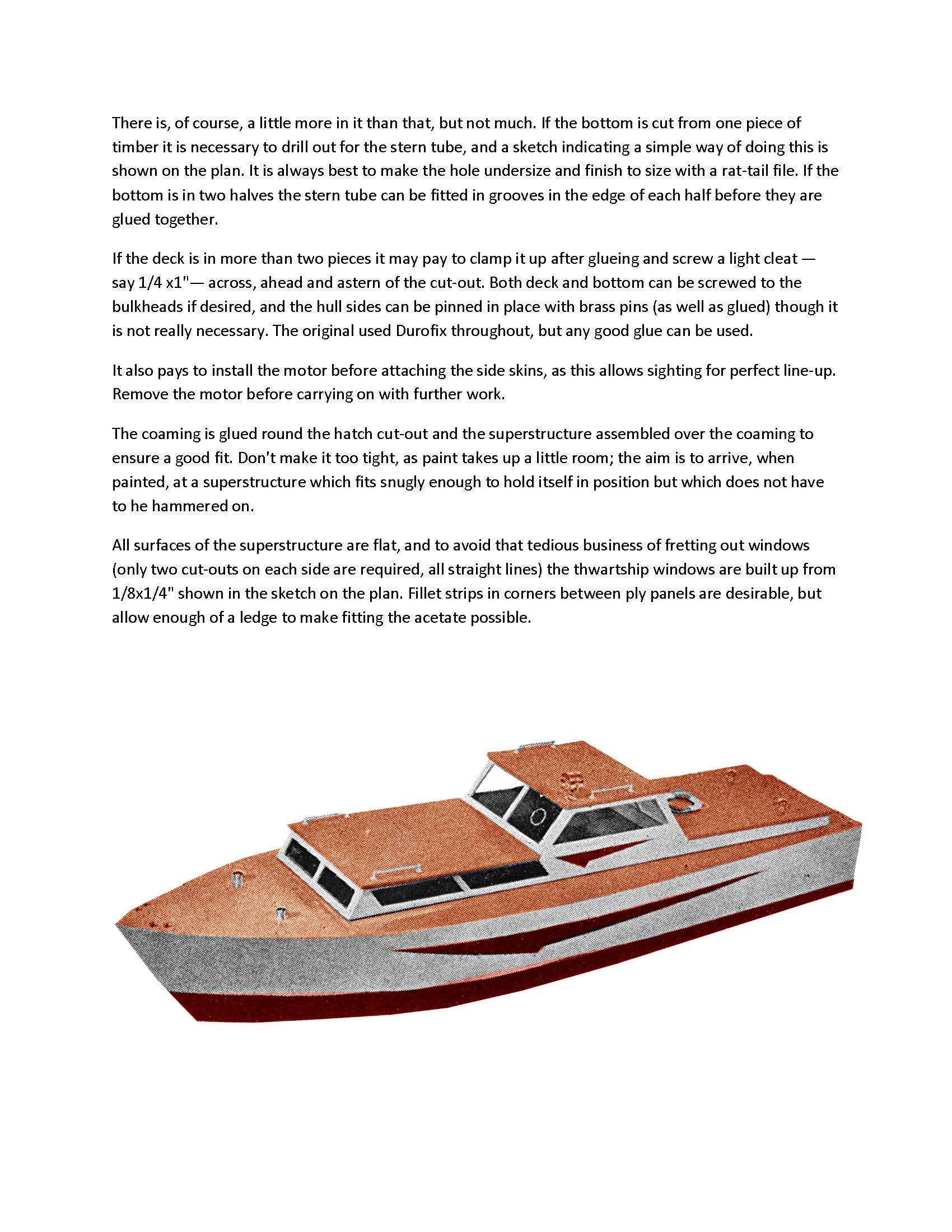

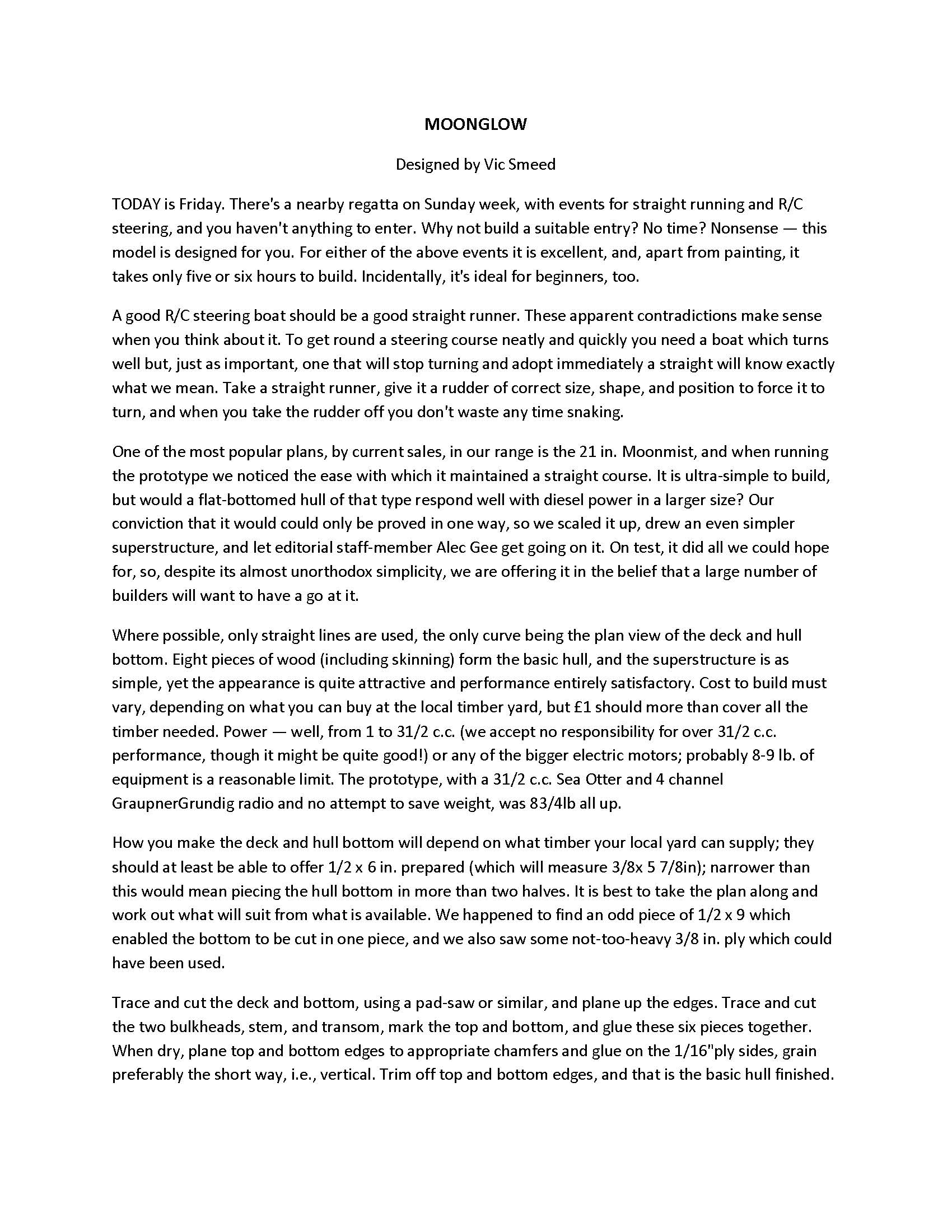

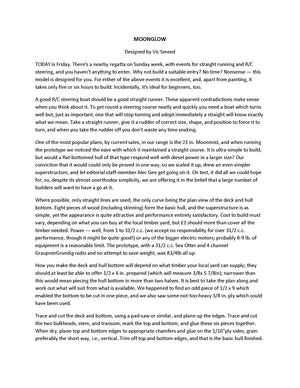

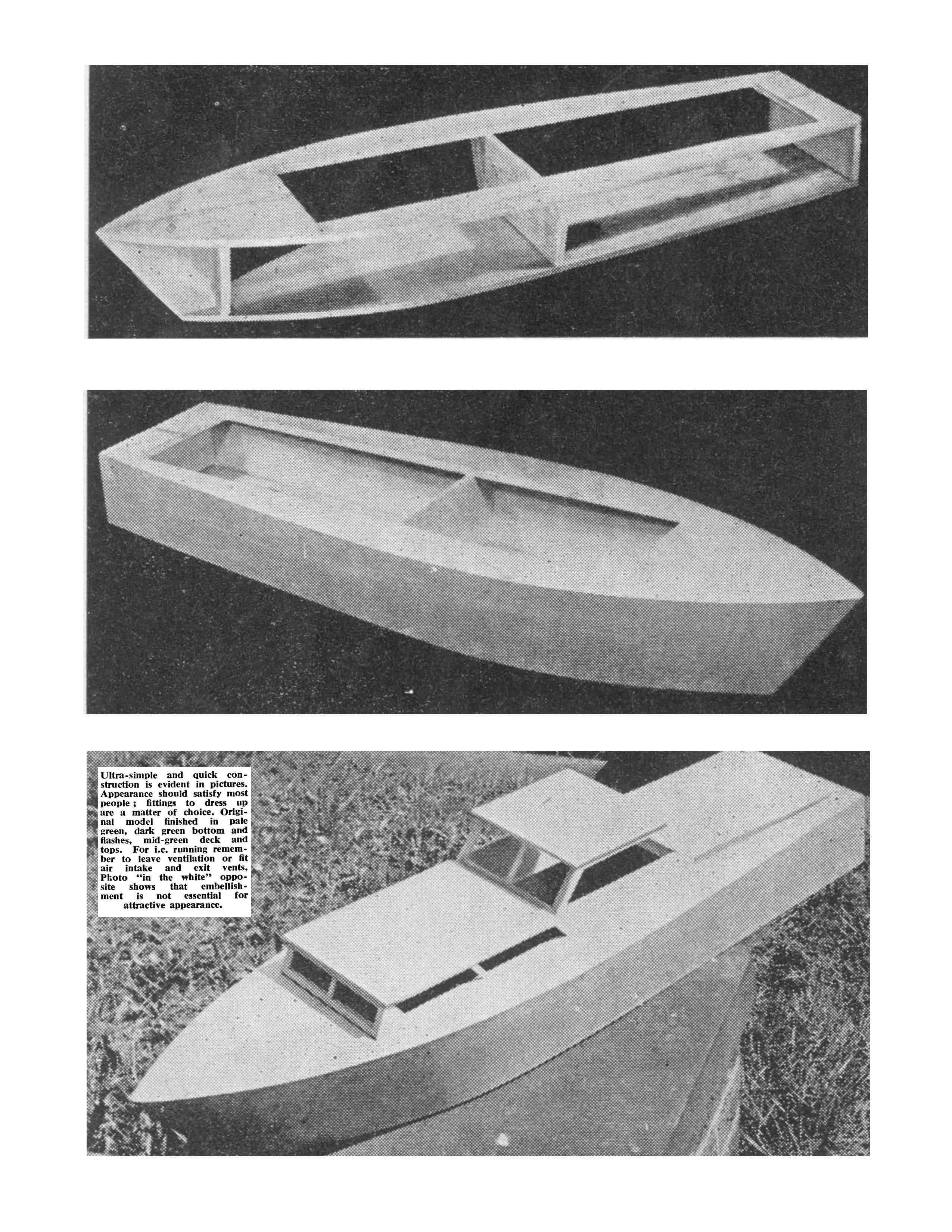

Three page article with building notes and photos

Length 35”

Beam 10”

Power Gas .09 to .21 or Electric motor

Radio Control

Designed by Vic Smeed

   Where possible, only straight lines are used, the only curve being the plan view of the deck and hull bottom. Eight pieces of wood (including skinning) form the basic hull, and the superstructure is as simple, yet the appearance is quite attractive and performance entirely satisfactory. Cost to build must vary, depending on what you can buy at the local timber yard, Power — well, from 1 1/2 to 3 1/2 c.c. (we accept no responsibility for over 3 1/2 c.c. performance, though it might be quite good !) or any of the bigger electric motors; probably 8-9 lb. of equipment is a reasonable limit. The prototype, with a 31/2 c.c. Sea Otter and 4 channel Graupner Grundig radio and no attempt to save weight, was 8 lb. all up.

Limited quantity

Thank you for Looking Rose
